Carrier for Nano & Xavier NX
  • Details
  • Specification
  • Order information
  • Rich I/O features
  • Size: 5.8 x 3.0" / 147 x 76mm
  • Input voltage: 12-24VDC
  • Operating Temperature: -25°C to +80°C

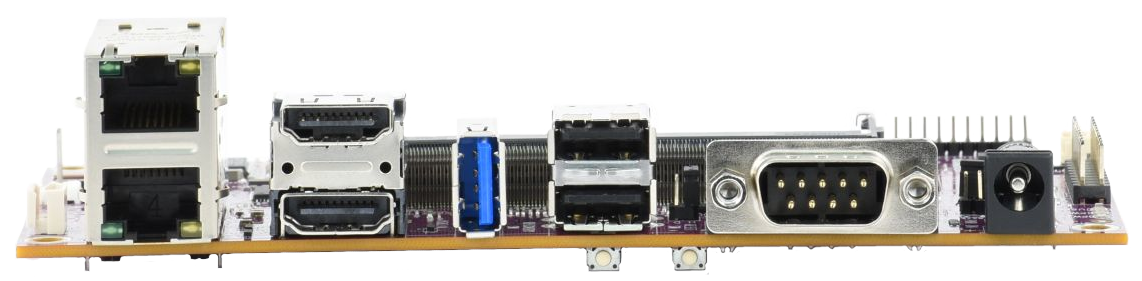

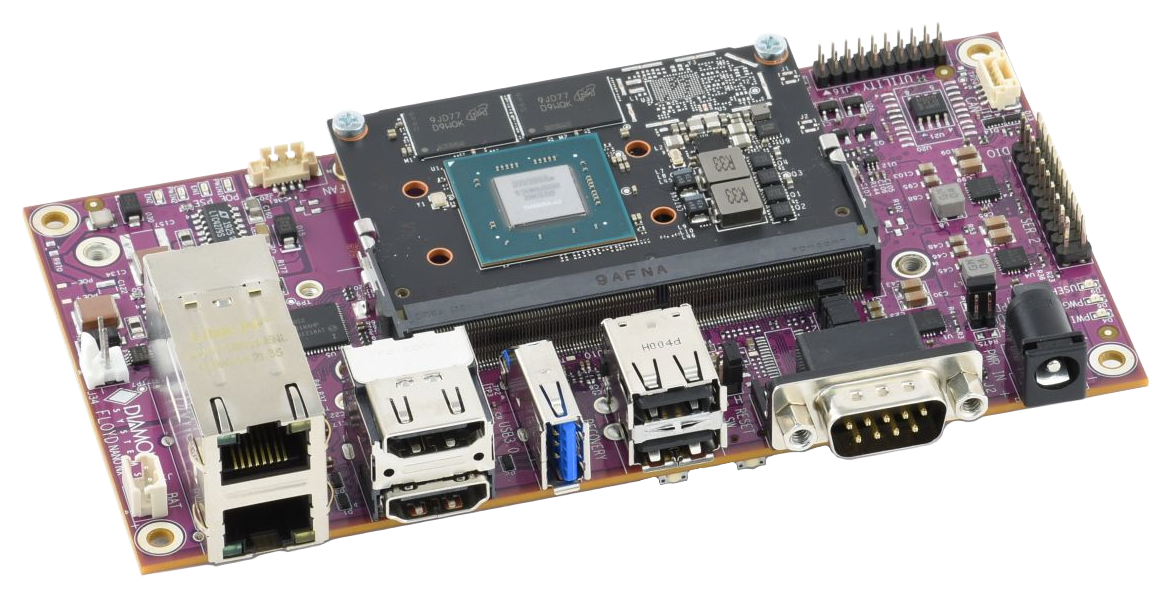

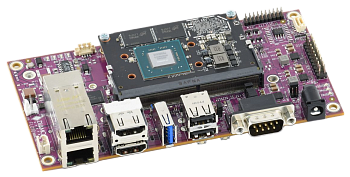

The Floyd carrier board converts the Nvidia Jetson Nano and Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O. Camera inputs include 2 PoE Gigabit Ethernet ports, 3 MIPI/CSI 2/4-lane connectors, and 1 USB 3.0 port. MiniCard, M.2, and Micro SD sockets support I/O expansion and storage. FLOYD + NVIDIA redefine possibility; the combination of Nvidia’s performance/power efficiency and Diamond’s I/O enables a new generation of high-compute, low-cost solutions.

Floyd’s multiple camera inputs provide increased versatility for use in a wide variety of imaging applications, which make up a substantial portion all Jetson applications today. As with all Diamond products, Floyd is designed and built for reliable performance and extended operating temperature to meet the full capabilities of the Jetson modules.

With the Xavier NX module installed, Floyd offers 1 CAN 2.0B port. The standard configuration is non-isolated; isolation is available as special order.

Floyd is supported by a full Linux BSP based on Nvidia Jetpack.

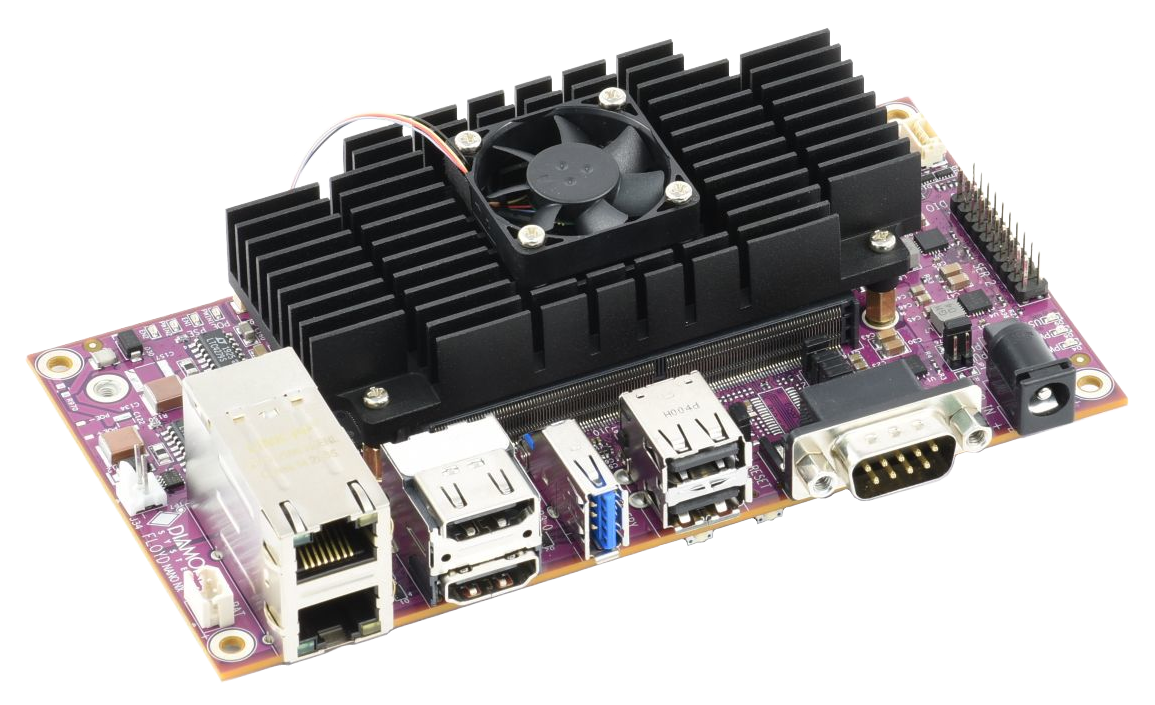

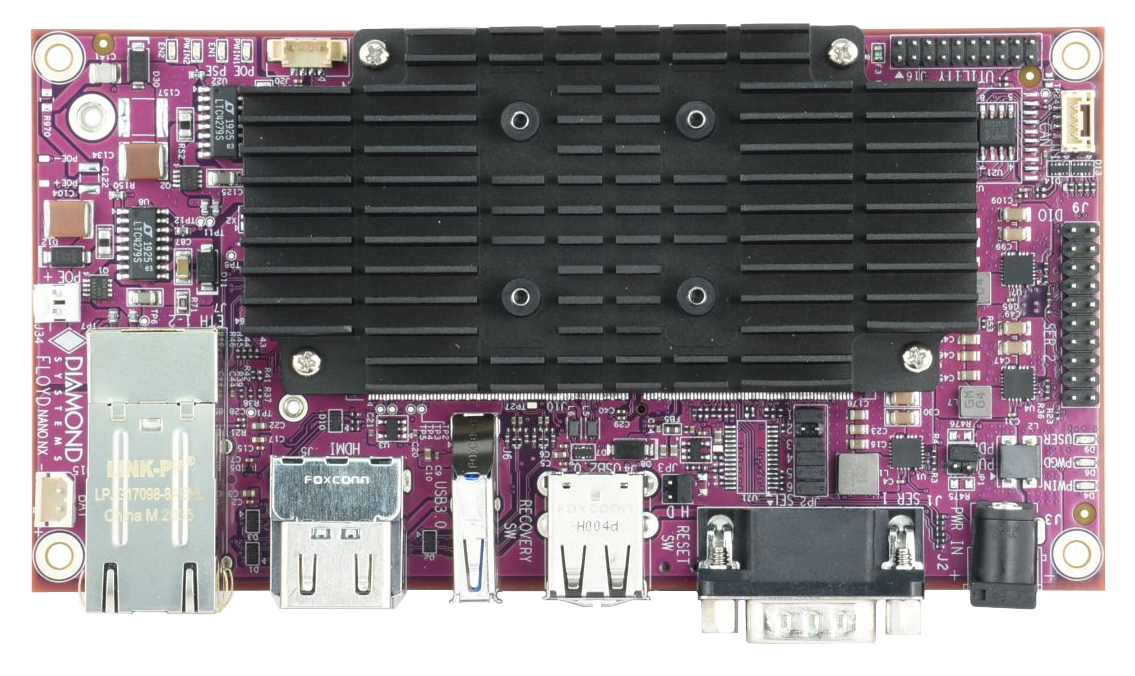

Complete System
Floyd is available as a complete system, with the Nano / NX module installed and preprogrammed with Diamond’s customized Linux OS for Jetson, all assembled into a sturdy steel and aluminum enclosure. The enclosure provides expansion options for 2 additional DB9 connectors (serial port, GPIO, and/or CAN) as well as up to two SMA type antenna connectors for an installed M.2 or Minicard module.

Product Configurations

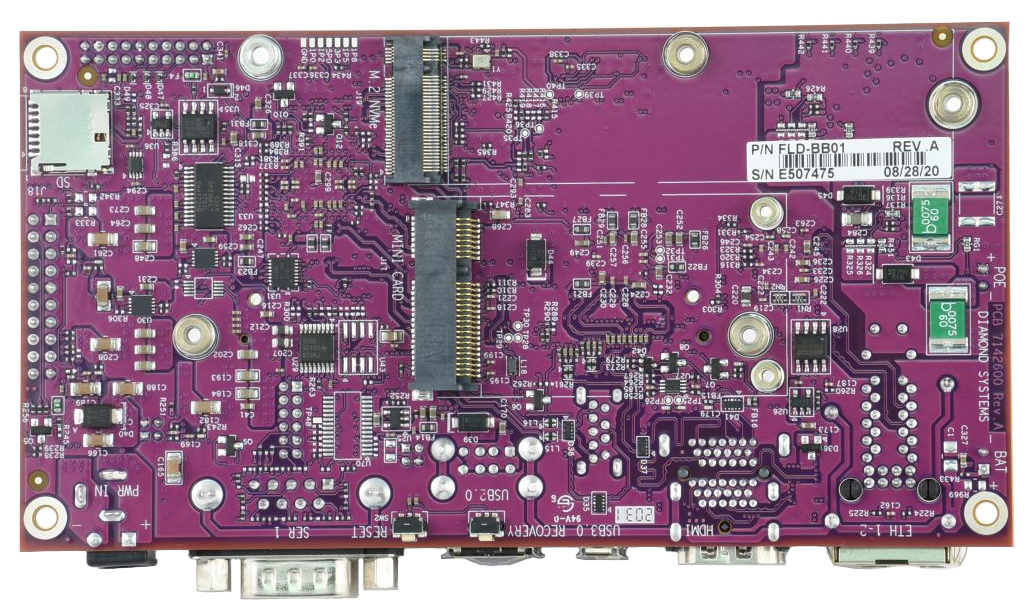

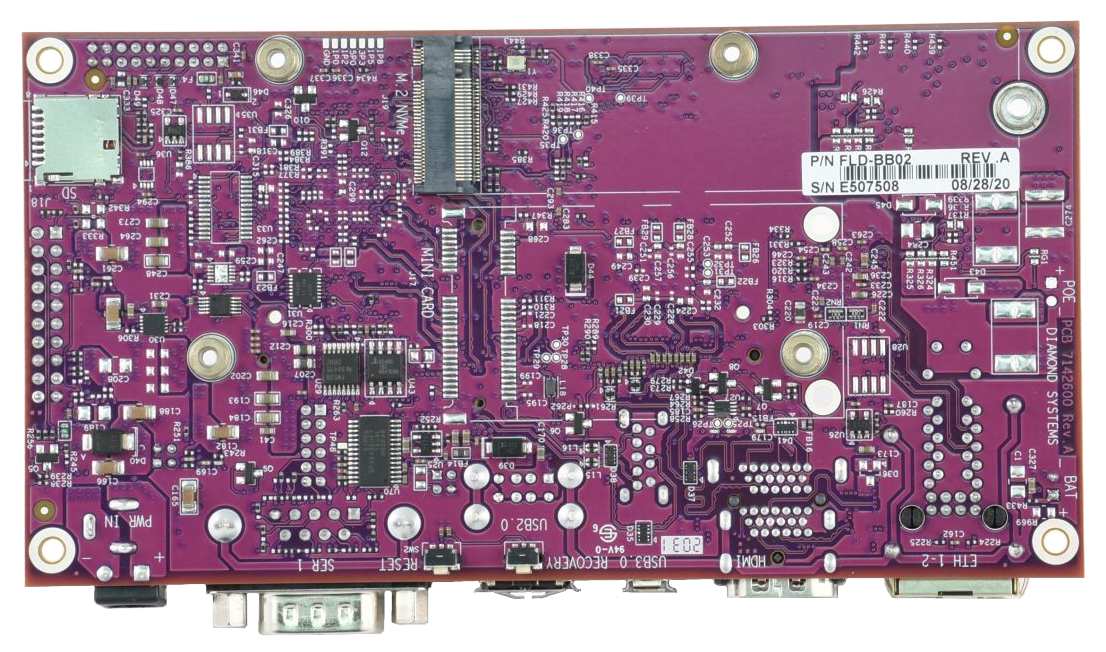

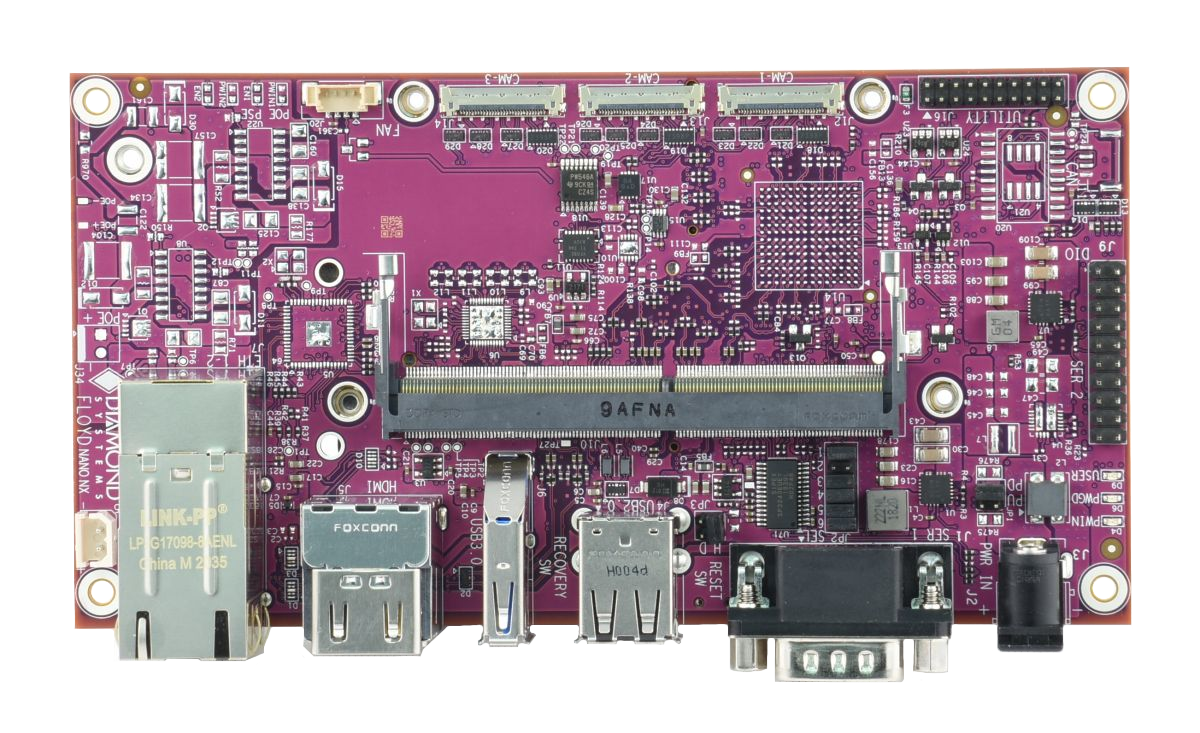

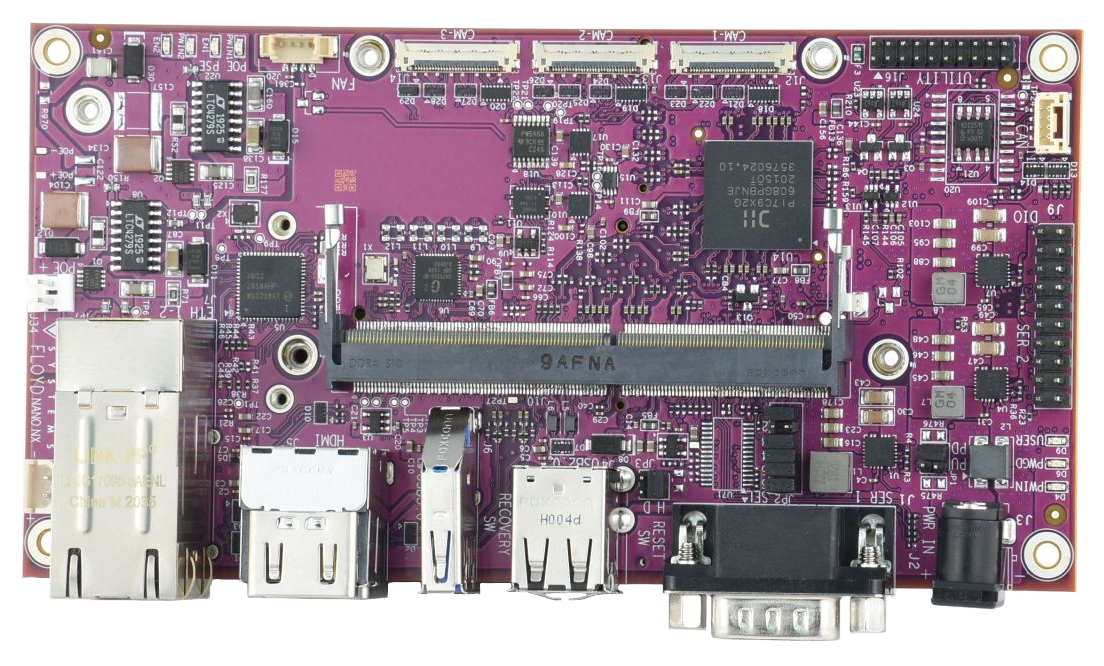

Floyd is available in two configurations: FLD-BB01 offers the complete suite of I/O features, while FLD-BB02 targets lower-cost applications requiring less I/O. The BB02 model also omits the PCIe switch needed for the BB01 additional I/O, thereby enabling a full PCIe x4 link to the M.2 socket for potentially higher flash memory read/write speeds.

Technical specifications
Gigabit Ethernet 1 or 2 gigabit Ethernet ports
HDMI 2 HDMI 2.0a/b ports
USB 3.0 1 USB 3.0 port with type A connector
USB 2.0 2 USB 2.0 ports with type A connector; 1 port can serve as OTG
GPIO 8 GPIO with 3.3V logic levels
Serial 2 serial ports with RS-232/422/485 (depending on model)
MIPI/CSI 3 dual/quad lane MIPI/CSI camera ports
CAN 1 CAN port (NX module only)
Mini PCIe 1 Mini PCIe socket with PCIe and USB support
Storage 1 M.2 2280 PCIe x1 or x4 NVME socket
PoE Optional PoE+ support (with external power source)
Input voltage 12-24VDC
Size 5.8 x 3.0" / 147 x 76mm

Environmental and physical specifications

Operating Temperature -25°C to +80°C (same as Jetson Nano / NX)
Model Description
FLD-BB01 FLOYD carrier board for Jetson Nano and Jetson Xavier NX module
FLD-BB02 Floyd baseboard, low-cost model with reduced I/O
JB-FLD-BASE-01 Jetbox Floyd kit, based on BB01 baseboard; includes all items except Nano / NX module and software
JB‑FLD‑BASE‑02 Jetbox Floyd kit, based on BB02 baseboard; includes all items except Nano / NX module and software
6981182 CANbus 2.0 dual port cable
C-DB9M-2 Serial port cable, 2x DB9M to 2x10 .1" socket
