Carrier and Dev Kit for NVIDIA Jetson AGX Orin
  • Details
  • Specification
  • Order information
  • All I/O features of the Orin module and numerous sockets for I/O expansion
  • Commercial to industrial to airborne to rugged military use
  • Dimensions: 120 x 115mm / 4.7 x 4.5”
  • Operating temperature: -25°C to +80°C

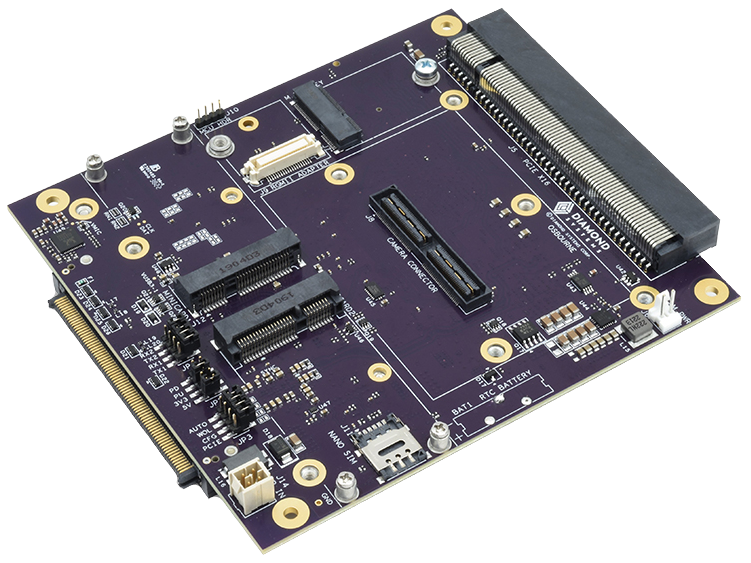

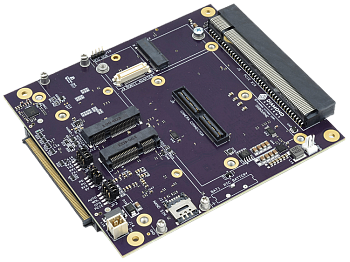

Osbourne is a versatile carrier board for the NVIDIA Jetson AGX Orin high-performance GPU module. It provides access to all I/O features of the Orin module and includes numerous sockets for I/O expansion. Osbourne has been designed to be used in almost any application ranging from commercial to industrial to airborne to rugged military use.

Key highlights of Osbourne include:

  • Industry-standard camera adapter socket for use with a wide range of CSI, GMSL, and other cameras
  • 10Gb Ethernet + 1GB Ethernet ports
  • Wide temperature operation — matching the range of the Orin module
  • Dual minicard sockets with PCIe and USB interfaces
  • Dual M.2 sockets for flash memory (M key 2242/2280) and network connectivity (E key 2230)
  • I/O concentrator connector enables use with standard and custom I/O breakout boards

Osbourne is available as a carrier board alone or with an Orin module and fan sink installed and ready for use. A Linux OS based on Nvidia L4T and customized to support all I/O on Osbourne is available for free download.

Flexible I/O Connector Design

All I/O on Osbourne is accessed through a single high-speed, high-density connector along the board edge. This decouples the board design from any specific I/O connector arrangement and frees you to select whatever I/O connector scheme you want. Standard connector boards are available for typical use cases, including a panel-mount connector board for installation in an enclosure and a breakout board for use with cables.

Panel I/O Board

The Panel I/O board provides the ability to install Osbourne directly into an enclosure without the use of cables. All I/O is provided on a series of commercial-style connectors designed to be mounted in an enclosure front panel. Panel I/O boards can also be designed with right-angle orientation.

I/O Expansion

Osbourne includes dual PCIe minicard sockets with both PCIe and USB interfaces, supporting a wide range of I/O and communications/networking modules from Diamond as well as third party vendors. It includes an M.2 E key socket for installation of WiFi and other networking modules.

Mass storage is provided with an M.2 2242/2280 NVME socket and a Micro-SD card socket.

Technical specifications
USB 3x USB 3.2 ports
4x USB 2.0 ports
Ethernet 1x 1G/2.5G/5G/10G Multi-Gigabit Ethernet port
1 10/100/1000Mbps Ethernet Port
CSI 4 x4 or 8 x2 lane CSI-2 camera Interface using industry-standard adapter socket
Serial 2x software configurable RS-232/422/485 ports with TTL option on one port
2x fixed RS-232 ports
HDMI 1x HDMI 2.0a/b directly from Orin module
Audio Audio I/O via ALC5640 CODEC
Digital I/O 8 Digital I/O via I2C I/O expander
CAN 2x CAN 2.0 ports with non-isolated transceivers
mPCIe 2x mPCIe full-size sockets with PCIe and USB support
Storage 1 M.2 M Key (2280 or 2242) NVMe expansion slots (4 lane PCIe Gen 3)
1 M.2 E key 2230 socket
Power input 7-20VDC
Dimensions 120 x 115mm / 4.7 x 4.5” (Carrier board only)

Environmental and physical specifications

Operating Temperature -25°C to +80°C (same as Orin module)
Model Description
OSB-BB01 Osbourne carrier board for NVIDIA Jetson AGX Orin
OSB‑ORIN32‑FS‑01 Osbourne carrier board with Orin 32GB module installed, OS loaded, fan sink
