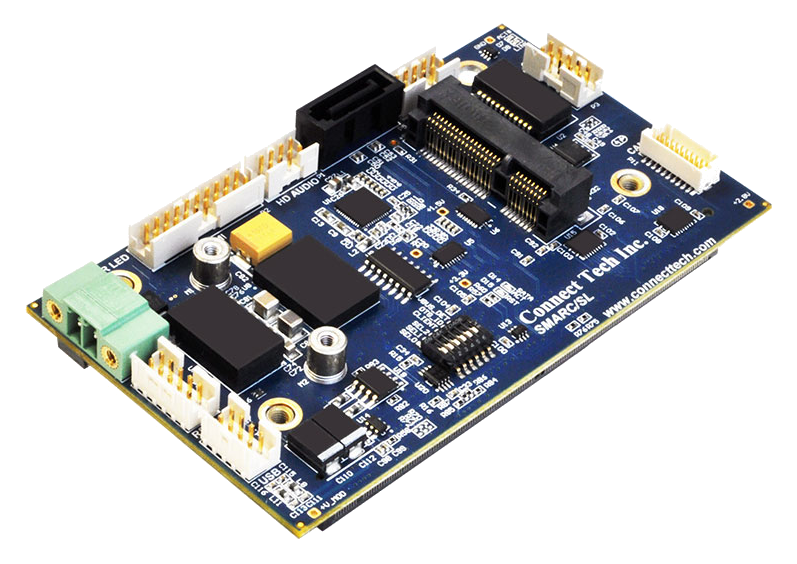

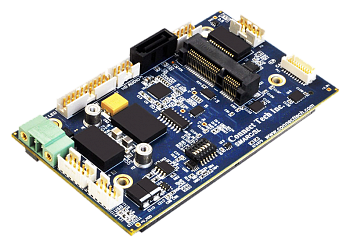

SMARC/SL
Super small SMARC carrier board
Vendor:Connect Tech
- Details
- Specification
- Order information
- HDMI, SATA, 2-Lane MIPI CSI Camera Interface
- External SATA/mSATA Switching Circuitry
- Dimensions: 100mm x 57.5mm (3.937” x 2.264”)
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s SMARC/SL is a super small SMARC carrier board ideal for your low power application. SMARC/SL has the ability to use both +3.3V and +1.8V SMARC Modules, a single Mini-PCIe/mSATA with External SATA switching, Gigabit Ethernet, HDMI Video, and MIPI CSI Camera interface.
SMARC/SL supports an extended temperature range of −40°C to 85°C and offers a very small footprint; ideal for mobile or stationary applications.
| Technical specifications | |
| Compatibility | SMARC V1.1 |
| Mini PCIe/mSATA | 1x Mini-PCIe/mSATA Half or Full Size |
| Storage | 1x SATA 2.0 Port |
| Display | 1x HDMI |
| Serial | 1x RS-232 |
| USB | 2x USB 2.0 |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| SD Card | 1x microSD |
| Audio | 1x HD Audio Input, 1x HD Audio Output |
| Video Input | 2-Lane MIPI CSI Interface |
| Power Requirements | +6V to +36V DC Input |
| Dimensions | 100mm x 57.5mm (3.937” x 2.264”) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| SRG001 | SMARC/SL Carrier Board with MIPI CSI-0 Camera Interface |
| SRG002 | SMARC/SL Carrier Board with MIPI CSI-1 Camera Interface |
| CKG034 | Cableset for SMARC/SL |
| CBG079 | SATA HDD Signal Cable |
| CBG104 | Dual USB 2.0 to 8-Pin MiniTek Cable |
| CBG117 | RJ-45 to 10-Pin MiniTek Cable |
| CBG118 | Dual Audio to 8-Pin MiniTek Cable |
| CBG127 | DB9 to 10-Pin MiniTek Cable |
| CBG134 | 10-Pin MiniTek System Cable |
| CBG145 | HDMI Female to 20-Pin MiniTek Cable |
| CBG185 | MIPI-CSI 2-Lane Camera 20-Pin Hirose to Flying Lead Cable |
