Spacely
Carrier board for NVIDIA Jetson TX2/TX2i
Vendor:Connect Tech
- Details
- Specification
- Order information
- Connect up to 6 MIPI CSI-2 Camera Inputs
- Tailored I/O for easy connection to Pixhawk Autopilot
- Dimensions: 125mm x 95mm
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

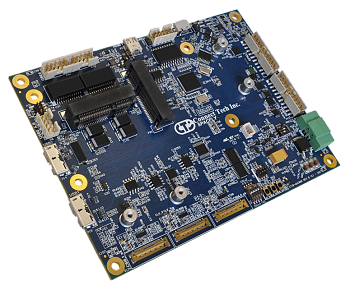

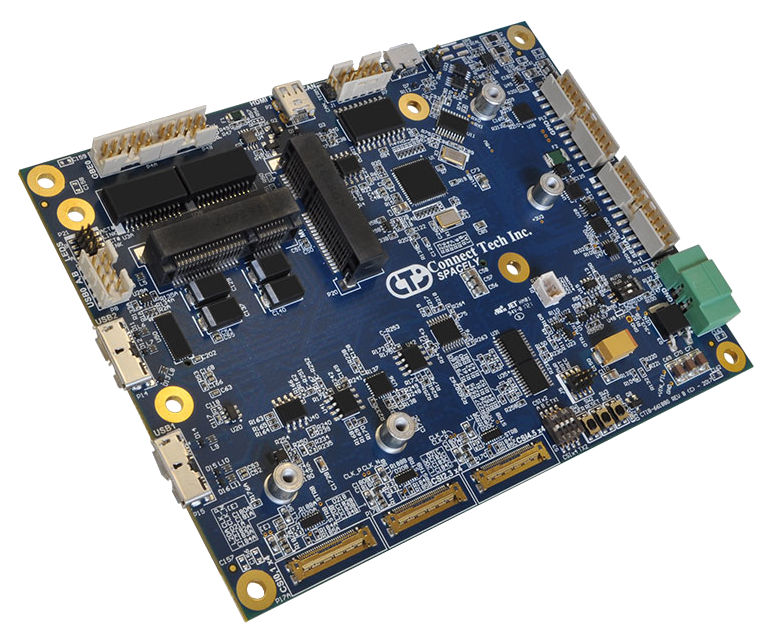

Connect Tech’s Spacely Carrier for NVIDIA Jetson TX2/TX2i is an ideal product for unmanned vehicle applications, or any application where situational awareness is critical. Spacely enables users to simultaneously connect up to 6 MIPI CSI-2 cameras as well as offering built-in expansion for a GPS/GNSS module.
This carrier includes a multi-I/O port specifically designed to allow easy connection to OEM Autopilots such as the Pixhawk. Other onboard interconnects include 2x GbE, 1x HDMI, USB 3.0, USB 2.0, USB CLIENT, as well as miniPCIe and mSATA expansion.
| Technical specifications | |
| Compatibility | NVIDIA Jetson TX1/TX2/TX2i |
| Network | 2x Gigabit (10/100/1000) Ports |
| Display | 1x HDMI, Supports up to HDMI 2.0 UHD 4K [2160p] at 60Hz |
| Camera Inputs |
6 x2 Lane MIPI CSI-2 OR 3 x4 Lane MIPI CSI-2 |
| USB | 1x USB 2.0 to miniPCIe Slot, 1x USB CLIENT, 2x USB 2.0, 2x USB 3.0 |
| Storage | 1x microSD Card Slot, 1x mSATA Full Sized Slot |
| UART Type | 2x 3.3V from TX2/TX1 UART0 and UART1 |
| I2C | I2C Channel 1 @ 3.3V IO |
| CAN | 1x CAN 2.0b Port |
| GPIO | 16 bits of 3.3V (level shifted GPIO) |
| SPI | SPI Channel @ 3.3V IO |
| Optional Sensor Expansion | 1x GPS/GNSS Module (optional) |
| Expansion | 1x miniPCIe Slot with PCIe, USB + SIM |
| LEDs | GbE LEDs, PWR, S3# |
| Power Requirements | Wide Input +12V to +22V DC |
| Dimensions | 125mm x 95mm |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ASG006 | Spacely Carrier for NVIDIA® Jetson™ TX2/TX2i/TX1 |
| ASG009 | Spacely Carrier for NVIDIA® Jetson™ TX2/TX2i/TX1 with u-blox NEO-M8L GNSS and 3D Sensors |
| XHG301 | TX2/TX1 Passive Heat Sink |
| XHG302 | TX2/TX1 Active Heat Sink |
| MSG080 | Power Supply for ASG006 / ASG009 |
| CKG045 | ASG006 Cable Kit |
| CBG104 | Mounting brackets |
| CBG116 | 20-pin Minitek to Flying Leads |
| CBG117 | 10-pin Minitek to GBE |
| CBG136 | CR2032 RTC Battery w/ 3-pin Connector Cable Assembly - 6032101013 |
| CBG162 | External I/O cable for ASG009 |
| CBG163 | R.FL to SMA Female Cable for ASG009 |
| CBG190 | 10-pin Minitek to flying Lead Cable optional CANbus cable |
| CBG191 | CAN Bus (DB-9 Male) to 10-Pin MiniTek (P7) |
| CBG247 | USB Type A to Micro USB Type B |
| CBG307 | Micro USB3.0 B to micro USB3.0 B |
