PCI to PC/104-Plus Adapter

• Compatible with standard Universal, 3.3V or 5V PCI slot
• PCI-104 120 pin stack‑through connector, PC/104 64 and 40 pin passive stack-through connectors
• +5V input for PCIe/104 add-in card
• Measures 4.913” wide by 4.200” hig
• Operating temperature: up to -40°C to +85°C (-40°F to +185°F)

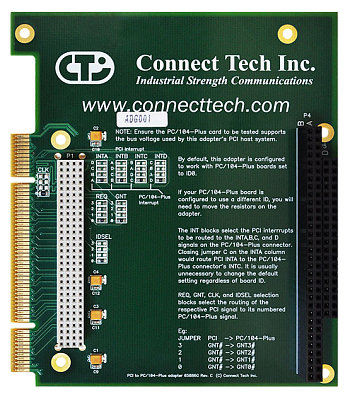

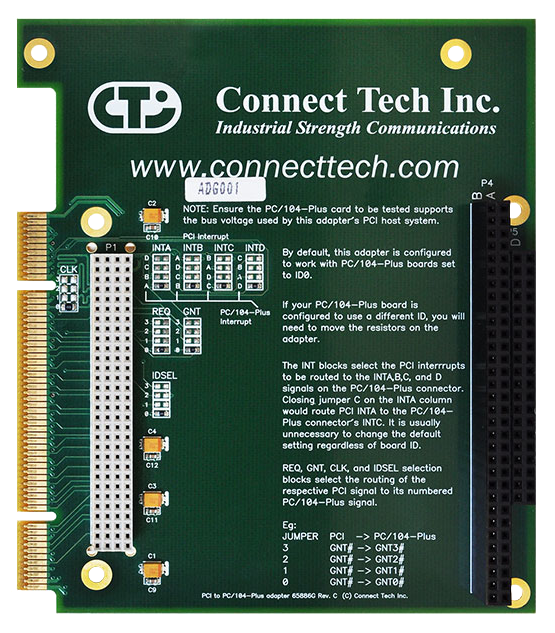

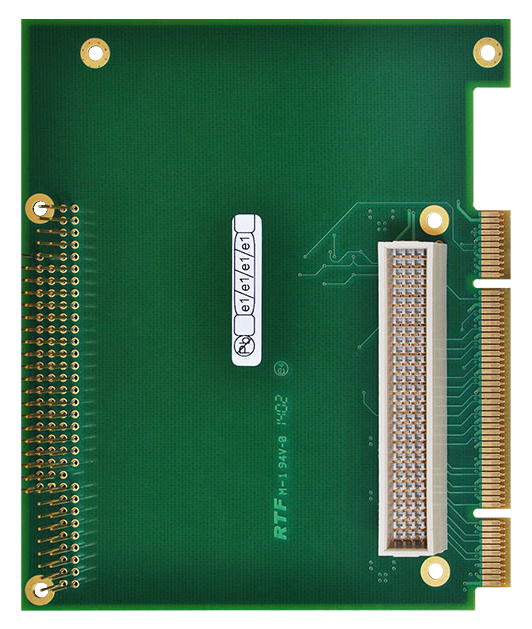

This passive extender card allows developers to mount a PCI-104 or PC/104-Plus card into a Universal PCI bus system. The adapter is equipped with a stack-through connector so the test card can be installed on either side (model ADG001), enabling probing on the front or the back. The design also allows cables to exit from the host PC for easy connection to external devices.
