ADG010

PCI Express (PCIe) Burn-in Rack Adapter
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • Burn-in up to 10 PCI Express cards with lane widths from x1 to x16 in any combination
  • Front-located test points for easy measurement of both +3.3V and 12V rails
  • Quick verification of power conditions and lane widths via on board LEDs
  • RoHS compliant

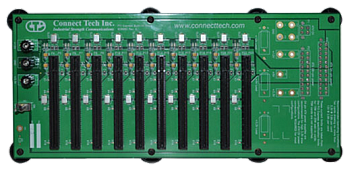

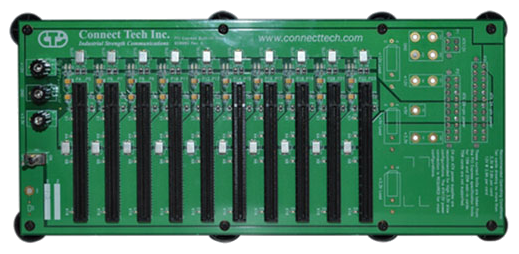

This circuit board allows the burn-in of up to 10x 15W or 25W PCI Express cards simultaneously without the need for a dedicated computer system.

Thick copper construction maintains low temperatures even for very high loads, while individually fused and filtered slots protect boards from surges.

Binding posts are included to allow the connection of monitoring equipment, bench power supplies or a DMM.

Technical specifications
Power Requirements ATX power – 20 and 24 pin options (on/off switch control),
Optional: Binding posts to allow the connection of a bench power supply
Dimensions Length: 31.5cm/12.4” Width: 13.97cm/5.5”
Model Description
ADG010 PCI Express (PCIe) Burn-in Rack Adapter
