PCI-104 to PMC Adapter
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • PCI-104 and PC/104-Plus compatible
  • PCI-104 120-pin stack-through connectors
  • Two 64 pin passive PMC connectors
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

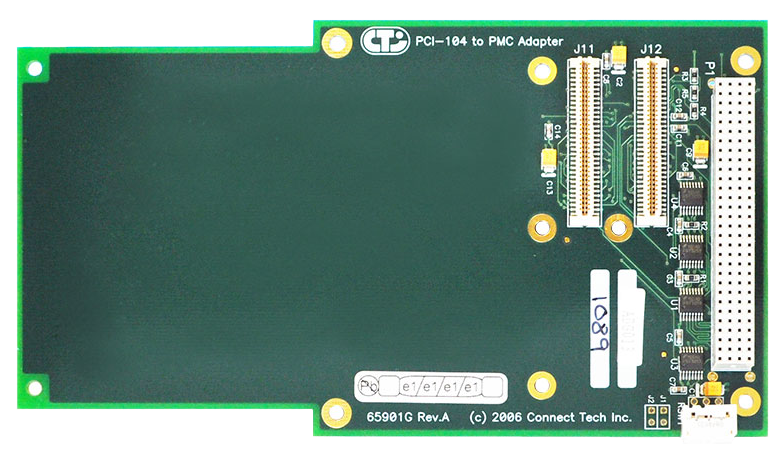

This convenient adapter board allows PMC cards such as an IEEE 1386.1 card to be easily incorporated into an existing PCI-104 stack.

The design includes signal multiplexing circuits, allowing multiple PMC cards to operate in a PCI-104 stack using multiple adapters simultaneously.

Constructed with GND and Power Planes, this adapter has exemplary signal integrity and low DC resistance.

Standard Usage
Simply mount the PMC card to the adapter, set the PCI-104 slot selector switch and place into the host system’s PCI-104 stack.

Technical specifications
Compatibility PCI-104 and PC/104-Plus compatible (mechanically configured for mounting PMC cards)
PCI-104 connectors PCI-104 120 pin stack-through connectors
PMC connectors Two 64 pin passive PMC connectors
Slot selector switch Slot selector switch for PCI-104, “slot assigned”
Voltage keying Mounting and voltage-keying holes for PMC card
Dimensions 165.76 x 90.17 mm (6.526” x 3.550”)

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
RoHS Compliant
Model Description
ADG013 PCI-104 to PMC Adapter
