ADG016
PCI Express to PCIe/104 Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- PCIe/104 156-pin connector
- x1 lane PCI Express card edge allows installation in any slot width
- Complies with PCI Express 1.1 electromechanical requirements
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

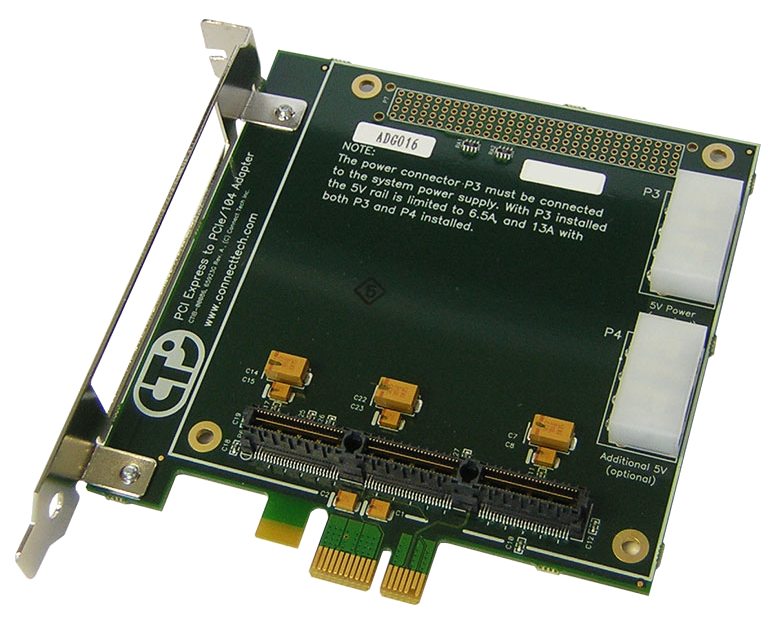

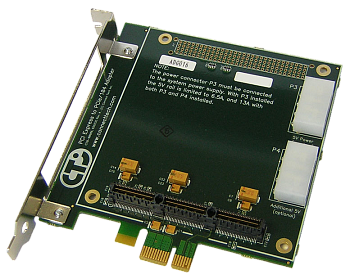

This convenient adapter board allows users to install a PCIe/104 card into a standard PCI Express system slot.
Standard Usage
This adapter supports any x1 lane PCIe/104 add-in card. Simply mount the add-in card to the adapter and install the adapter in a PCI Express slot. Most PCIe/104 cards will require the connection of an IDE power cable to the P3 connector on the card. This cable provides the 5V rail to the add-in card.
Once everything is connected, you may begin using the add-in card just as you would any other PCI Express add-in card. No additional configuration is required.
| Technical specifications | |
| Connectors | PCIe/104 156 pin connector, x1 lane PCI Express card edge |
| Compliance | Complies with PCI Express 1.1 electromechanical requirements |
| Dimensions | 111.13 x 102.87 mm (4.375" x 4.050") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG016 | PCI Express to PCIe/104 Adapter |
