ADG039
SUMIT to PCIe/104 Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Compatible with Type-1 or Type-2 SUMIT-104 systems
- Access to additional auxiliary SUMIT-104 signals
- Optional: 2 x USB (from SUMIT) via Mini USB connectors
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

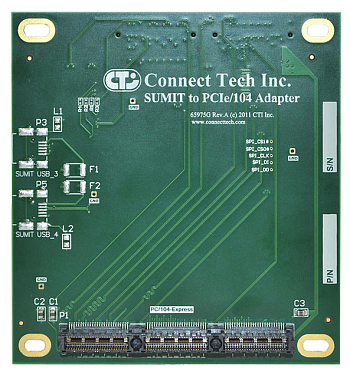

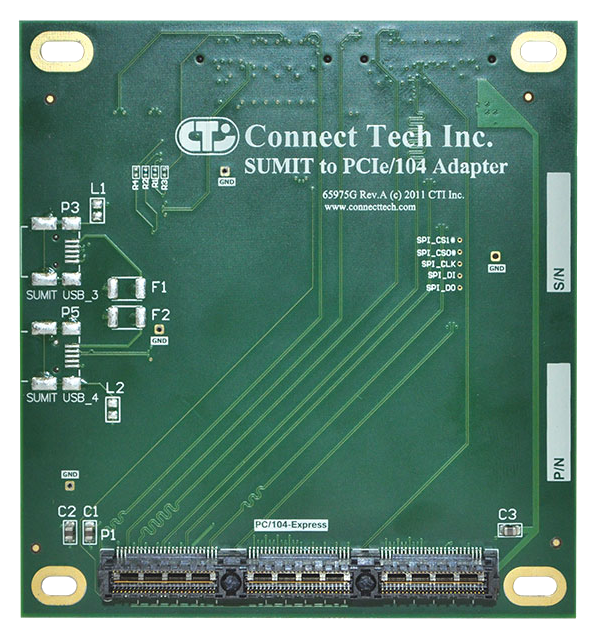

Connect Tech’s SUMIT to PCIe/104 Adapter allows for easy integration of PCIe/104 or PCI/104-Express cards into an existing SUMIT-104 system.
The SUMIT to PCIe/104 Adapter is fully compatible with any Legacy Type-1 or Type-2 SUMIT‑104 system, and allows x1 and x4 lane PCIe/104 or PCI/104-Express peripherals to be used with SUMIT cards in a SUMIT‑104 stack.
Additional signals available on the PCIe/104 bus include SMbus and 2 x USB. Additional accessible signals include 2 x USB ports via on-board Mini-USB connector (optional).
| Technical specifications | |
| Bus Connectors |
SUMIT A and B PCIe/104 x 1 |
| Optional Features | 2 x USB (from SUMIT) via Mini USB connectors |
| Dimensions | 95.885mm x 90.17mm (3.775" x 3.550") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG039 | SUMIT to PCIe/104 Adapter |
