ADG040-041
PCIe/104 to PCI Express Cable Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Compatible with PCIe/104 and PCI/104-Express
- PCI Express Cabling Specification 1.0 Compliant
- Optional configurable PCIe signal repeater to support longer cable lengths
- Operating temperature: -20°C to +85°C (-4°F to +185°F) (max.)

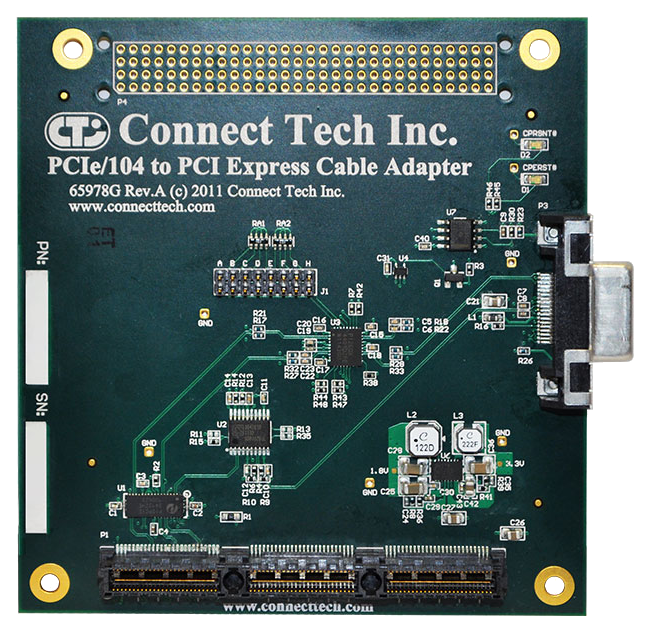

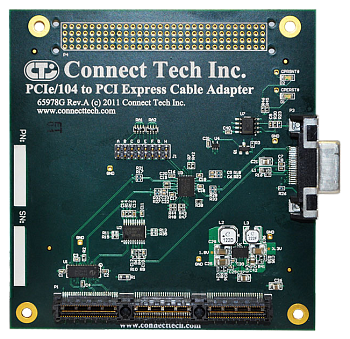

Connect Tech’s PCIe/104 to PCI Express Cable Adapter provides an interface from the PCIe/104 (PCI/104‑Express) bus to a PCI Express cable connection.
The adapter is completely transparent to the PCI Express bus and allows the use of a PCI Express device outside of the PCI/104-Express system stack.
| Technical specifications | |
| PCIe Lane Interconnect | x1 PCIe/104 lanes can be connected via PCI Express cable |
| Connectors |
PCI-104 pass-through connector (optional), PCI-104/Express 156 pin top and bottom connectors, PCIe Cable connector (molex 74150-001) |
| Dimensions | 95.885mm x 90.17mm (3.775" x 3.550") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
ADG040: -20°C to +85°C (-4°F to +185°F) ADG041: 0°C to +70°C (+32°F to +158°F) (with repeater) |
| Model | Description |
| ADG040 | PCIe/104 to PCI Express Cable Adapter, -20°C to +85°C (-4°F to +185°F) |
| ADG041 | PCIe/104 to PCI Express Cable Adapter, with repeater, 0°C to +70°C (+32°F to +158°F) |
