ADG043

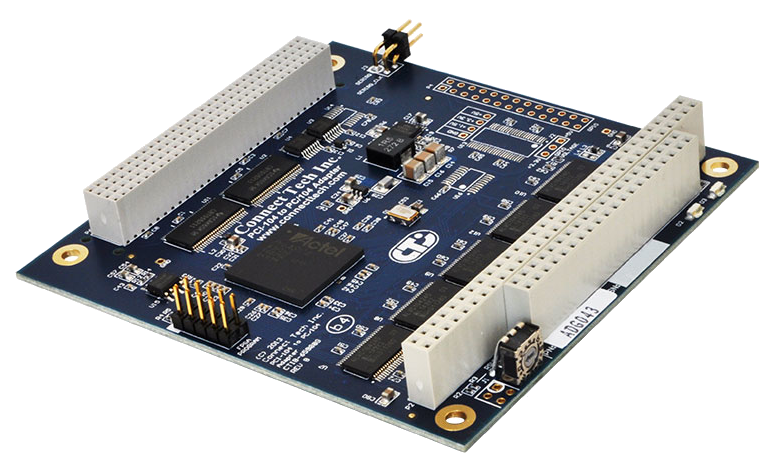

PCI-104 to PC/104 Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Fully customizable IO and memory address ranges
- Configuration loaded at system start-up via on-board Eeprom interface
- Additional 16 bi-directional Digital I/O accessible over the PCI bus (optional)
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s PCI-104 to PC/104 Adapter allows for the testing and development of PC/104 (ISA) devices in a PCI‑104 (PCI) only system.
The PCI-104 to PC/104 Adapter converts transactions on the PCI-104 bus to PC/104 bus transactions (PCI to ISA).
| Technical specifications | |
| Form Factor |
PCI-104 Fully PCI 2.0 bus compliant Jumpers not required for configuration or board detection |
| PC/104 IO Space |
Separate PCI IO registers covering 3 fully customizable 256byte IO address ranges |
| PC/104 Memory space | PCI Memory mapped BAR covering the entire ISA memory mapped address range (0x00 0000-0xFF FFFF) |
| Eeprom interface | On board eeprom loads customizable configuration parameters at boot time |
| Interrupts | PCI driven interrupt architecture monitors enabled IRQ input lines on the PC/104 bus. |
| Digital I/O | 16-bit bidirectional I/O (optional) |
| Input/Output Ranges | Hardware selectable +3.3V or +5V(TTL/CMOS) |
| High Current | 24mA |
| Dimensions | Fully PCI-104 compliant: 95.885mm x 90.17mm (3.775" x 3.550") |
| Operating Systems | Can be controlled directly from a memory mapped register set in any operating system |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG043 | PCI-104 to PC/104 Adapter |
