ADG046

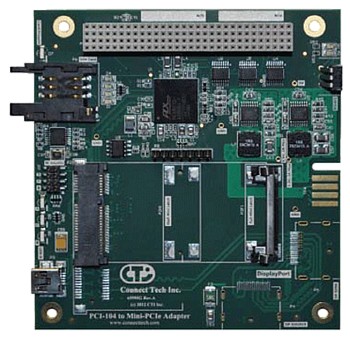

PCI-104 to Mini-PCIe Card Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Adapter supplies 3.3V and 1.5V DC power to the Mini-PCIe card
- SIM card support
- Optional PCI Express Mini-Card which adds a DisplayPort connection
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s PCI-104 to Mini-PCIe Card Adapter easily enables integration of a Mini-PCIe (PCI Express Mini) card into a PCI-104 system.
The PCI-104 to Mini-PCIe Card Adapter is fully compatible with any Mini-PCIe peripheral, expanding the capabilities of an existing PCI-104 system. Add features such as WiFi, GPS, Bluetooth, storage and broadband communications.
The Mini-PCIe Card Adapter can also support optional Mini-PCIe features such as USB and SIM Card usage for WLAN applications.
| Technical specifications | |
| Power Consumption |
+5V No modules installed 50mA 1 module using peak power up to 2200mA |
| Bus | PCI-104 |
| System Interfaces | PCI-104 Stack |
| Dimensions | 90.2mm x 96mm (3.55” x 3.78”) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG046 | PCI-104 to Mini-PCIe Adapter |
