PCI/PCIe to PMC/XMC Adapter
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • XMC to PCIe Connection
  • PMC to PCI Connection
  • BUSMODE LEDs with Jumper Selection for Testing
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

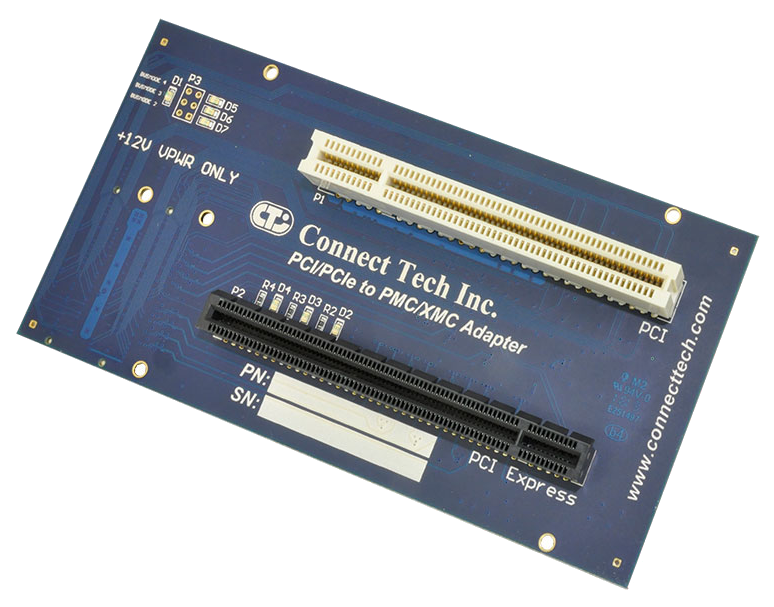

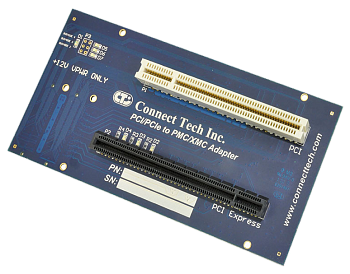

Connect Tech’s PCI/PCIe to PMC/XMC Adapter enables users to link a standard PCIe card to a XMC Carrier, or a standard PCI card to a PMC Carrier.

The ADG052 is transparent to the PMC/XMC Carrier system and allows for communication, testing, and/or debugging of the Carrier. The ability to test both PCI and PCIe cards, without additional setup or software, enables easy PCI to PMC or PCIe to XMC design development.

Standard Usage Guide
For standard usage of the ADG052, simply insert into a PMC/XMC Carrier. Connect the desired PCI or PCIe cards into the Adapter.

The LEDs on the Adapter serve a few purposes:

D1: Busmode 1
D5: Busmode 4
D6: Busmode 3
D7: Busmode 2

For assembly, ensure that proper Electro Static Discharge (ESD) practices are followed.

Technical specifications
Connectors PCI (32-bit), PCIe (x16 Card accepted, x8 Compatible), PMC, XMC
VPWR Configuration +12V Only
Power Requirements -12V, +12V, +3V, +5V, All power supplied by connected PMC/XMC Carrier
Dimensions 149mm x 74mm

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
ADG052 PCI/PCIe to PMC/XMC Adapter
