ADG053

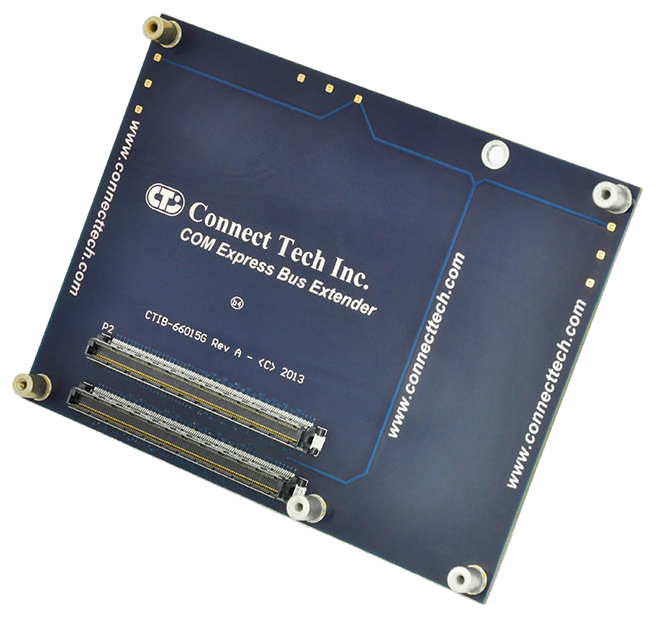

COM Express Bus Extender
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • COM Express Type 2/Type 6 Compatible
  • Supports Compact and Basic COM Express Modules
  • Impedance Controlled Design
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

Connect Tech’s COM Express Bus Extender provides relief to small batch COM Express testing cycles. Designed to extend the life of your COM Express Module/Carrier connectors, this impedance controlled design allows for full Type 2 or Type 6 COM Express system functionality without compromising the testing process.

With solid solder mount standoffs, the COM Express Bus Extender can be used with Compact or Basic COM Express Modules. Save your expensive modules by wearing out the insertion rating of Connect Tech’s COM Express Bus Extender.

Technical specifications
Bus COM Express
Pin Compatibility Type 2/Type 6 COM Express Pinout
System Interfaces Compact or Basic COM Express
Dimensions 95mm x 125mm

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
ADG053 COM Express Bus Extender
