ADG095
XMC to PCIe/104 Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- PCIe/104 Compliant
- Type 1 PCIe/104 & XMC Connectors
- Dimensions: 96.018mm x 152.4mm (3.780" x 6.0")
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

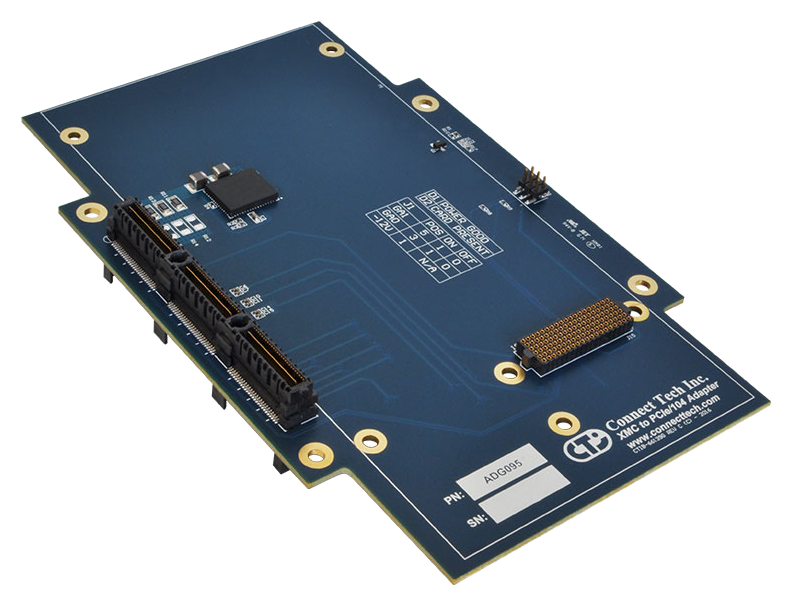

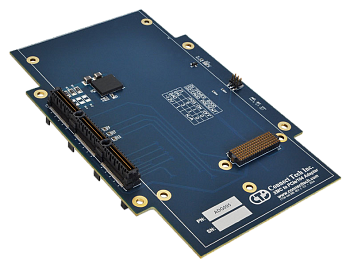

Connect Tech’s XMC to PCIe/104 Adapter Board is an engineering tool for the purpose of enabling rapid development of systems requiring the use of next generation form factor peripheral cards. This adapter supports adding VITA 42 XMC cards to a Type 1 PCIe/104 system.
| Technical specifications | |
| Compatibility | PCIe/104 oversize, XMC |
| Expansion | PCIe x8 Gen 2.0, XMC |
| Connectors | PCIe/104 Type 1, XMC |
| Power Requirements | +5V over PCIe/104 |
| Power to XMC | +5V (default). May be modified to +12V, if required |
| Dimensions | 96.018mm x 152.4mm (3.780" x 6.0"), 1-up |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Compliance | RoHS |
| Model | Description |
| ADG095 | XMC to PCIe/104 Adapter |
