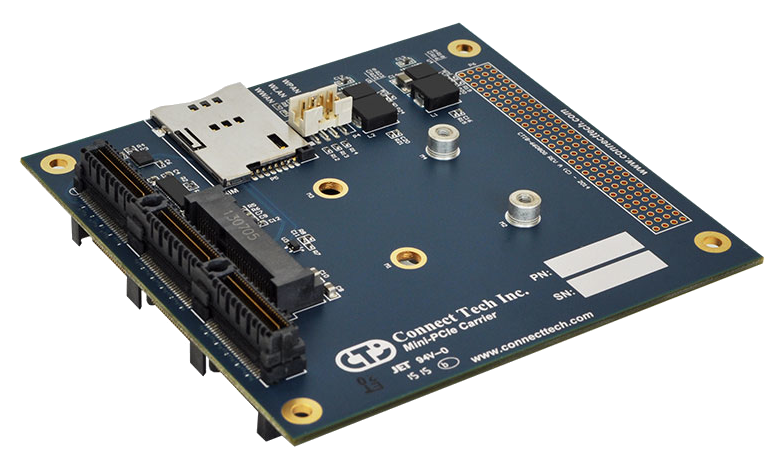

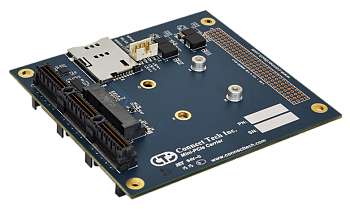

Mini PCIe Carrier
Mini PCIe Carrier
Vendor:Connect Tech
- Details
- Specification
- Order information
- PCIe/104 Compliant
- On-Board USB Switching
- Dimensions: 95.885mm x 90.17mm (3.775" x 3.550")
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s Single and Dual Mini-PCIe Carriers easily enable the integration of a Mini-PCIe Card into a PCIe/104 or PCI/104-Express System. Fully compatible with any Mini-PCIe Peripheral.
These Carriers expand the capabilities of an existing PCIe/104 or PCI/104-Express System, with the ability to add features such as WiFi, GPS, Bluetooth, CAN Bus, and/or Serial Interfaces. The Mini-PCIe Carriers excel in rugged environments and handle a wide Temperature Range of −40°C to +85°C.
| Technical specifications | |
| Compatibility | ADG075: Single Mini PCIe, ADG077: Dual Mini PCIe |
| I/O | 1x USB 2.0, ADG077: 4-Port Hub, Oversize Mini PCIe Module, PCI-104 (Pass Through), SIM Socket, Type 1 or Type 2 PCIe/104 |
| Power Requirements | +5V (PCIe/104 Bus Supplied) |
| Dimensions | 95.885mm x 90.17mm (3.775" x 3.550") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG075 | Single Oversized Rugged Mini-PCIe Carrier Without PCI-104 Pass Through |
| ADG077 | Dual Rugged Mini-PCIe Carrier Without PCI-104 Pass Through |
| ADG097 | Dual Rugged Mini-PCIe Carrier With PCI-104 Pass Through |
| ADG098 | Single Oversized Rugged Mini-PCIe Carrier With PCI-104 Pass Through |
