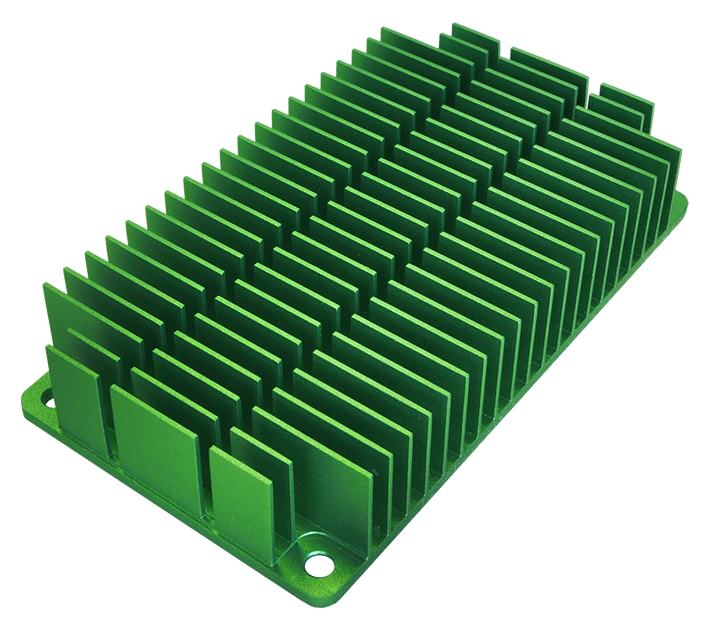

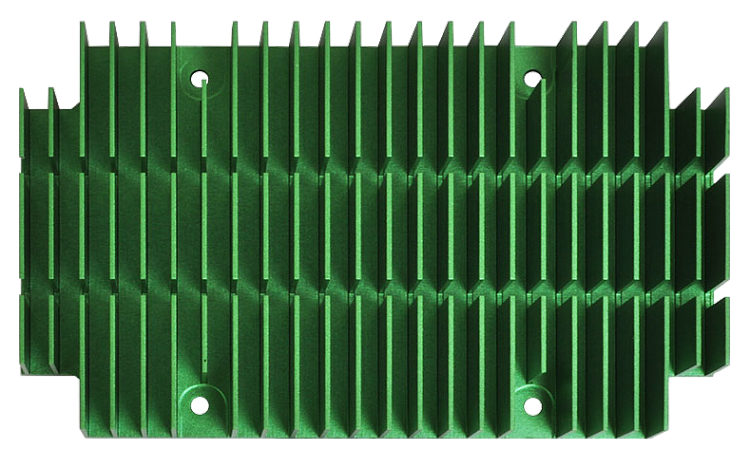

Passive Heat Sink XHG301/XHG303
NVIDIA Jetson TX2, TX2 4GB, TX2i Passive Heat Sink
Vendor:Connect Tech
- Details
- Specification
- Order information
- Compatibility: NVIDIA Jetson TX2, TX2 4GB, TX2i
- Thermal resistance: 0.983 C/W
- Dimensions: 87mm x 50mm x 16mm/3.43″ x 1.97″ x 0.63″
- Weight: 50g
Please Note: XHG301 supports TX2 only. For the NVIDIA Jetson TX2i and TX2 4GB, you will require the XHG303.
NVIDIA Jetson TX2 is a supercomputer on a module that’s the size of a credit card. Its performance, power efficiency, and technology make it ideal for embedded visual computing applications.
Connect Tech is proud to provide small form factor carriers and embedded system solutions for the TX2, TX2 4GB, or TX2i. To assist in your selection of their solutions, there are accessories to match the products. Readily available thermal options get you up and running fast.
| Technical specifications | |
| Compatibility | NVIDIA Jetson TX2, TX2 4GB, TX2i |
| Thermal Resistance | 0.983 C/W |
| Fin Space | 3.00mm |
| Mounting Fasteners | M2.0X0.4, PPHMS, 4.0mm long, S.S. |
| Mounting Fastener Torque Rating | 1.5 in-lb |
| Weight | 50g |
| Dimensions | 87mm x 50mm x 16mm/3.43″ x 1.97″ x 0.63″ |
| Model | Description |
| XHG301 | TX2 Passive Heat Sink |
| XHG303 | TX2 4GB, TX2i Passive Heat Sink |
