PCIe/104 - M.2

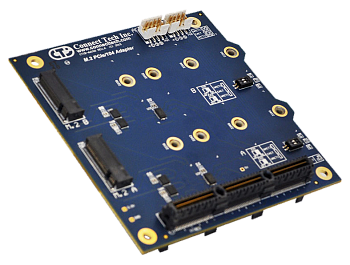

PCIe/104 to M.2 Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Additional 2 SIM card slots for cellular applications
- Additional 2 wireless status signal headers to aid with integration in custom enclosures
- Wireless disable switches
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s PCIe/104 to M.2 Adapter allows for the implementation of two M.2 next generation form factor expansion slots. Supported cards are, based on configuration, B, B&M, E, and A&E key type.
| Technical specifications | |
| Form Factor | PCIe/104 |
| Available Configurations |
2x B/B&M 1x B/B&M, 1x E/A&E 2x E/A&E |
| Host Interfaces | USB 2.0, PCIe x1 (E, A&E), SATA (B, B&M) |
| Supported M.2 Dimensions |
Width: 22mm, 16.5mm, 20mm Length: 30mm, 42mm, 60mm, 80mm |
| Module Lengths | Accepts 2230, 2242, 2260 and 2280 length modules |
| Operating System |
Windows, Linux (Contingent on availability of M.2 card manufacturer-provided driver) |
| Dimensions |
95.885mm x 90.17mm (3.775" x 3.550"), Fully PCIe/104 compliant |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG092 |
Slot A: Keys Accepted: B, B&M, Typical Usage: SATA, SSD, or Cellular Devices Slot B: Keys Accepted: B, B&M, Typical Usage: SATA, SSD, or Cellular Devices |
| ADG093 |
Slot A: Keys Accepted: E, A&E, Typical Usage: WiFi or PCIe x1 Devices Slot B: Keys Accepted: E, A&E, Typical Usage: WiFi or PCIe x1 Devices |
| ADG094 |
Slot A: Keys Accepted: B, B&M, Typical Usage: SATA, SSD, or Cellular Devices Slot B: Keys Accepted: E, A&E, Typical Usage: WiFi or PCIe x1 Devices |
