Quad Mini PCIe/mSATA
PCIe/104 Quad Mini PCIe/mSATA
Vendor:Connect Tech
- Details
- Specification
- Order information
- Supports up to four Mini PCIe modules simultaneously
- Supports any Mini PCIe/mSATA product
- Maximum flexibility keeping the PCIe/104 stack small
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

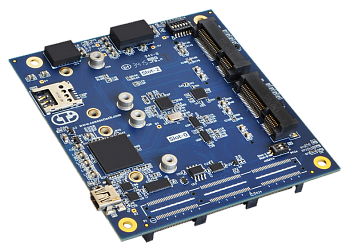

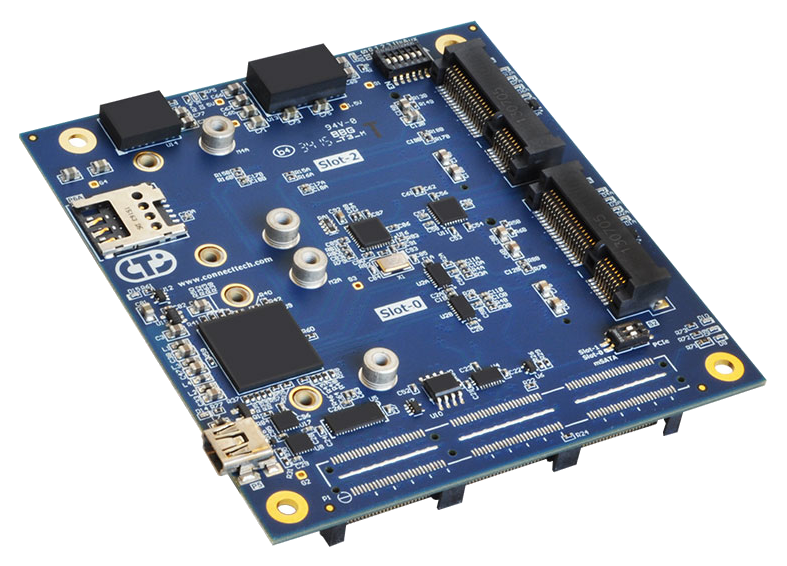

Connect Tech’s Quad Mini PCIe/mSATA board supports up to four mini PCIe modules simultaneously for applications in the PCIe/104 small form factor embedded market place.
This product is ideal for a wide array of applications. The ADG078 and ADG080 support any «Half» or «Full» Mini PCIe/mSATA product on the market, while the ADG087 supports any «Full» Mini PCIe/mSATA. This allows for maximum flexibility while keeping the PCIe/104 stack as small as possible.
| Technical specifications | |
| Power Source | PCIe/104 |
| Power |
Source: PCIe/104 Bus Onboard power supply for Mini PCIe sockets |
| Dimensions |
95.885mm x 90.17mm (3.775" x 3.550"), Fully PCIe/104 compliant |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG078 | PCIe/104 Quad Mini PCIe/mSATA |
| ADG080 | Bottom Stacking Model, uses all four PCIe x1 Lanes |
| ADG087 | Top Stacking Model, uses only one PCIe x1 Lane with onboard PCIe switch |
