STB-104 Module

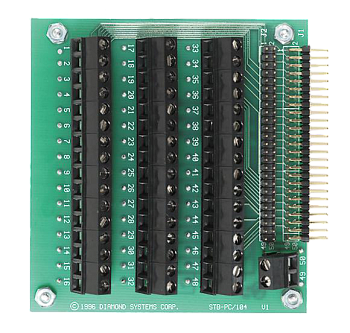

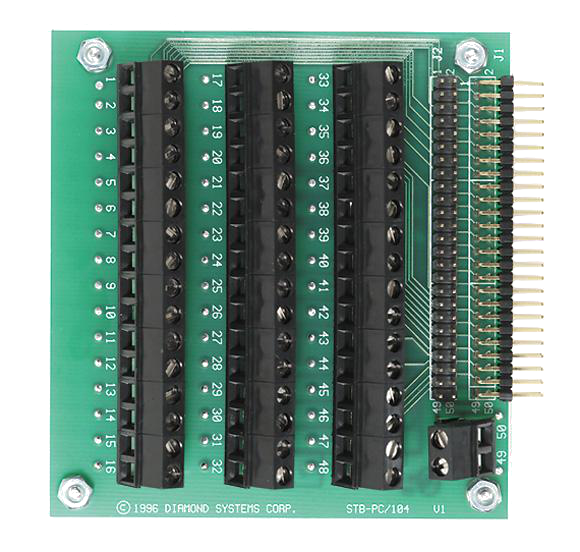

STB-104: PC/104 Screw Terminal Board
  • Details
  • Order information
  • 50 screw terminals for easy user connections
  • Angled screw terminals make wire installation and removal easier
  • 50-pin right-angle header for mating with Diamond Systems PC/104 modules
  • Additional 50-pin header for pass-through cable

The STB-PC/104 is a miniature PC/104-format screw‑terminal board that enables you to easily connect sensors, control signals, etc. to a PC/104 system. A 50-pin connector is provided for mating with a short cable to any Diamond Systems data acquisition module. Each pin on the connector is brought out to a screw terminal, enabling you to easily add, remove, and modify wiring as needed without complicated cable construction and modifications. The screw terminals are angled for easy operation.

This unique board is the same size as a PC/104 module, so it fits conveniently right on top of the PC/104 stack. All necessary mounting hardware is included.

Dimensions: 3.55″ x 3.775″
Screw terminal height: 0.59″ above top of PCB
Configuration: 3 rows of 16 terminals + 1 row of 2 terminals

Model Description
STB-104 PC/104 screw terminal board
