Passive Heat Sink XHG305

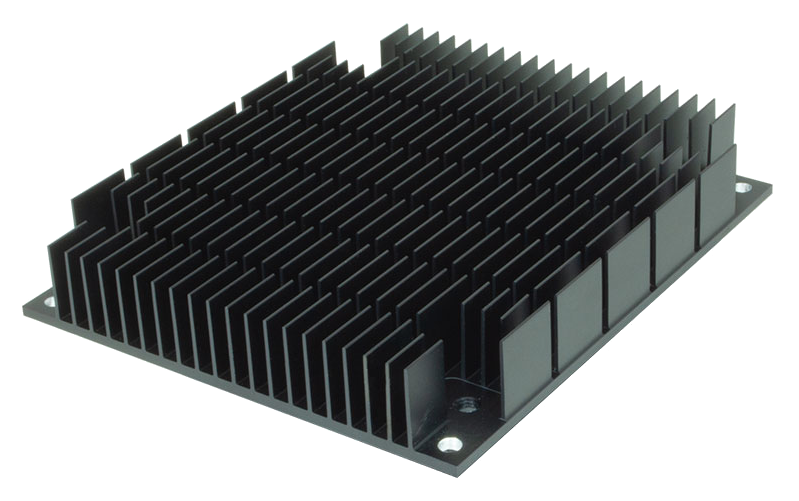

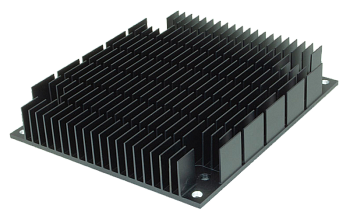

NVIDIA Jetson AGX Xavier Passive Heat Sink
Vendor:Connect Tech
- Details
- Specification
- Order information
- Compatibility: NVIDIA Jetson AGX Xavier
- Thermal resistance: 0.5 C/W
- Dimensions: 100mm x 87mm x 16mm
- Weight: 91g
The NVIDIA Jetson AGX Xavier is the world’s first AI computer for autonomous machines. NVIDIA Jetson AGX Xavier has an impressive 512-core Volta GPU and 64 Tensor cores with discreet dual Deep Learning Accelerator (DLA) NVDLA engines. The platform offers 20x the performance and 10x the power efficiency of the Jetson TX2.
Connect Tech is proud to provide small form factor carriers and embedded system solutions for the AGX Xavier. To assist in your selection of our solutions, we have included accessories to match our products. Readily available thermal options get you up and running fast.
| Technical specifications | |
| Compatibility | NVIDIA Jetson AGX Xavier |
| Thermal Resistance | 0.5 C/W |
| Mounting Fasteners | M3.0X0.5 PPHMS, 30mm long, S.S |
| Mounting Fastener Torque Rating | 5.2 in-lb |
| Weight | 91g |
| Dimensions | 100mm x 87mm x 16mm/3.93″ x 3.43″ x 0.63″ |
| Model | Description |
| XHG305 | NVIDIA Jetson AGX Xavier Passive Heat Sink |
