BlueStorm/Express Opto
Vendor:Connect Tech
- Details
- Specification
- Order information
- 4 or 8 ports
- 3kV optical isolation
- Hardware selectable RS-232/422/485
- Operating temperature: 0°C to +70°C (+32°F to +158°F)

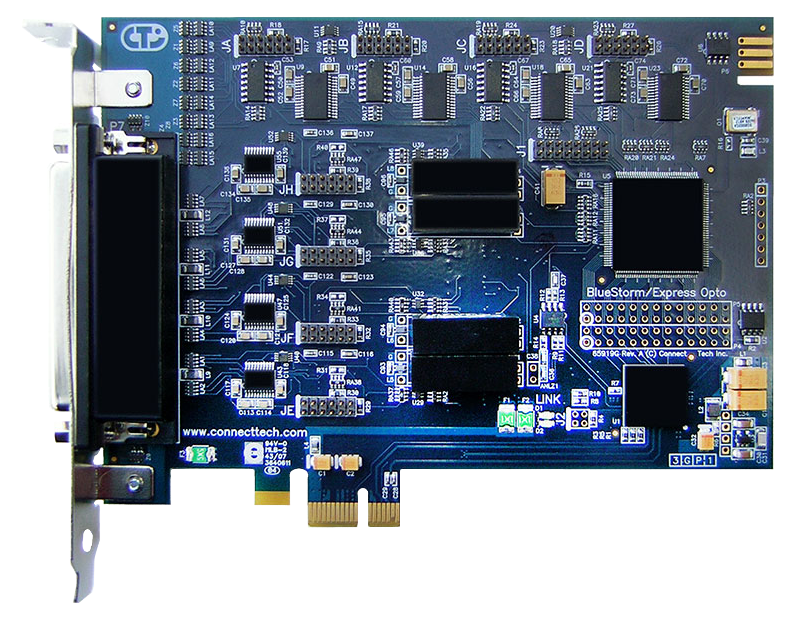

An extension of Connect Tech’s PCI Express product family, the BlueStorm/Express Opto offers dependability and high speed data transfer rates along with 3kV optical isolation. This added protection makes PCI Express Opto cards ideal in environments where harsh conditions may disrupt communications.
Available with four ports of RS-232/422/485 connectivity, these PCI Express x1 lane cards are compatible with x1, x4, x8, x16 lane PCI Express slots. Upgrading a PCI system to the more efficient PCI Express requires a hardware change only as your new PCI Express system is backwards compatible with PCI software.
Bi-directional data speeds up to 1.8432 Mbps ensure fast data acquisition and communications. PCI Express lets you experience more responsiveness while reducing the load on your network.
All Connect Tech PCI Express cards are FCC certified and CE marked.
| Technical specifications | |
| Ports | 4 or 8 ports |
| Electrical Interfaces | Hardware selectable RS-232/422/485 |
| Connectors | RJ-45 to DB-9 cables |
| Control Signals | RS-232: TxD, RxD, RTS, CTS, RS-422/485: TxD+/-, RxD+/-, RTS+/-, CTS+/- |
| Baud Rate | RS-232: 50 bps to 921.6 Kbps, RS-422/485: 50 bps to 1.8432 Mbps |
| Interrupts | Assigned by Plug and Play resources |
| Memory Addresses | Assigned by Plug and Play resources |
| UART Type | Dual UARTs with up to 64 bytes transmit and receive FIFO buffers for each port |
| Dimensions | Length: 14.699 cm/5.775" Height: 11.049 cm/4.350" |
| Operating System | Linux, QNX, SCO Unix, Solaris, Windows |
| Power Requirements | +12V DC @ 180mA, +3.3V DC @ 200mA |
| Optical Isolation | 3kV optical isolation |
| Bus | PCI Express |
| System Interfaces | Any available PCI Express slot |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Humidity | 5 to 95% non-condensing |
| Regulatory Approvals |
FCC Class A ICES-003 Class A EN50082-2 EN 55022 Class A EN 55024 |
| Model | Description |
| BBG001 | BlueStorm/Express Opto, 4 port |
| BBG001-01 | BlueStorm/Express Opto, 4 ports with CAGRJ4509 cable |
| BBG003 | BlueStorm/Express Opto, 8 ports |
| BBG003-01 | BlueStorm/Express Opto, 8 ports with CAG08FXDX cable |
| CAGRJ4509 | 1x RJ-45, DB-9 |
| CAG08FXDX | 8x DB-9 Male |
