ComSync/PCI-104
PCI-104 platform option for serial communications
Vendor:Connect Tech
- Details
- Specification
- Order information
- 2 synchronous/asynchronous serial ports
- Baud Rate: up to 20Mbps
- Fully PCI/104 compliant
- Operating temperature: 0°C to +70°C (+32°F to +158°F)

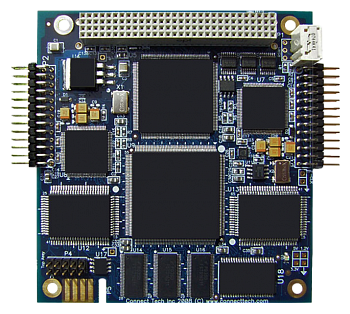

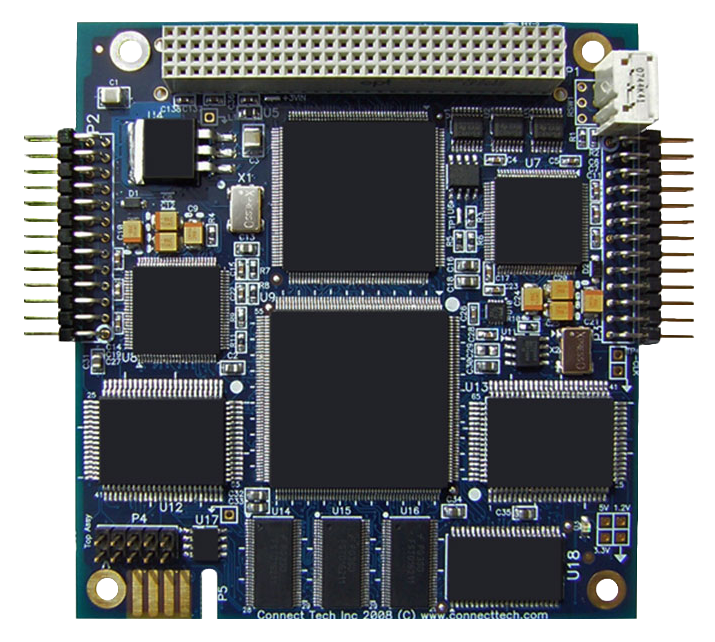

Connect Tech’s ComSync product family has expanded to include a PCI-104 platform option for your synchronous and asynchronous serial communications.
Based on the PCI bus and a compact form factor, this two-channel, multi-protocol serial adapter offers high performance, reliable, synchronous or asynchronous serial communications for your industrial or embedded needs.
Providing the maximum in flexibility, this PCI-104 card allows you to choose from multiple electrical interfaces, protocols and encoding schemes to ensure your hardware solution is ideally suited to your specific application.
ComSync/PCI-104 is PCI-104 1.0 compliant and includes a PCI-104 stack-through connector to interface with a PCI-104 card stack.
| Technical specifications | |
| Serial | 2 synchronous/asynchronous serial ports |
| Connectors | 2x 26-pin 0.100” right angle pitch headers |
| Electrical Interfaces | LTC1687CS: RS-422/485 only, SP508 & SP509: RS-232, RS-422, RS-449, V.35, X.21, EIA-530, EIA-530A |
| Modes |
Biphase: BiPhase-Space, BiPhase Level, Differential BiPhase-Level, NRZI: NRZI, NRZIB, NRZI-Mark, NRZI-Space |
| Protocols | Async, External Character Sync, HDLC, MonoSync, SDLC, Transparent BiSync |
| Baud Rate | Up to 20Mbps |
| DMA Modes | Array Chained, Linked Array, Pipelined, Single buffer |
| UART Type | Two dual channel Z16C32 IUSCs with 32 byte transmit and receive FIFO buffers |
| Dimensions | Fully PCI/104 compliant |
| Bus | Universal PCI-104 1.0 bus – 33MHz/32-bit PCI interface |
| Power Requirements | +5V DC 1.0 A (max.) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Storage Temperature | -40°C to +125°C (-40°F to +257°F) |
| Humidity | 95% non-condensing |
| Model | Description |
| CPG001 | ComSync/PCI-104 |
| CPG001-01 | ComSync/PCI-104 with CBG001 |
| CBG001 | 1x DB-25 Female, 26-Pin Header |
