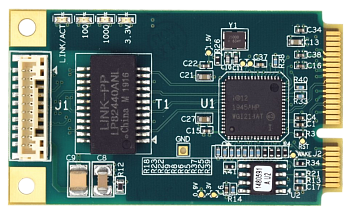

DS-MPE-GE210

Gigabit Ethernet PCIe MiniCard Module
  • Details
  • Specification
  • Order information
  • 1x 10/100/1000Mbps Ethernet port
  • Power consumption: 0.46W @ 3.3V
  • Dimensions: 50.95 x 30mm (2 x 1.18")
  • Operating temperature: -40°C to +85°C

The DS-MPE-GE210 is a rugged, low cost Gigabit Ethernet PCIe MiniCard module that is ideal for adding an extra Ethernet port to any system in embedded and OEM applications.

It provides a convenient, compact, cost-effective means to add an extra gigabit Ethernet port to your embedded system. The Intel 210IT Ethernet controller provides 10/100/1000Mbps operating speed with industrial temperature range capability. The module includes link and speed LEDs as well as latching connectors for enhanced ruggedness. Wake-on-LAN functionality is supported.

Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations.

The DS-MPE-GE210 product comes with the PCIe MiniCard hardware assembly, one gigabit Ethernet cable, and a hardware kit containing mounting screws.

Technical specifications
Number of ports 1x 10/100/1000Mbps Ethernet
Wake on LAN Yes
Status LEDs Link
Activity
100 speed
1000 speed
Input power +3.3VDC +/-5%
Power consumption 0.46W @ 3.3V
Software drivers Windows 7, XP
Linux 2.6.16, 2.6.27, 2.6.31, 2.6.32
Form Factor PCIe MiniCard full size
Dimensions 50.95 x 30mm (2 x 1.18")
Weight 8.5g (0.3oz)

Environmental and physical specifications

Operating temperature -40ºC to +85ºC
Operating humidity 5% to 95% noncondensing
Rohs Compliant
Model Description
DS‑MPE‑GE210 PCIe MiniCard Gigabit Ethernet 1 Port 10/100/1000Mbps XT
