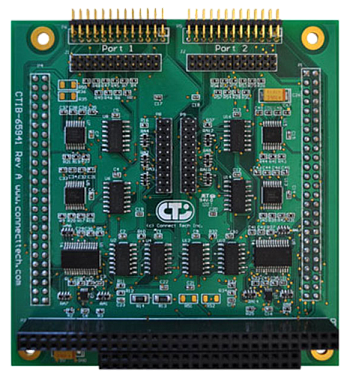

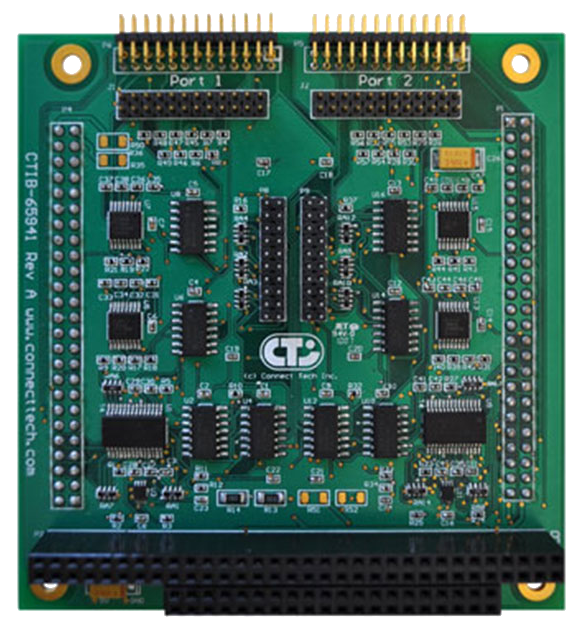

FreeForm Daughter Board
Adapter for FreeForm/104 FPGA development board
Vendor:Connect Tech
- Details
- Specification
- Order information
- 2x RS-232, RS-422, RS-485 ports
- Baud Rate: up to 10 Mbps
- Bus PC/104
- Operating temperature: 0°C to +70°C (+32°F to +158°F)
The Daughter Board is an adapter for Connect Tech’s FreeForm/104 FPGA development board that enables users to capture and process synchronous and asynchronous RS‑232 or RS-485/RS-422 serial data with customizable FPGA implementations.
When used with a FreeForm/104 FPGA development board, the Daughter Board allows for easy and rapid design changes at run time, which makes it ideal for high speed, compute intensive, reconfigurable applications.
| Technical specifications | |
| Ports | 2 ports |
| Electrical Interface | Synchronous RS-232, RS-422, RS-485 |
| Connectors | 2×26 pin header connectors (optional ribbon cables with female 26 pin IDC to female DB-25 connectors available, 2×50 pin connector to connect to FreeForm, PC/104 pass-through |
| Control Signals | CTS, DCD, DTR, RTS, RxCl, RxD, TxClk, TxD |
| Baud Rate | RS-232: Up to 1 Mbps, RS-422/RS-485: Up to 10 Mbps |
| Dimensions | Length: 14.699 cm/5.750” / 9.5885 cm/3.775” Height: 11.049 cm/4.350” / 9.017 cm/3.55” |
| Bus | PC/104 |
| System Requirements | Varies by configuration |
| Windows, Linux, QNX | Windows 2000/XP/CE/XPe/Vista/QNX 4/6, Linux |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Regulatory Approvals |
FCC Class A EN50082-2 ICES-003 Class A EN 55022 Class A EN 55024 |
| Model | Description |
| DBG002 | FreeForm Daughter Board |
