IR104-PBF

High Density Optoisolated Input + Relay Output PC/104 Module
  • Details
  • Specification
  • Order information
  • Inputs: 20 optoisolated inputs
  • Outputs: 20 SPST relays
  • MTBF: 57,450 hours
  • Operating Temperature: -25°C to +70°C

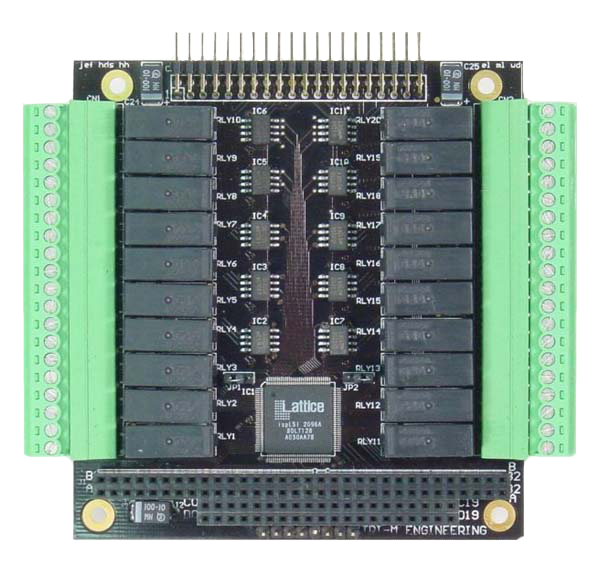

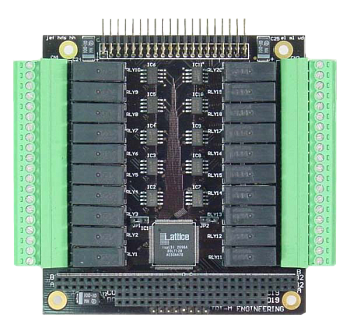

IR104-PBF is a high-density PC/104 format digital I/O module designed for industrial applications requiring isolation between the computer and the external signals it is monitoring and controlling. This module features 20 optoisolated digital inputs and 20 relay outputs. Each input can accept both AC and DC voltages as low as 3V and as high as 24V.

The optocoupler inputs are located on a pin header at the top of the board, while the relays feature quick-disconnect terminal blocks (10 relays per block) that accept wire ranging from 14-28AWG. The board will operate in ambient temperatures ranging from −25 to +70°C.

Note: The maximum component height on this board is .492″, slightly higher than the PC/104 standard of .435″. This extra height will usually not be a problem unless the board stacked directly above the IR104-PBF has components mounted on the bottom of the board or through-hole pins that exceed .043″ in height. In this case you can mount the IR-104-PBF on the top of the stack.

Output Relays
The 20 relay outputs have SPST (form A) normally open contacts. Each relay can switch both AC and DC voltages. The relays have long lifetime (20,000,000 operations, 100,000 at full load) and quick actuation time (6ms max operate, 3ms release).Maximum load is 5A @30VDC. Relay connections are made with detachable screw terminal blocks. Each of the 2 blocks carries contacts for 10 relays.

Input Optoisolators
The 20 optoisolators can accept either AC or DC inputs ranging from 3V to 24V. Opto input connections are made with a 40-pin pin header that mates with standard ribbon cables.

Technical specifications
Inputs 20 Optoisolated inputs
Input voltage 3-24V AD or AC
Input impedance 2.8KΩ
Outputs 20 SPST relays
Max voltage 150VDC, 250 VAC
Max current 5A AC or DC (30VDC max)
Max power 150W, 1250VA
Contact resistance 30mΩ initially
UL rating 5A/30VDC or 250VAC 1/10HP 120VAC
Lifetime 20,000,000 cycles mechanical 100,000 cycles @ full power
Actuation time 6ms operate, 3ms release
Inputs: 2x20 pin header, .1" spacing
Outputs: Dual 1x20 detachable screw terminals
Power 5V @ 110mA typ (all relays off)
Size 3.550" x 3.775"
0.492" max component height
Weight .2 oz/90g
MTBF 57,450 hours

Environmental and physical specifications

Operating Temperature -25°C to +70°C
Rohs Compliant
Model Description
IR104‑PBF 20 Relays + 20 Opto Inputs PC/104 Module RoHS Compliant
