Programmable Digital I/O PC/104-Plus Module with Customizable Personality
  • Details
  • Specification
  • Order information
  • Total I/O lines: 96
  • Expansion: PC/104-Plus (ISA + PCI) stackable expansion
  • Dimensions: 3.55 x 3.775 in. (90 x 96 mm)
  • Operating temperature: -40°C to +85°C standard

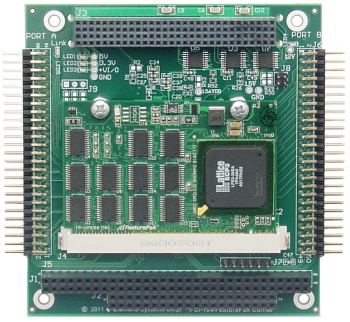

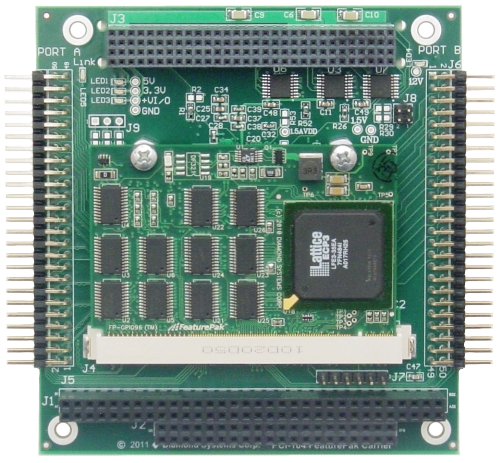

P104-GPIO96 is a PC/104-Plus general purpose digital I/O module integrating Diamond’s using a high-capacity PCI Express FPGA for maximum density and flexibility.

P104-GPIO96 is a programmable PC/104-Plus DIO module using a high-capacity (700K gate equivalent) PCI Express FPGA for maximum density and flexibility. The base hardware configuration features 96 digital I/O lines grouped into 12 8-bit ports. All ports have I/O buffers to protect the FPGA and feature 5V logic drive levels. The ports are organized into a combination of byte-wide, nibble-wide, and bit-wide direction control for maximum flexibility and application compatibility.

The built-in FPGA personality provides multiple configuration options. All 96 I/O lines may be used in common I/O mode; Six of these ports can be reconfigured to enable an array of additional features, including 8 32-bit up/down counter/timers with programmable input source and gate, 4 24-bit PWM circuits with 0-100% duty cycle capability and interrupt/latched mode operation.

The flash-based design enables easy field upgrades using a Diamond-provided software utility (no cable or third-party software required!) as well as custom code development. Universal Driver software support is included for Linux, Windows XP, Windows Embedded CE/Standard.

Technical specifications
Base FPGA LatticeECP3, 700K gate equivalents
Input clock 50MHz
FPGA code storage Flash memory, field upgradeable via JTAG
Total I/O lines 96
Primary I/O 48 lines with 3 8-bit and 2 4-bit; configurable pull-up/down resistors
Secondary I/O 48 lines with 6 8-bit buffers; configurable pull-up/down resistors
Counter/timers 8x 32-bit up/down counters (alternate mode)
Counter modes Counter, rate/square-wave generator, pulse-width modulator, programmable one-shot, hardware/software triggered strobe
Output current Ports A, B & D: 24mA per pin max; 200mA per port max
Port C low: 24mA per pin max
Port C high: -24mA per pin max
Ports E & F: 32mA per pin max
Input current +/-340uA max
Form Factor PC/104-Plus
Expansion PC/104-Plus (ISA + PCI) stackable expansion
Dimensions 3.55 x 3.775 in. (90 x 96 mm)
Power supply 3.3VDC ±5%
Weight 3.4oz (96g)

Environmental and physical specifications

Operating Temperature -40°C to +85°C standard
Rohs Compliant
Model Description
P104‑GPIO96 96 GPIO With Counter and PWM PC/104-Plus Digital I/O Module
