PCIe MiniCard Carrier

PCI/104-Express Quad PCIe MiniCard Carrier
  • Details
  • Specification
  • Order information
  • 4 PCIe MiniCard sockets
  • PCIe x 1 and USB interfaces
  • PCI-104 pass through connector
  • Operating temperature of -40°C to +85°C

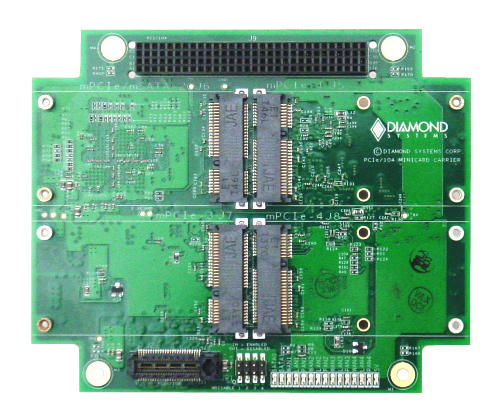

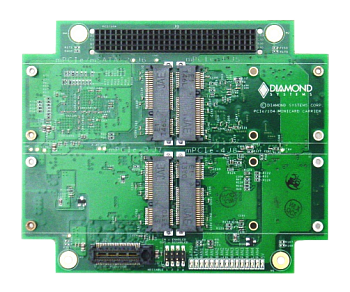

The PCIe MiniCard carrier offers four PCIe MiniCard sockets on a compact PCI/104 Express form factor board. All four sockets have PCIe x 1 and USB interfaces and support full size and half size PCIe MiniCard modules.

The module provides full support to all sockets while consuming only a single lane of host SBC resources. SIM card support is provided for two sockets.

All power is derived from the PCIe/104 connector 5V power tab. The PCI-104 connector provides a pass through connection and is not used by the module.

Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations. For further enhanced ruggedness, zero ohm resistors can replace jumpers.

Technical specifications
Number of PCIe MiniCard sockets 4
Card Size Full and half size cards supported
SIM support 2 sockets support SIM cards
Interfaces PCIe x1 and USB
Host interface PCI-104 pass through
LEDs LEDs provided for all 4 sockets
Form Factor and dimensions PCI/104-Express form factor with wings: 4.5" x 3.775" (114mm x 96mm)
Power supply +5VDC ±5%
Weight 2.5oz (71g)
Environmental and physical specifications
Operating temperature -40°C to +85°C (-40°F to +185°F)
Operating humidity 5% to 95% non-condensing
Shock MIL-STD-202G compatible
Vibration MIL-STD202G compatible
RoHS Compliant
Model Description
E104-MPE-04 PCI/104-Express Quad PCIe MiniCard Carrier
E104-MPE-02 PCI/104-Express Dual PCIe MiniCard Carrier
