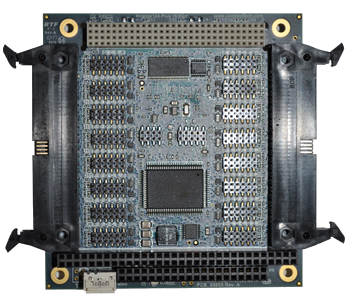

Xtreme/104-Plus 16 Port

PC/104-Plus serial card
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • 16x RS-232/422/485 serial ports
  • Data rates up to 1.0Mbps RS-232 and 4.16Mbps RS-422/485
  • Fully PC/104-Plus compliant
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

Connect Tech’s Xtreme/104-Plus 16 Port offers 16 ports of switchable RS-232/422/485 on a single PC/104-Plus card. This provides the highest port density and most flexible PC/104-Plus serial port solution available.

Dependability, high speed data transfer rates, and high density makes the Xtreme/104-Plus 16 Port a must where space is at a premium.

The Xtreme/104-Plus 16 Port is ideally suited for embedded systems where high serial port count and a small footprint is required. Example markets are remote submersibles, remote aerial or land vehicles, remote monitoring stations, or anywhere that high serial port density is required.

Technical specifications
Ports 16 ports
Serial RS-232/422/485
Baud Rate RS-232: Up to 1 Mbps, RS-485: 4.16Mbps
Bus PC/104-Plus
Baud Rate RS-232: 50 bps to 921.6 Kbps, RS-422/485: 50 bps to 1.8432 Mbps
UART Type High performance Exar Octal UARTs with 64 byte transmit and receive FIFO buffers
Dimensions Fully PC/104-Plus compliant
Power Requirements +5V 400mA max, VI/O of +5V or 3.3V DC
Accessories 8 port cable available, Part Number: CBG082 – two required per unit
Software Compatibility Windows XP/Vista/Server/7, QNX4, QNX6, Linux

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
XPG024 Xtreme/104-Plus 16 Port
XPG024‑01 Xtreme/104-Plus 16 Port, DB-9 cables
Note: RS-423 models are also available. Call for pricing and model numbers.
