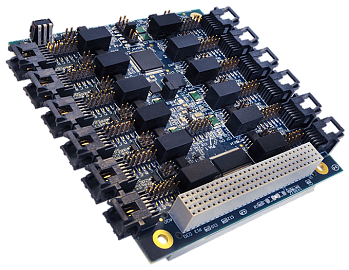

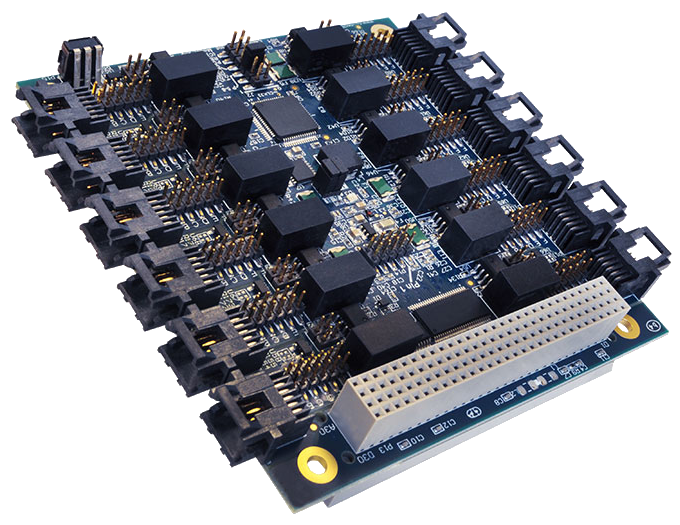

Xtreme/PCI-104 Opto
PCI-104 board for serial communications
Vendor:Connect Tech
- Details
- Specification
- Order information
- 12x RS-232/422/485 optically isolated serial ports
- Baud Rate: up to 4.16 Mbps
- 10-pin R/A locking connectors
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s robust Xtreme product family now includes high density optical isolation as an additional feature to its product offering. Xtreme/PCI-104 Opto provides the highest port density, with 12 ports on a PCI‑104 card, along with the added protection of 1kV optical isolation on a rugged and compact form factor.
Dependability, high speed data transfer rates and 1kV of optical isolation protection makes these cards ideal for critical applications whereby harsh conditions may disrupt communications.
Use Xtreme/PCI-104 Opto for embedded systems in the military, aerospace, medical and industrial sectors.
| Technical specifications | |
| Ports | 12 ports |
| Electrical Interface | Hardware selectable RS-232/422/485 |
| Connectors | 10-pin R/A locking connectors |
| Control Signals | RS-232: TxD, RxD, RTS, CTS, SG, RS-422/485: TxD +/- , RxD +/- , RTS +/- , CTS +/-, SR |
| Baud Rate | Fractional baud on ports 1-8 only, RS-232: 50 bps to 1 Mbps, RS-485: 4.16Mbps |
| Interrupts | Assigned by Plug and Play resources |
| Memory Addresses | Assigned by Plug and Play resources |
| UART Type | High performance UARTs with 64 byte transmit and receive FIFO buffers |
| Dimensions | Fully PCI/104 compliant |
| Bus | 5V PCI-104 |
| Power Requirements | +5V DC 750mA to 950m |
| Software Compatibility | Windows 2000/XP/CE/XPe/Vista/QNX 4/6, Linux |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -40°C to +125°C (-40°F to +257°F) |
| Humidity | 95% non-condensing |
| Model | Description |
| XIG011 | 12 Port PCI/104 Opto RS232/485, ROHS, -40°C to +85°C (-40°F to +185°F), Standard Build |
| XIG013 | 12 Port PCI/104 Opto RS232/485, custom FPGA used w/25MHz SBC |
| XIG014 | 12 Port PCI/104 Opto RS232/485, uses EPT 22MM connector |
| XIG015 | 12 Port PCI/104 Opto RS232/485, CC w/ Dymax 9-20557-LV 2 |
| XIG016 | 9 Port PCI/104 Opto RS232/485, removes Ports 4/5/6 & J1 |
| XIG017 | 12 Port PCI/104 Opto RS232/485, modified connectors |
| XIG018 | 12 Port PCI/104 Opto RS232/485, CC w/Humiseal 1B31, RS422 jump |
| CBG067 | 10 CCT locking connector to DB-9 male, 12 per board. |
