150W ATX Power Supply
  • Details
  • Specification
  • Order information
  • PCI/104-Express Form Factor (90mm x 96mm)
  • Two Variants Available
  • MTBF: 500,000h
  • Extended operating temperature: -40°C to +85°C

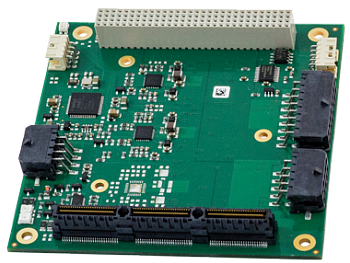

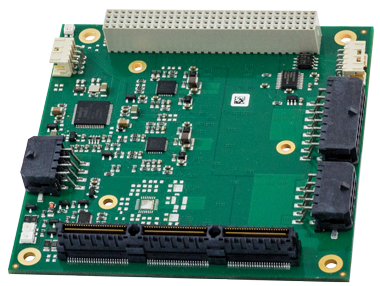

The ADLPS104-150 power supply board is designed to meet the needs of high-powered Intel® Core™ industrial and embedded motherboards by providing robust ATX voltages (5V, 5VS, 3.3V, 12V) in a stackable PCI/104-Express form factor designed for — 40°C to +85°C operation at 150W. Its small (90mm x 96mm) footprint allows it to fit in many space limited applications. As well, the ADLPS104-150 is tailored to work in conjunction with our ADLQM67PC Sandy Bridge SBC with more than enough headroom for inrush startup currents, and quiescent operation with multiple peripheral cards. Of course, it is also an economical choice for the ADLGS45PC and other lower power platforms.

The ADLPS104-150 features ATX compliant signaling to allow ACPI/APM power management from within compliant operating systems.

The ADLPS104-150 is available in two variants, one allowing an input voltage range of 7-30V but providing only the 5V, 5VS, and 3.3V outputs, the other with a narrower input voltage range of 14-36V but providing 5V, 5VS, 3.3V and 12V outputs.

The board is protected against many types of input power anomalies, such as over-currents, voltage deviations and voltage surge. Short bursts of over-current are simply filtered out. Should overvoltage or under voltage situation persist too long, the power supply shuts off. Noise interference is dampened by up to 35dB. The output is protected against reverse voltage and short-circuit. Additionally, the power supply design does not include the use of electrolytic capacitors, thus dramatically increasing the lifespan of the power supply.

Technical specifications
Two variants available ADLPS104-150-5: Input: 7-30V, Output: 5V, 5VS, 3.3V (optional 7-36V available)

ADLPS104-150-12: Input: 14-36V, Output: 5V, 5VS, 3.3V, 12V

36V input voltage option available upon request
Voltage and current specifications (common all variants) Maximum Input Current = 15A
Maximum Power = 150W Combined
Available Output Current: 5VS/5A, 5V/20A, 3.3V/5A, 12V/10A
Input protection Overcurrent
Overvoltage / Undervoltage / Surge
Reverse voltage
Output protection Voltage out of range (monitored via PWRGD)
ATX compliant signals ATX compliant signals available (PS-ON, PWRGD etc.)
Dimensions PCI/104-Express form factor (90mm x 96mm)
MTBF 500,000h

Environmental and physical specifications

Operating temperature -25°C to +70°C (standard)
-40°C to +85°C (with 293034 heat spreader)
EMI Enhanced EMI circuitry designed for IEC 55022 cl. B Emission and EN 55024 immunity compliance
Model Description
ADLPS104-150-5 ADLPS104-150-5, 5V, 5VS, 3.3V, ET (optional 7-36V available)
ADLPS104‑150‑12 ADLPS104-150-12, 5V, 5VS, 12V, 3,3V
ADLPS104‑150‑HSP ADLPS104-150-HSP Heat spreader for -40°C to +85°C operation; hardware kit included
MILCOTS-FILTER MIL-STD 704/1275/461 Input Filter; 120w max.
