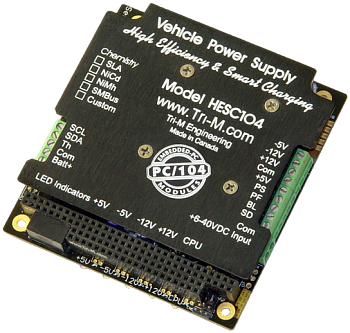

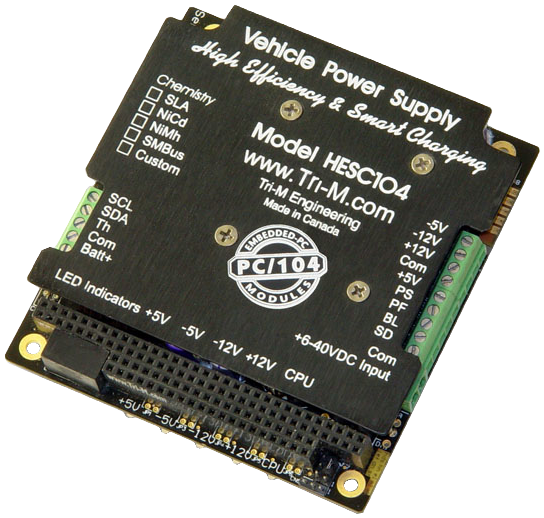

60W Smart Charging PC104 Power Supply
  • Details
  • Specification
  • Order information
  • 6 to 40VDC input voltages
  • Outputs: +5V @ 12A, +12V @ 2.5A, -5V @ 0.4A, -12V @ 0.5A
  • Efficiency up to 95%
  • Extended temperature: -40°C to +85°C

The HESC104 is a 60W DC-DC PC104 Power Supply that includes a flash based microcontroller and 4 amp charger for advanced power management and smart battery charging. Combined with a Tri-M standard battery pack or super cap module, the HESC104 can be used as an Uninterruptible Power Source (UPS) for a PC104 system.

The HESC104 is designed for low noise embedded computer systems, has a wide input range of 6-40V (>6:1) and is ideal for battery or unregulated input applications. The HESC104 is specifically designed for the rugged demands of vehicular applications and has heavy-duty transient suppressors (5000W) that clamp the input voltage to safe levels, while maintaining normal power supply operation.

The +/-5V DC and +/-12V DC outputs are controlled by a constant off-time current-mode architecture regulator that provides excellent line and load transient response.

The HESC104 provides up to four stages of battery charging and can charge SLA, NiCd, and NiMh batteries and level two and three SMBus compatible batteries. Charge currents are up to 4A, and battery charging voltages from 9.5 to 19.5V.

The HESC104 has advanced power management functions that allows timed on/off control of the HESC104, notification of changes to main power and changes in the battery status. For example, the HESC104 can be programmed to power off the main outputs in 60 seconds and then turn them on again 12 hours later.

In addition to smart charging and power supply management the HESC104 can monitor up to 16 different temperatures using digital I²C digital temp sensors. The HESC104 is available as RoHS, is PC/104 compliant and −40°C to +85°C is standard.

Technical specifications
Input Voltage Range +6V to +40V DC
Output Voltages +5V @ 12A
+12V @ 2.5A
-5V @ 0.4A
-12V @ 0.5A
Output power Up to 60W
Load Regulation < 60mV
Line Regulation < 40mV
Output temp. drift < 40mV
Peak to Peak ripple <20mV
Quiescent Current 2mA
Output Ripple < 20mV
Soft Start 5V start up risetime = 10 msec
Efficiency Up to 95%
Form Factor: PC/104
Dimensions 90mm x 95.25mm x 13.97mm (3.55”W x 3.75”L x 0.55”H)
Weight: 6.56oz / 185.92g

Environmental and physical specifications

Operating Temperature: -40°C to +85°C (-40°F to 185°F)
Model Description
HESC104‑18F‑N‑PBF PC/104, In 6-40VDC, Out 60 Watt, +5V@12A, +12V@2.5A, -5V@400mA, -12V@500mA, (-40 to +85°C), No Bus
HESC104-18F-PBF PC/104, In 6-40VDC, Out 60 Watt, +5V@12A, +12V@2.5A, -5V@400mA, -12V@500mA, (-40 to +85°C), ISA Bus
CON-HESC104-KIT Replacement Connector Kit for HESC104 power supplies
