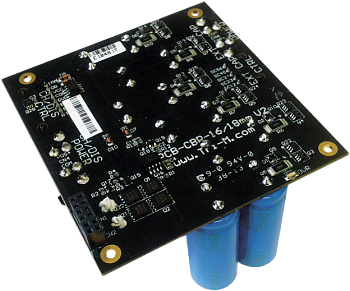

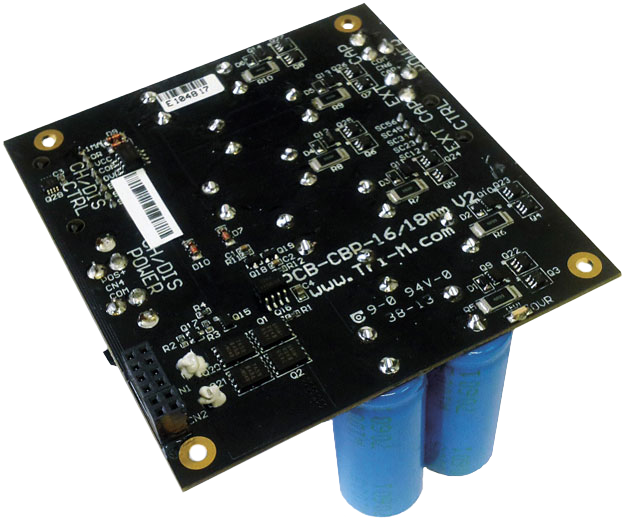

TBP4xxx
Ultracapacitor Backup Modules
Vendor:Tri-M Technologies Inc.
- Details
- Specification
- Order information
- Fully charged in less than a minute
- 500,000 charge cycles
- PC/104 size footprint
- Operating temperature: -40 to +85°C (-40 to +185°F)
TBP4xxx modules are extended temperature, maintenance free, high cycling backup energy modules that when combined with a Tri-M HESC or HPSC smart charging power solution creates a complete uninterruptable power system (UPS) in a PC/104 footprint. The TBP4xxx designed for hostile environments of extreme temperatures and vibration. This rugged backup energy module is ideal for applications that have either a large number of discharge cycles or where a «maintenance free» solution is required such as remote and hard to access locations.
TBP4xxx Modules are available in 500, 1000, 2000 and 4000 joules and mate directly to the bottom of HESC or HPSC power supplies.
Key Specifications
- Fully charged in less than a minute
- 500,000 charge cycles
- Deep discharge immune
- Extreme temperature operation
- High altitude capable (info available on request)
- Designed for high vibration and shock environments
- PC/104 size footprint
- Cable free mating with HESC & HPSC
Advantages
- Designed to MIL Standards
- Prevents loss of data or corruption due to reliable system backup power
- Reduced downtime due to maintenance-free operation
- High Density PC/104 footprint
- Improved reliability due to cable free integration of HESC & HPSC
- Military & Civil Vehicles
- Aerospace & Defence
- Industrial Automation
- Telecommunications
- Undersea & Marine
| Technical specifications | |
| Backup energy |
500 joules (TBP4K50) 1000 joules (TBP41K0) 2000 joules (TBP42K0) 4000 joules (TBP44K0) |
| Maximum voltage | 13V |
| Holdup time for 5 watt load |
100 seconds (TBP4K50) 200 seconds (TBP41K0) 400 seconds (TBP42K0) 800 seconds (TBP44K0) |
| Holdup time for 10 watt load |
50 seconds (TBP4K50) 100 seconds (TBP41K0) 200 seconds (TBP42K0) 400 seconds (TBP44K0) |
| Holdup time for 25 watt load |
20 seconds (TBP4K50) 40 seconds (TBP41K0) 80 seconds (TBP42K0) 160 seconds (TBP44K0) |
| Holdup time for 50 watt load |
Not recommended (TBP4K50, TBP41K0) 40 seconds (TBP42K0) 80 seconds (TBP44K0)) |
|
Height (in addition to the standard 0.662" PC/104 card on the PC/104 stack) |
0 mm (0") (TBP4K50) 46.5 mm (1.83") (TBP41K0) 46.5 mm (1.83") (TBP42K0) 61.5 mm (2.42") (TBP44K0) |
| Recommended maximum load wattage |
40 watts (TBP4K50) 40 watts (TBP41K0) 80 watts (TBP42K0) 80 watts (TBP44K0) |
| Weight |
120 grams (4.2 ounces) (TBP4K50) 190 grams (6.7 ounces) (TBP41K0) 330 grams (11.6 ounces) (TBP42K0) 490 grams (17.3 ounces) (TBP44K0) |
| Size (length and width) | 90 x 96 mm (3.55" x 3.775") |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -40 to +85°C (-40 to +185°F) |
| Model | Description |
| TBP4K50 | PC/104 size, 500 Joules Capacitor Backup Power Module (OEM) (-40 to +85°C) |
| TBP41K0 | PC/104 size, 1000 Joules Capacitor Backup Power Module (OEM) (-40 to +85°C) |
| TBP42K0 | PC/104 size, 2000 Joules Capacitor Backup Power Module (OEM) (-40 to +85°C) |
| TBP44K0 | PC/104 size, 4000 Joules Capacitor Backup Power Module (OEM) (-40 to +85°C) |
