TPSi1000
85W Isolated Power Supply
Vendor:Tri-M Technologies Inc.
- Details
- Specification
- Order information
- PC/104 compliant
- Input Voltage Range +9V to +33V DC
- Transient surge stopper designed to MIL-STD-1275 levels
- Operating temperature: -40°C to +85°C

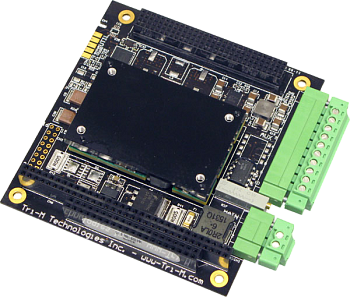

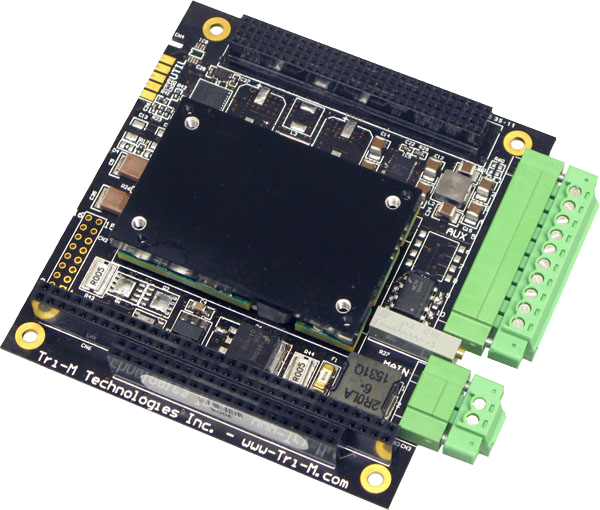

Tri-M’s TPSi1000 is a galvanically isolated PC/104-Plus power solution for use in embedded applications requiring isolation. The wide-range input voltages, transient suppression, isolation and pluggable terminal mating plugs make the TPSi1000 ideal for use in rugged and hostile applications. Designed tough for harsh environments including military standards, shock, vibration and extended temperature.
| Technical specifications | |
| Input Voltage Range | +9V to +33V DC |
| Standard Output | +5V @ 17A, +12V @ 2A |
| Maximum Combined Power | 85W Total |
| Isolation Voltage | 2250V Max. |
| Transient Supression | 6000W Total |
| Output Ripple/Noise | Typ 20mV, max 75mV |
| Line Regulation | ±0.05% Max. |
| Load Regulation | ±0.06% Max. |
| Switching Frequency | 267kHz (5V), 1.01mHz (3.3V) |
| Current Limiting Fuse | Onboard 15A (on input source) |
| Quiescent current | 22mA (LEDs & Outputs Off) |
| Transient surge stopper | Designed to MIL-STD-1275 levels |
| Efficiency | Up to 88% |
| Dimensions | PC/104 compliant, 90mm x 96mm x 15mm (3.55” x 3.775” x 0.6”) |
| Weight | 110g (3.9oz) no plugs, 117g (4.1oz) with plugs |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -40°C to +85°C (-40°F to 185°F) |
| Thermal Protection/Shutdown | +120°C (248°F) |
| Model | Description |
| TPSi1000‑512‑PBF | PC/104+, Isolated, In 9-33VDC, +5V, +12V (-40 to +85°C), ISA Bus, PCI Bus |
| TPSi1000-5-PBF | PC/104+, Isolated, In 9-33VDC, +5V (-40 to +85°C), No ISA Bus, No PCI Bus |
| TPSi1000-12-PBF | PC/104+, Isolated, In 9-33VDC, +12V (-40 to +85°C), ISA Bus, PCI Bus |
| TPSi1000-XY-PBF | PC/104+, Isolated, In 9-33VDC, Out 85 Watt, Custom outputs, (OEM quantities) |
