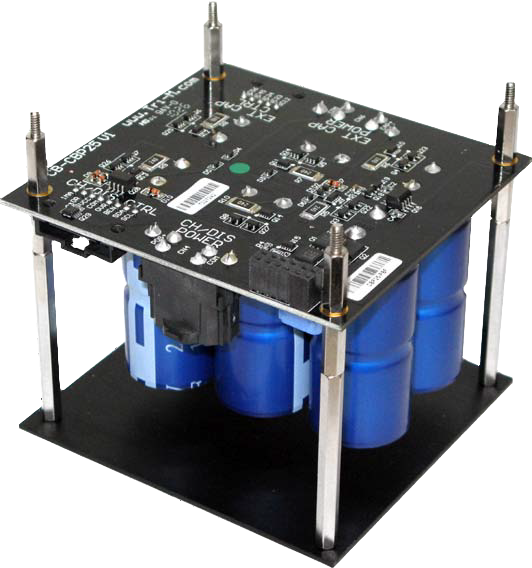

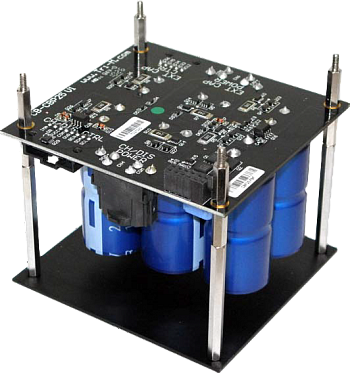

Tri-M CBP Modules are maintenance free, high cycling backup power systems designed for embedded applications that may encounter extreme temperatures or require numerous charge cycles. Many of these applications are found in remote locations where access to the systems is expensive or challenging (think undersea or remote geographies).
CBP Modules are based on a PC/104 form factor and use electric double-layer capacitors (EDLC) or ultra-capacitors rather than conventional batteries. Ultra-capacitors have a high power density compared to conventional electrolytic capacitors so they can charge very quickly and are able to be recharged thousands of times. This is beneficial for applications that have either a large number of battery discharge cycles or where a «maintenance free» solution is required such as remote terminals or mobile data collectors.
When mated with a Tri-M power solution (HESC or HPSC), the complete system will provide proven, battery free, long-life uninterruptible power for embedded applications. The CBP Modules are offered in Farad capacities of 10, 23, 25, 58, 250, and 500 providing estimated backup power run-times of 45 seconds to 45 minutes based on a twenty watt load.
Technical specifications | |
Number of cells in series |
12 (2 strings of cells in parallel) (CBP10) 12 (2 strings of cells in parallel) (CBP23XT) 6 (CBP25) 6 (CBP58) 6 (CBP250) 6 (CBP500) |
Capacitance each cell (Farads) |
10 (CBP10) 23 (CBP23XT) 25 (CBP25) 58.33 (CBP58) 250 (CBP250) 500 (CBP500) |
Total Capacitance (Farads) |
30 (CBP10) 70 (CBP23XT) 150 (CBP25) 350 (CBP58) 1500 (CBP250) 3000 (CBP500) |
Maximum recommended voltage/module |
14.2 (CBP10) 13.8 (CBP23XT) 14.2 (CBP25) 14.2 (CBP58) 14.2 (CBP250) 14.2 (CBP500) |
Maximum Energy Storage in joules (cutoff voltage 7.0V) |
763 (CBP10) 1623 (CBP23XT) 1908 (CBP25) 4451 (CBP58) 19080 (CBP250) 38160 (CBP500) |
Maximum holdup time in minutes |
CBP10: 2.5 @ 5W 1.27 @ 10W 0.63 @ 20W 0.3 @ 40W 0.2 @ 60W CBP23XT: 4.62 @ 5W 2.25 @ 10W 1.16 @ 20W 0.5 @ 40W 0.23 @ 60W CBP25: 6.36 @ 5W 3.18 @ 10W 1.59 @ 20W 0.79 @ 40W 0.53 @ 60W CBP58: 14.8 @ 5W 7.4 @ 10W 3.7 @ 20W 1.85 @ 40W 1.2 @ 60W CBP250: 63.6 @ 5W 31.8 @ 10W 15.9 @ 20W 7.95 @ 40W 5.3 @ 60W CBP500: 127.2 @ 5W 63.6 @ 10W 31.8 @ 20W 15.9 @ 40W 10.6 @ 60W |
Weight |
0.35 lbs (0.16 kg) (CBP10) 0.38 lbs (0.17 kg) (CBP23XT) 0.7 lbs (0.32 kg) (CBP25) 0.82 lbs (0.37 kg) (CBP58) 5.0 lbs (2.27 kg) (CBP250) 8.0 lbs (3.63 kg) (CBP500) |
Environmental and physical specifications |
|
---|---|
Operating temperature | -40°C to +65°C (-40°F to +149°F) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Model | Description |
CBP10 | 10 Farads capacitive backup power module OEM |
CBP23XT | 23 Farads capacitive backup power module OEM |
CBP25 | 25 Farads capacitive backup power module OEM |
CBP58 | 58.33 Farads capacitive backup power module OEM |
CBP250 | 250 Farads capacitive backup power module OEM |
CBP500 | 500 Farads capacitive backup power module OEM |
