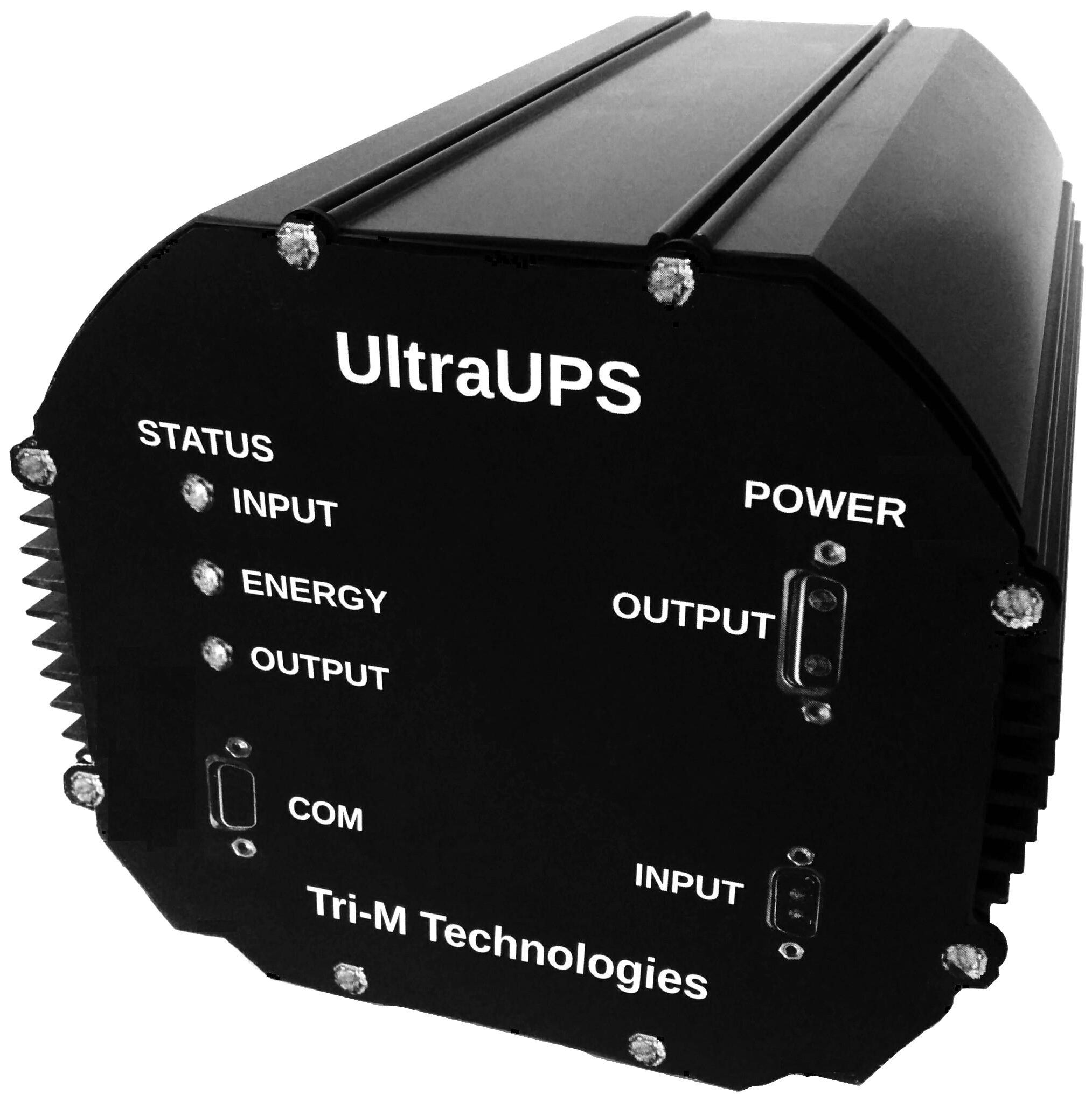

UltraUPS

• Li-Ion and capUPS models
• Supports 15V and 30V solar panels for main power supply
• Load dump and transient protected
• Operating temperature: -40°C to +85°C (-40°F to +185°F) (maximum)

The ultraUPS are a series of backup power solutions for rugged and hostile environments where down time for servicing and power outages is unacceptable or uneconomical.

All the ultraUPS units operate down to −40°C and the ultra capacitor units up to +85°C. The Li-Ion ultraUPS units have an operating temperature range of −40°C to +70°C and backup energy of 2.2 megajoules (617 watt-hours). That’s enough energy to keep Tri-M’s VDX104 running for over two weeks! The ultra capacitor units have an operating temperature range of −40°C to +85°C with backup energy up to 15 kilojoules (4.2 watt-hours).

The 6 amp output of the ultraUPS units can be field adjusted programmed between 5V and 16V. The main input of the ultraUPS protects against vehicle «load dumps» and transients and is designed to MIL‑STD‑1275 requirements. The ultraUPS units also supports power direct from 15V or 30V solar panels.

Advantages

• The rugged aluminum enclosure is equipped with an anti-shock pad
• RS232 communication port for monitoring and control
• Power good signal, remote on/off control line and a 5V standby power
• Supports 15V and 30V solar panels for main power supply
• Programmable 6 amp output voltage between 5V to 16V
• Operating Temperature Range −40°C to +85°C (capUPS models)
• Operating Temperature Range −40°C to +70°C (Li-Ion model)
• Three LEDs provide status of input power, backup energy and output
• Load dump and transient protected
