V12SC-SER(-UPS)
Vendor:Tri-M Technologies Inc.
- Details
- Specification
- Order information
- 7 to 40VDC input range
- Mechanical shock & vibration designed to MIL-STD-810 levels
- Transient surge stopper designed to MIL-STD-1275 levels
- Operating temperature: -40°C to +85°C (-40°F to +185°F) maximum
The V12SC-SER when integrated with a backup power source is a rugged uninterruptable power system (UPS) supplying up to 12V @ 5A and 5V @ 1A for use in remote and hostile environments. The V12SC-SER can be powered from a solar panel or from a vehicle power source. The input power protection is designed to MIL-STD-1275 requirements and can handle transients and load dumps found on heavy vehicles such as large mining trucks.

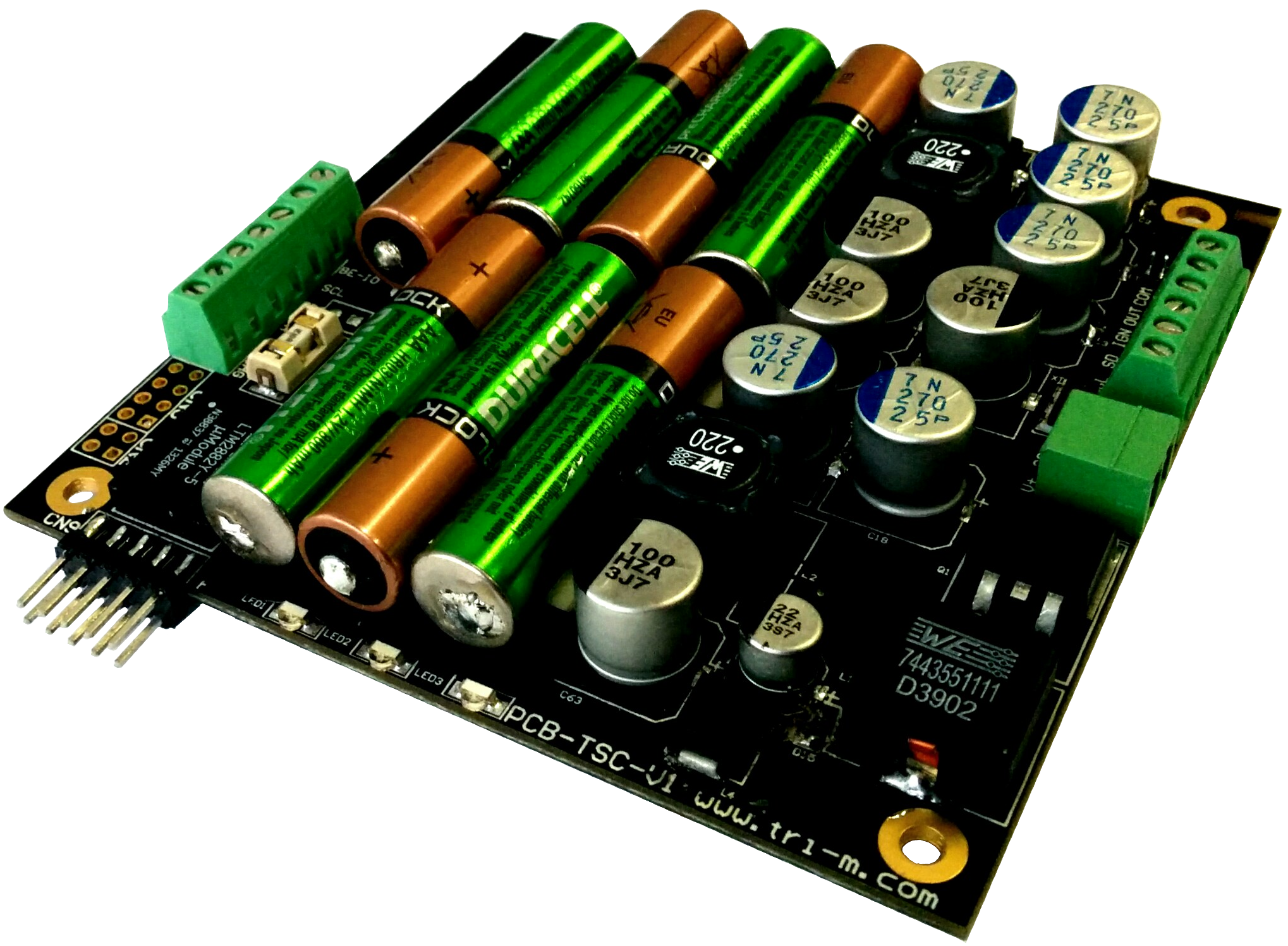

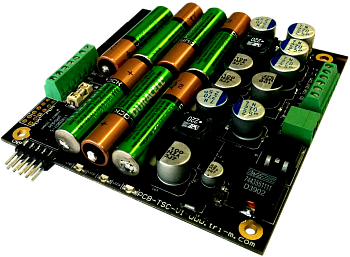

The PC/104 footprint is easily integrated with other modules such as CPU, communication and I/O modules . The universal charger can handle NiCd, NiMh, SLA, Li-Ion, ultra capacitors and SMBus backup power sources. The V12SC-SER-UPS includes on-board NiMh batteries providing 6.3 watt-hr of backup energy.
The V12SC-SER has two RS-232 ports for data monitoring and control. One port has 2500Vrms isolation and includes 5V @ 200mA making it ideal for remote sensors for sunlight intensity and solar panel temperature. The second port includes 5V @ 1A of power for devices such as a low power CPU. The 5V power on the serial ports are independently switchable to the 12V output.
Three full color RGB LED indicators on the V12SC-SER provide operational status and an additional three off board RGB LED indicators can be used for remote status indication. The LEDs can be remotely controlled over the RS232 ports permitting indication of other functions.
Advantages
- Solar panel input compatible. When the energy from the solar panel is insufficient the V12SC supplements by drawing power from the backup power source
- PC/104 footprint and height compatible
- Wide input range, 7V to 40V DC
- Transient suppression designed to MIL-STD-1275 levels
- Mechanical shock & vibration designed to MIL-STD-810 levels
- Multi-chemistry universal charger, supports NiCd, NiMh, SLA, Li-Ion, ultracapacitors, and SMBus
- Wide temperature range
- Isolated RS-232 port for remote sensors and data monitoring complete with isolated 5V to power remote sensors
| Technical specifications | |
| Input Voltage Range | +7V to +40V DC |
| Input Protection |
Transient surge stopper designed to MIL-STD-1275 levels 12A high current fuse on input (Note: V12SC-SER-UPS is limited to a maximum of 35 watts by the capabilities of the onboard NiMh batteries) |
| Output Power |
12V @ 5A 5V @ 1A (on serial port 2, CN10) 5V @ 0.2A (isolated 5V on serial port 1, CN9) |
| Backup Power Charging |
9 to 20V @7A charging 8.4V @ 6.3 watt-hr (22,600 joules) (nominal V12SC-SER-UPS) |
| Backup Power Protection |
High current fuse 10A rated, socketed and field replaceable High temperature thermal cutout 84C rated (V12SC-SER-UPS) |
| Dimensions | PC/104, 90mm x 96mm x 15.24mm (3.55” x 3.775” x 0.6”) |
| Weight |
2.9 oz (82 grams) (V12SC-SER) 6.1 oz (173 grams) (V12SC-SER-UPS) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature |
-40°C to +85°C (-40°F to +185°F) (V12SC-SER) -10°C to 50°C (-14°F to 122°F) (V12SC-SER-UPS, limited by onboard batteries) |
| Model | Description |
| V12SC‑SER‑PBF | PC/104 size, In 7-40VDC, Out 60W Power Supply & Smart Charging, +12V, RS-232, Serial Interface, works with , NiMh, NiCd, Li-Ion, SMBus, SLA, Ultracap. Supports Solar panel for main input, -40°C to +85°C |
| V12SC‑SER‑UPS‑PBF | PC/104 size, In 8-40VDC, Out 60W Power Supply & Smart Charging, +12V, RS-232, Serial Interface, works with , NiMh, NiCd, Li-Ion, SMBus, SLA, Ultracap. -10C-+50C, on-board NiMh AAA , capacity 6.3 watt-hr. Supports solar panel for main power input |
