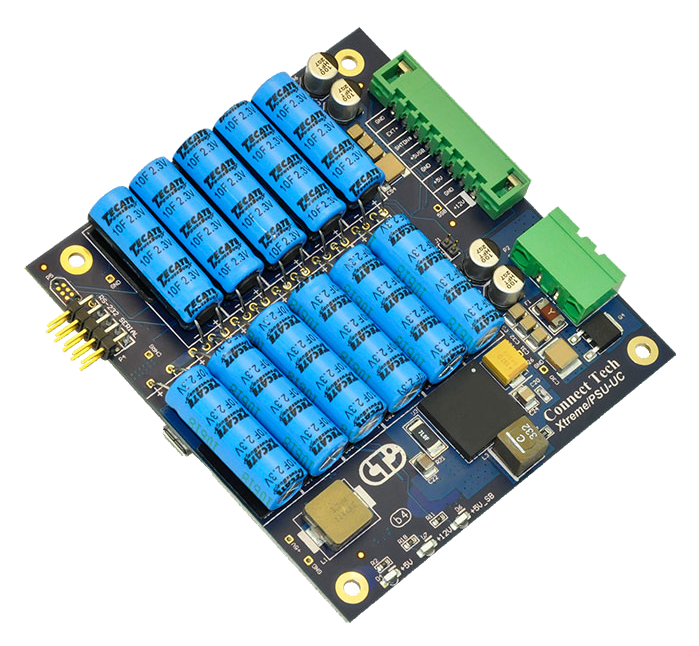

Connect Tech’s Xtreme/PSU-UC is a high efficiency, high powered PC/104 form factor power supply featuring a wide input voltage range that accepts +8 to+36V DC, and provides 115W total output power with +5V, +12V and +5V Standby output voltages.
Xtreme/PSU-UC features on-board Ultracapacitors to provide uninterrupted UPS backup capability. Because it uses Ultracapacitors in the place of batteries the Xtreme/PSU-UC can provide instant shortterm power backup in the event of a power loss or interruption, and be fully charged and ready to provide backup power again within seconds. The Xtreme/PSU-UPS uses rugged components and can operate in the industrial temperature range of −40°C to +85°C / −40°F to +185°F.
Xtreme/PSU-UC can be used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution, and is ideal for use in a broad range of rugged military and industrial applications.
Technical specifications | |
Power Requirements | +8V to +36V DC Input |
Input Protection | Reverse polarity protection, transient voltage suppression and series fuse |
Power Consumption | 115W |
+5V Output | 10A maximum continuous for full -40°C to +85°C range |
+12V Output | 5A maximum continuous for full -40°C to +85°C range |
+5V Standby | 1A maximum continuous for full -40°C to +85°C range |
Output Regulation | Less than 1% |
Output Protection | Overload protection and transient voltage suppression |
I/O | 1 RS-232, 1x USB 3.0 |
Ultra Capacitors | 11x 10F Ultracapacitors in series – 0.909 farads, Energy Capacity – 262 joules, Expansion capabilities for the addition of external, Ultracapacitor modules |
Connectors | Input: 5mm pitch standard terminal block header and mating plug, Output: 3.5mm pitch standard terminal block header and mating plug |
Dimensions | PC/104 Compliant |
Environmental and physical specifications |
|
---|---|
Temperature Range | -40°C to +85°C (-40°F to +185°F) |
Model | Description |
PSG013 | Xtreme/PSU-UC Power Supply |
