Xtreme/PSU-XP
Vendor:Connect Tech
- Details
- Specification
- Order information
- Power requirements: +6V to +36V DC Input
- Reverse polarity and overload protection, transient voltage suppression and series fuse
- Output efficiency: up to 93%
- Operating temperature: -40°C to +85°C

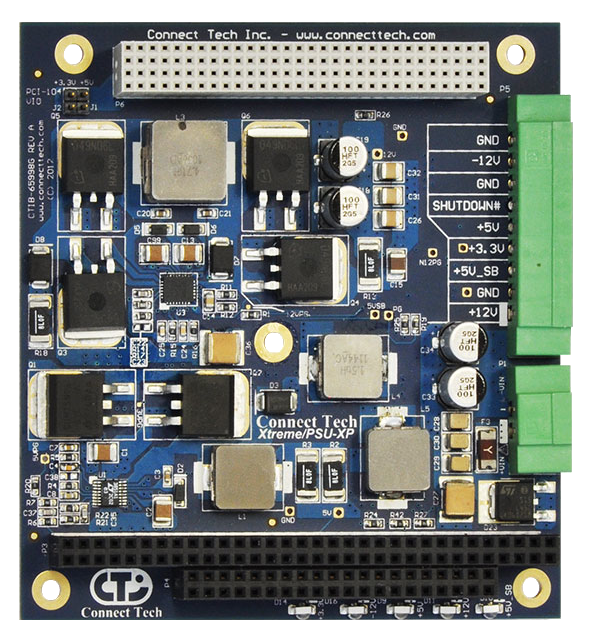

Connect Tech’s Xtreme/PSU-XP is a high efficiency, high powered PC/104 form factor power supply with extended temperature capabilities. Xtreme/PSU-XP provides power to terminal block connectors and powers all of the PC/104 family expansion buses such as PC/104, PC/104-Plus, PCI-104, PCI/104-Express and PCIe/104.
Xtreme/PSU-XP is a highly reliable power supply which provides 154W of total output power with +3.3V, +5V, +12V, −12V and +5V-Standby output voltages. It can be used as a stand-alone power supply to power any other embedded system, or used directly to power any PC/104 stack or single board computer (SBC).
The Xtreme/PSU-XP has a wide input voltage range that accepts +6V to +36V DC and is specifically designed for use in a broad range of rugged applications including military, industrial, and air and ground vehicles.
Xtreme/PSU-XP can be used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution.
| Technical specifications | |
| Power Requirements | +6V to +36V DC Input |
| Power Consumption | 154W |
| Input Protection | Reverse polarity protection, transient voltage suppression and series fuse |
| Output Protection | Overload protection and transient voltage suppression |
| Output Regulation | Less than 1% |
| Output Efficiency | Up to 93% |
| +3.3V Output | 10A maximum continuous for full -40 to +85 range |
| +5V Output | 10A maximum continuous for full -40 to +85 range |
| -12V Output | 0.5A maximum continuous for full -40 to +85 range |
| +5V Standby | 1A maximum continuous for full -40 to +85 range |
| Connectors | Output: 3.5mm pitch standard terminal block header and mating plug |
| Dimensions | PC/104 Compliant |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| PSG007 | Xtreme/PSU-XP power supply, PC/104-Plus Build |
| PSG008 | Xtreme/PSU-XP power supply, PC/104 Build |
| PSG009 | Xtreme/PSU-XP power supply, PCI-104 Build |
| PSG010 | Xtreme/PSU-XP power supply, PCIe/104 Build |
| PSG011 | Xtreme/PSU-XP power supply, PCI/104-Express Build |
| PSG012 | Xtreme/PSU-XP power supply, Embedded Build |
