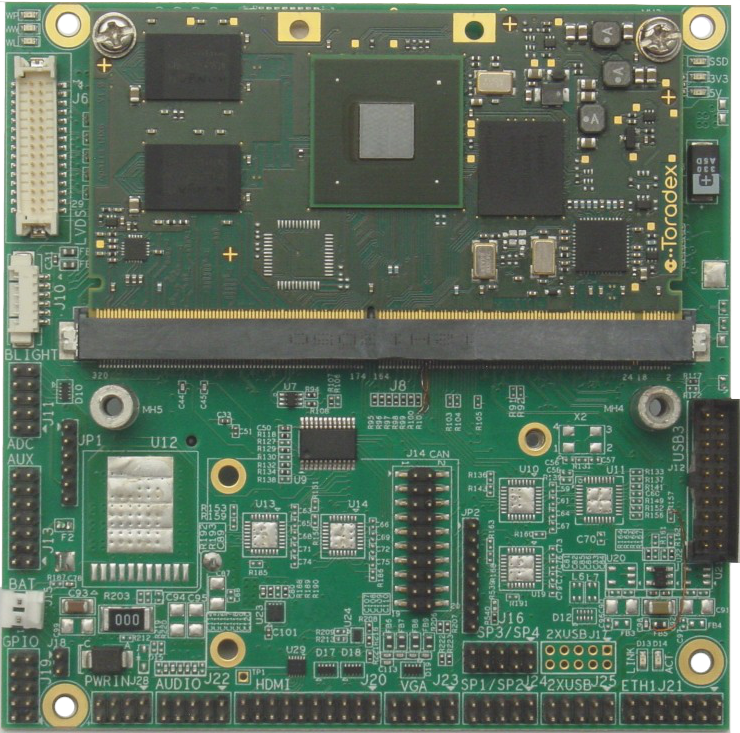

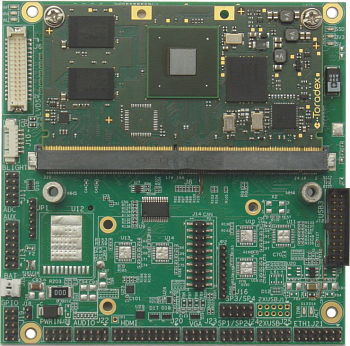

Eaglet SBC

Compact Form Factor I/O Baseboard with installed ARM Computer-on-Modules
  • Details
  • Specification
  • Order information
  • Toradex Apalis family of ARM COMs
  • A wide variety of standard and industrial I/O
  • PCIe MiniCard socket (with SIM socket)
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)

The Eaglet SBC combines the Toradex Apalis family of ARM COMs with a wide variety of standard and industrial I/O features to create off-the-shelf solutions for ARM-based industrial embedded computing. Eaglet SBCs include the selected ARM module and heat sink pre-installed on the Eagle baseboard. Eaglet SBCs include the selected ARM module and heat sink pre-installed on the Eaglet baseboard.

Eaglet provides a long life, scalable platform for ARM-based application development. Toradex’s Apalis module family currently contains three members, with the newest module, Apalis TK1, recently introduced in July 2016. The Apalis form factor, as well as all processors used on the modules, have long life commitments from their suppliers, ensuring long life availability of the complete product. Customers have great flexibility in selecting not only the price/performance characteristics of the installed COM, but multiple configurations including the number of cores, memory and flash size, and operating temperature range.

Most I/O features can be configured to meet any customer’s specific requirements as well as cost and power consumption targets. This includes removal of unneeded features and I/O connectors plus additional ruggedization services.

This product is also available as a baseboard without the ARM module installed. Configure your own Eaglet solution! Click here

Technical specifications
Supported COMs Toradex Apalis iMX6 800MHz or 1GHz ARM Cortex A9
Toradex Apalis T30 1.4GHz ARM Cortex A9
Toradex Apalis TK1 2.2GHz ARM Cortex A15
Networking 1 Gigabit Ethernet port
Serial ports 2 RS-232/422/485 ports with software configuration 2 RS-232 ports
USB ports Up to 4 USB 2.0 ports
Mass storage 1 micro SD & 1 mSATA socket
Audio HD audio
Data acquisition 4 12-bit A/D, 4 PWM
8 GPIO, 3.3V logic levels
Connectivity 1 I2C, 1 SPI
I/O expansion PCIe MiniCard socket (with SIM socket)
Input power +5VDC
Dimensions 4.0” x 4.0” (102mm x 102mm)

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F) capable Dependent on Apalis COM selected
Shock MIL-STD-202G compatible
Vibration MIL-STD-202G compatible
Operating humidity 10-95% relative humidity, non-condensing
RoHS Compliant
Model Description
EGLT-MX6-Q2G-XT Eaglet SBC, i.MX6 quad core CPU, 2GB RAM, wide temp
EGLT-T30-Q1G-XT Eaglet SBC, T30 quad core CPU, 1GB RAM, wide temp
Cables and accessories
PNL-EGL-01 Eagle / Eaglet Panel I/O Board
CK-EGLT-01 Eaglet cable kit, no HDMI cable
CK-EGLT-02 Eaglet cable kit, with HDMI cable
SDK-EGL-MX6-LNX Eagle/Eaglet Linux SDK for Apalis i.MX6 model
SDK-EGL-T30-LNX Eagle/Eaglet Linux SDK for Apalis T30 model
DK-EGLT-MX6Q2G-LNX EagleT SBC with i.MX6 CPU, Linux OS, and cable kit
DK-EGLT-T30Q1G-LNX Eaglet SBC with T30 CPU, Linux OS, and cable kit
