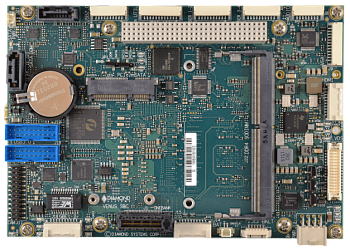

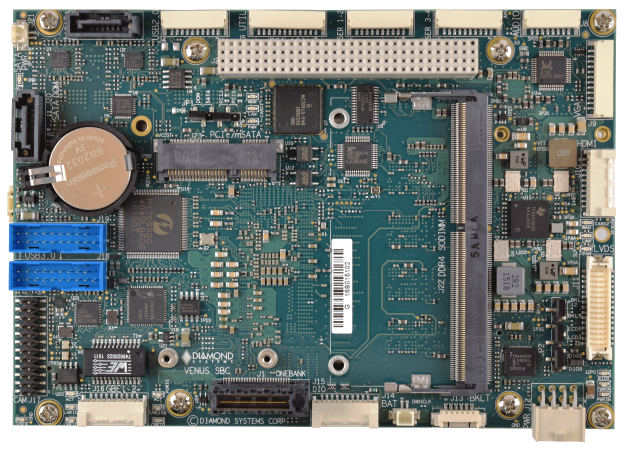

Based on the «Skylake» or «Kaby Lake» 6th and 7th generation processors, Venus offers the highest available CPU performance in a small form factor rugged SBC with modest power consumption.
It incorporates a full suite of rugged features such as soldered memory, latching connectors, a thicker PCB, and true -40/+85ºC operating temperature, making it suitable for the most demanding vehicle applications.
High I/O density, multiple expansion sockets, rugged design, modest power consumption of 14W, and wide temperature operation combine to make Venus an extremely attractive option for applications requiring high CPU performance or ruggedness.
Technical specifications | |
Processor |
Intel "Skylake" i7-6600U 2.6GHz / i5-6300U 2.4GHz, 2 cores 4 threads Intel “Kaby Lake” 7th Gen Core i7-7660U 2.8GHz |
Chipset | Integrated onto processor package |
Memory | Up to 20GB: 4GB memory down + socket for 4/8/16GB DDR4-2133 SODIMM / RSODIMM |
Graphics | 3 independent displays: HDMI, VGA, and LVDS, max resolution 4096 x 2304 |
Ethernet | 2 Gigabit ports: 1 from chipset with i219 PHY, 1 from i210 on PCIe x1 lane, on-board LEDs for status |
USB |
4x USB 3.0/2.0 ports on Intel standard USB 2.0 connectors + 2x USB 2.0 on separate connector 2x USB 2.0 via PCIe/104 OneBank expansion connector 2x USB 2.0 via PCIe MiniCard sockets |
Serial | 4x multiprotocol RS-232/422/485, all features programmable including termination |
Audio | HDA audio with Line in, Line out, and Mic in, ALC892 CODEC |
Digital I/O | 16 lines with bitwise programmable direction, configurable 3.3V/5V logic levels, and configurable pull-up/down resistors |
Mass storage | 3 SATA interfaces: SATA DOM, Standard SATA, mSATA support in one MiniCard socket |
Security | TPM module Infineon SLB 9670XQ2.0 |
Expansion |
MiniCard sockets: 1 socket supports full size MiniCard / mSATA modules 1 socket supports full / half size MiniCard OneBank Plus (PCIe/104 + PCI-104) socket with 22mm stacking height Stackable I/O: 2 Full size (51mm length) Supports up to 4 PCIe x1 Type 1 / Type 2 / OneBank I/O modules + up to 2 USB interface modules Supports up to 4 PCI-104 expansion modules CSI camera serial interface |
Connectors | Latching, JST GH / GHD series |
Form factor | "3.5 inch" form factor: 5.75" x 4.0" / 146 x 102mm |
Cooling | Conduction cooling heat spreader on bottom |
Input voltage | 9-18VDC |
Power consumption | 14W under typical operating conditions |
Environmental and physical specifications |
|
---|---|
Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
Model | Description |
VNS776KL‑4GD | Venus SBC, i7-7600U, 4GB RAM, DIO |
VNS766-4GD | Venus SBC, i7-6600U 2.6GHz CPU, 4GB RAM |
VNS563-4GD | Venus SBC, i5-6300U 2.4GHz CPU, 4GB RAM |
Cables and accessories | |
CK-VNS-01 | Venus SBC Cable Kit, No HDMI Cale |
CK-VNS-02 | Venus SBC Cable Kit, With HDMI Cable |
DK-VNS766-WE10 | Venus SBC development kit, includes VNS766-4GD SBC, Windows 10 OS on SATA DOM, and cable kit |
DK-VNS766-LNX | Venus SBC development kit, includes VNS766-4GD SBC, Linux OS on SATA DOM, and cable kit |
SDK-VNS-LNX | Venus SBC software development kit, includes Linux OS on SATA DOM |
SDK-VNS-WE10 | Venus SBC software development kit, includes Windows 10 OS on SATA DOM |
