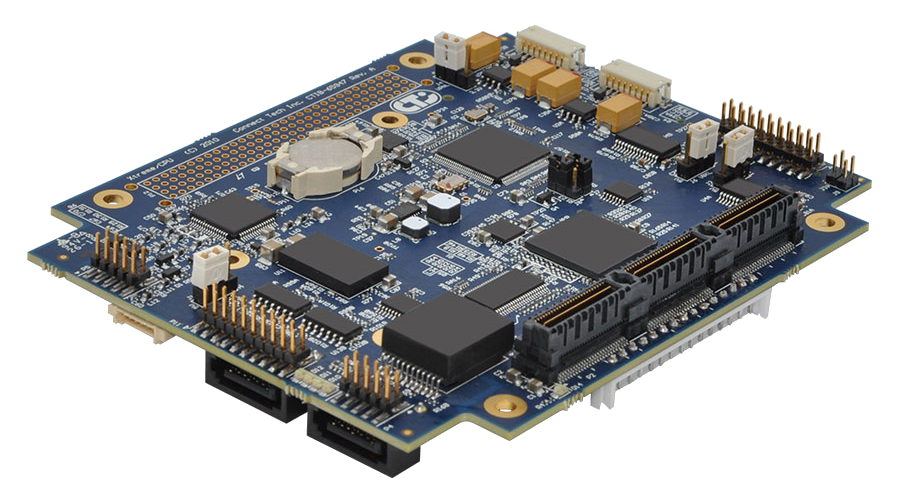

Connect Tech’s Xtreme/SBC is a small single board computer that utilizes the PCIe/104 form factor with 4×1 PCIe lanes.
Xtreme/SBC conveniently provides on‑board connectors allowing for instant access to a variety of features including 2x SATA, 1x Gigabit Ethernet, 4x USB 2.0, LVDS and VGA Video, and 2x RS-232 and 2x RS-422/485.
This single board computer offers a variety of embedded processor solutions including AMD, Intel Atom, Freescale, Texas Instruments, NVIDIA and VIA.
Technical specifications | |
Processor | Intel & ARM based processors |
Memory | Up to 2 GB |
On-Board Flash Disk | Up to 32GB |
Graphics | Intel GMA 500, OpenGL/OpenVG, POWERVR SGX, NVIDIA ULP (CPU dependent) |
PCIe Lanes | Up to 4x PCIe x1 |
Display Interface | VGA, LVDS, DVI (CPU dependent) |
External Storage | Up to 2x SATA |
USB | Up to 4x USB 2.0 |
Ethernet | Gigabit Ethernet (10/100/1000) (CPU dependent) |
Micro SD, Video Input | Micro SD, Video Input (CPU dependent) |
Serial Interface | 2x RS-232, 2x RS-485, PS/2 keyboard and mouse |
Power Requirements | ATX Supply Input |
Dimensions | Fully PCI/104 compliant |
Environmental and physical specifications |
|
---|---|
Operating Temperature | -20°C - 70°C (-4°F -158°F) (CPU dependent) |
Model | Description |
QCG001 | PCIe/104 Single Board Computer |
QCG007 | PCIe/104 Single Board Computer. USB Port 1 configurable for host or client |
CKG001 | QCG001 Optional Cable Kit |
CBG065 | Gigabit Ethernet Cable |
CBG070 | VGA |
CBG071 | USB (dual) |
CBG072 | Keyboard and Mouse |
CBG073 | Serial (dual) |
CBG074 | ATX Power |
CBG075 | 5V / 12V only power |
CBG076 | LVDS un-terminated |
CBG078 | Backlight un-terminated |
CBG079 | SATA |
CBG080 | Power Button |
CBG081 | Fan Power |
