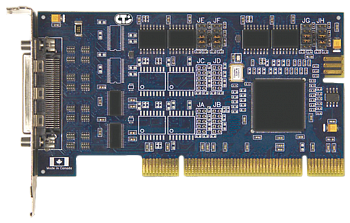

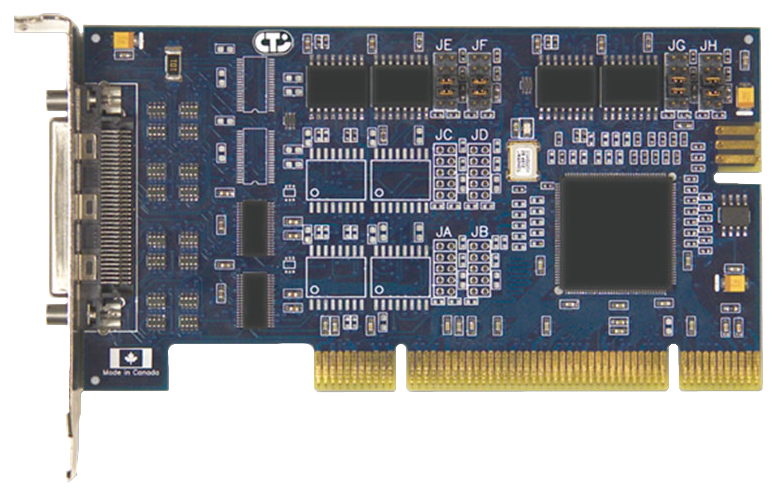

BlueStorm/LP RS-485
RS-422/485 adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
* NA
Discontinued product
Please contact us for availability or replacement options
Please contact us for availability or replacement options
- 2, 4 or 8 ports
- Hardware selectable RS-232/422/485
- DB-9 and DB-25 fan out cables, DB-9 external I/O box
- Operating temperature: 0°C to +70°C (+32°F to +158°F)
The low profile BlueStorm/LP is the perfect fit for your high density chassis or low profile PC. Fully Universal PCI 2.3 compliant, this RS-422/485 adapter can be installed in either a 3.3V or 5V system, and fits into low profile and standard height PCI computers with the change of a bracket. This enables you to connect multiple devices to your system, taking full advantage of the space saving qualities of its MD1 low profile design without sacrificing performance. Data speeds up to 1.8432 Mbps (RS-422/485) ensure your data acquisition, office automation, POS, self-service kiosk or scientific/instrumentation applications communicate in a reliable, cost-effective manner.
The BlueStorm/LP supports three RS-422/485 modes: full duplex (four wire) with RTS/CTS flow control, half duplex (two wire) with auto TxD echo cancellation, and multi-drop (four wire) full duplex communications of multi-drop devices.
Available with surge suppression or without and DB-9 male cables, the boards can be ordered with low profile bracket, standard sized bracket or both for the ultimate flexibility.
The BlueStorm/LP comes in 2, 4 and 8 port RS-422/485 models as well as 1 plus 1, 2 plus 2, and 4 plus 4 RS-232 plus RS-422/485 models.
| Technical specifications | |
| Ports | 2, 4 or 8 ports |
| Electrical Interfaces | Hardware selectable RS-232/422/485 |
| Connectors | DB-25 fan out cable, DB-9 external I/O box, DB-9 fan out cable |
| Control Signals | RS-232: TxD, RxD, RTS, CTS, SG, RI, DTR, DSR, DCD, RS-422/485: TxD +/- , RxD +/- , RTS +/- , CTS +/-, SR |
| Baud Rate | RS-232: 50 bps to 921.6 Kbps, RS-422/485: 50 bps to 1.8432 Mbps |
| Interrupts | Assigned by Plug and Play resources |
| Memory Addresses | Assigned by Plug and Play resources |
| UART Type | Octal PCI UART with up to 64 byte transmit and receive FIFO buffer |
| Dimensions | 147.02mm x 106.05mm (5.788” x 4.175”) |
| Bus | 32-bit Universal PCI |
| Operating System | Linux, QNX 4.X/6.X, Windows 2000/CE/XP/XP x64/XPe/Server 2003/ Server 2003 x64/Vista |
| Power Consumption | 100 mA min, 5V @ 875 mA max. |
| Power Requirements | Any available 3.3V or 5V PCI slot |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Storage Temperature | -55°C to +105°C (-67°F to +221°F) |
| Humidity | 5 to 95% non-condensing |
| Regulatory Approvals |
FCC Class A ICES-003 Class A EN50082-2 EN 55022 Class A EN 55024 |
| Model | Description |
| BL009-01 | BlueStorm/LP in a low profile chassis, 2 ports with CB002 cable and additional standard height bracket |
| BL010-01 | BlueStorm/LP in a low profile chassis, 2 ports with CB002 cable and additional standard height bracket. Includes surge suppression. |
| BL011-01 | BlueStorm/LP, to be installed in a standard height chassis, 2 ports with CB002 cable and additional low profile mounting bracket |
| BL012-01 | BlueStorm/LP, to be installed in a standard height chassis, 2 ports with CB002 cable and additional low profile mounting bracket. Includes surge suppression. |
| BL021-01 | BlueStorm/LP in a low profile chassis, 4 ports with CB003 cable and additional standard height bracket |
| BL022-01 | BlueStorm/LP in a low profile chassis, 4 ports with CB003 cable and additional standard height bracket. Includes surge suppression. |
| BL023-01 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CB003 cable and additional low profile mounting bracket |
| BL024-01 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CB003 cable and additional low profile mounting bracket. Includes surge suppression. |
| BL028-01 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CB003 cable and additional low profile mounting bracket. Provides two RS-232 ports and two RS-422/485 ports. |
| BL036-01 | BlueStorm/LP in a low profile chassis, 8 ports with CB009 cable and additional standard height bracket |
| BL037-01 | BlueStorm/LP in a low profile chassis, 8 ports with CB009 cable and additional standard height bracket. Includes surge suppression. |
| BL038-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CB009 cable and additional low profile mounting bracket |
| BL039-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CB009 cable and additional low profile mounting bracket. Includes surge suppression. |
| BL040-01 | BlueStorm/LP in a low profile chassis, 8 ports with CB009 cable and additional standard height bracket. Provides four RS-232 ports and four RS-422/485 ports. |
| BL041-01 | BlueStorm/LP in a low profile chassis, 8 ports with CB009 cable and additional standard height bracket. Includes surge suppression. Provides four RS-232 ports and four RS-422/485 ports. |
| BL042-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CB009 cable and additional low profile mounting bracket. Provides four RS-232 ports and four RS-422/485 ports. |
| BL043-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CB009 cable and additional low profile mounting bracket. Includes surge suppression. Provides four RS-232 ports and four RS-422/485 ports. |
| BL048-01 | BlueStorm/LP in a low profile chassis, 8 ports with CB009 cable and additional standard height bracket. Provides six RS-232 ports and two RS-422/485 ports. |
| BL051-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CB009 cable. Includes surge suppression. Provides six RS-232 ports and two RS-422/485 ports. |
| BLG010-01 | BlueStorm/LP in a low profile chassis, 2 ports with CBG002 cable and additional standard height bracket. RoHS compliant and includes surge suppression. |
| BLG012-01 | BlueStorm/LP, to be installed in a standard height chassis, 2 ports with CBG002 cable and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG022-01 | BlueStorm/LP in a low profile chassis, 4 ports with CBG003 cable and additional standard height bracket. RoHS compliant and includes surge suppression. |
| BLG022-05 | BlueStorm/LP in a low profile chassis, 4 ports with CBG007 cable and additional standard height bracket. RoHS compliant and includes surge suppression. |
| BLG024-01 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CBG003 cable and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG024-05 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CBG007 cable and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG026-01 | BlueStorm/LP in a low profile chassis, 4 ports with CBG003 and additional standard height bracket. Provides two RS-232 ports and two RS-422/485 ports. RoHS compliant. |
| BLG026-05 | BlueStorm/LP in a low profile chassis, 4 ports with CBG007 and additional standard height bracket. Provides two RS-232 ports and two RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG028-01 | BlueStorm/LP, to be installed in a standard height chassis, 4 ports with CBG003 cable and additional low profile mounting bracket. RoHS compliant. |
| BLG037-01 | BlueStorm/LP in a low profile chassis, 8 ports with CBG009 cable and additional standard height bracket. RoHS compliant. |
| BLG037-05 | BlueStorm/LP in a low profile chassis, 8 ports with CBG026 cable and additional standard height bracket. RoHS compliant and includes surge suppression. |
| BLG039-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG009 cable and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG039-03 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with IOBG08BLV1 I/O box and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG039-05 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG026 cable and additional low profile mounting bracket. RoHS compliant and includes surge suppression. |
| BLG041-01 | BlueStorm/LP in a low profile chassis, 8 ports with CBG009 cable and additional standard height bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG041-03 | BlueStorm/LP in a low profile chassis, 8 ports with IOBG08BLV1 I/O box and additional standard height bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG041-05 | BlueStorm/LP in a low profile chassis, 8 ports with CBG026 cable and additional standard height bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG043-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG009 cable and additional low profile mounting bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG043-03 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with IOBG08BLV1 I/O box and additional low profile mounting bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG043-05 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG026 cable and additional low profile mounting bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG043-09 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG033 cable and additional low profile mounting bracket. Provides four RS-232 ports and four RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG049-05 | BlueStorm/LP in a low profile chassis, 8 ports with CBG009 cable and additional standard height bracket. Provides six RS-232 ports and two RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG051-01 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG009 cable and additional low profile mounting bracket. Provides six RS-232 ports and two RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG051-03 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with IOBG08BLV1 I/O box and additional low profile mounting bracket. Provides six RS-232 ports and two RS-422/485 ports. RoHS compliant and includes surge suppression. |
| BLG051-05 | BlueStorm/LP, to be installed in a standard height chassis, 8 ports with CBG026 cable and additional low profile mounting bracket. Provides six RS-232 ports and two RS-422/485 ports. RoHS compliant and includes surge suppression. |
| CB002 | 2x DB-9 Male |
| CB003 | 4x DB-9 Male |
| CB009 | 8x DB-9 Male |
| CBG002 | 2x DB-9 Male. RoHS compliant. |
| CBG003 | 4x DB-9 Male. RoHS compliant. |
| CBG007 | 4x DB-25 Male. RoHS compliant. |
| CBG009 | 8x DB-9 Male. RoHS compliant. |
| CBG026 | 8x DB-25 Male. |
| CBG033 | 8x DB-9 Male. 1.220m |
| IOBG08BLV1 | 8x DB-9 Male I/O Box. RoHS compliant. |
