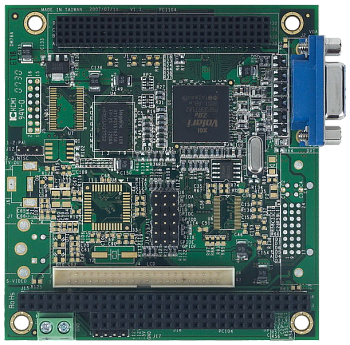

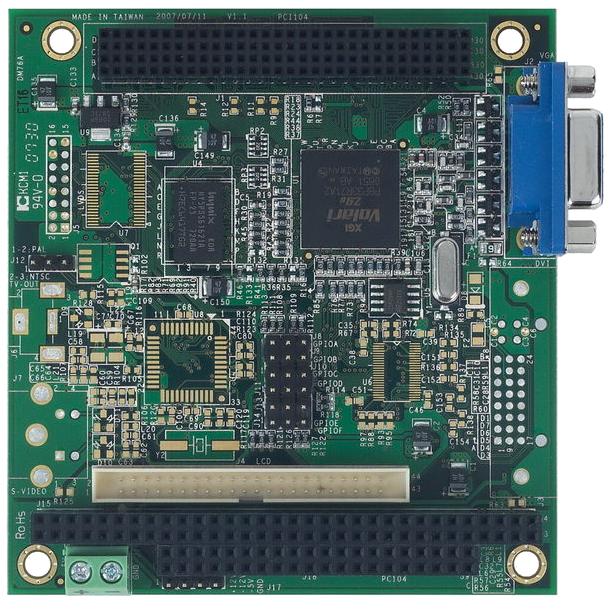

VSX-2812S PC/104-Plus VGA/LCD Module. Features Volari Z9s Chipset, onboard 32MB VGA Memory. Supports VGA, Flat Panel Display. PC/104+ standard compliant.
Technical specifications | |
Chipset |
XGI Volari Z9s Chipset 32-bit PCI bus Support 12-bit, 18-bit, and dual 12-bit Digital Interface Support VGA, and Flat Panel Display |
BIOS | VGA/LCD BIOS |
Video Memory | Onboard 32MB DDR2 |
Resolution | Resolution up to 1600 x 1200 @ 16M colors |
Bus | PC/104+ standard compliant |
Connectors |
2.0mm 44-pin box header for LCD x1 2.54mm 4-pin header for +12V, -12V, -5V DC-in x1 External 15-pin D-Sub female connector for VGA x1 |
Power Requirements | +5V @ 200mA |
Weight | 77 g |
Board Size | 96mm X 90 mm (3.77 x 3.54 inches) |
Environmental and physical specifications |
|
---|---|
Operating temperature |
-20°C to +70°C (-4°F to +158°F) -40°C to +85°C (-40°F to +185°F) (Optional) |
Model | Description |
VSX-2812S | PC/104+VGA/LCD Module |
