Cellular/Satellite M2M
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • Microchip PIC32 Microcontroller
  • Drop-in replacement for future standards
  • Rugged extruded aluminum enclosure
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

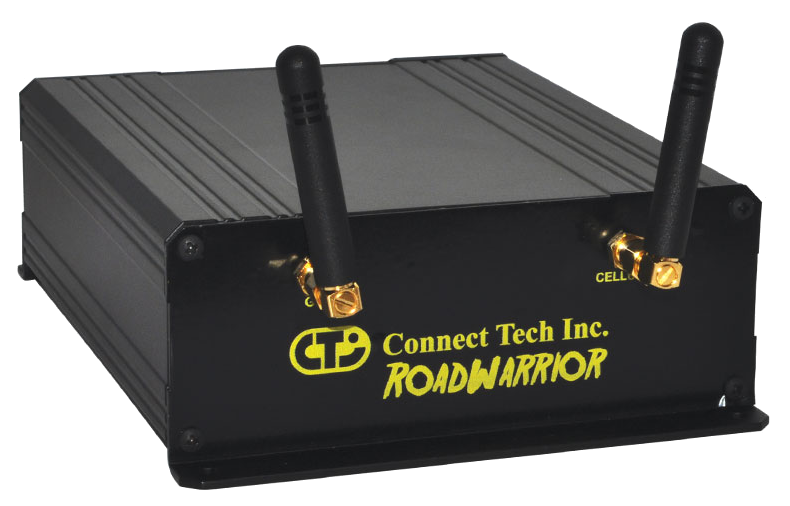

Connect Tech’s RoadWarrior enables remote monitoring, controlling and collecting of data from multiple I/O interfaces through a wireless cellular data link or Low Earth Orbit (LEO) satellite.

RoadWarrior can be controlled from any Internet connected device. This product is designed for rugged mobile, mission-critical and industrial strength applications that require enhanced wireless M2M (machine-to-machine) connectivity.

RoadWarrior can be configured to operate on any existing cellular network standard and frequency bands today, with drop-in replacement upgradeability to operate on future cellular networks. RoadWarrior also has the capability of operating on LEO satellite networks.

With a wide range of interfaces including RS-232, RS-485, CAN, GPS, Bi-directional GPIO, High Voltage Isolated GPIO and ADC’s, RoadWarrior is ideal for many remote or mobile application environments including transportation and military applications.

Technical specifications
Cellular Cellular Networks: HSPA/EV-DO/UMTS/EDGE/GPRS/CDMA

Frequency Bands: 3G/3.5G: 850/1900/2100 MHz, 2G/2.5G: 850/900/1800/1900 MHz

Drop-in replacement for future mobile telephony, standards, networks and frequency bands
GPS NMEA-0183 V3.01 compliant GPS message
Satellite Optional satellite communication capabilities via Low Earth Orbit (LEO) Satellites
Serial 2x RS-232, 2x RS-485
Bus 2 x CAN 2.0b
GPIO 16-bit, 3 bits optically isolated inputs (0 ~ +40V DC), 3 bits optically isolated outputs (0 ~ +40V DC)
ADC 4 channels of 10-bit / 1Msps ADC
I/O 2.5mm pitch terminal block headers
Main Control Unit Microchip PIC32 Microcontroller (PIC32MX775) which can be optionally configured end-users application code
Mechanical Enclosure Details Rugged extruded aluminum enclosure with mounting flanges. 5.275” (width) x 2.000” (height) x 6.000” (length)
Power Requirements +9V to +36V

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
RDG001 RoadWarrior GSM / GPRS Model
RDG002 RoadWarrior HSPA Model
RDG003 RoadWarrior EV-DO Model
RDG004 RoadWarrior CDMA Model
