Cogswell
Vision System, Powered by NVIDIA Jetson TX2/TX2i
Vendor:Connect Tech
- Details
- Specification
- Order information
- Designed for use with GigE Vision Cameras
- 5x Gigabit Ethernet Channels
- A single +12V input; No external 48V PoE power required
- Operating temperature: -20°C to +80°C (-4°F to +176°F)

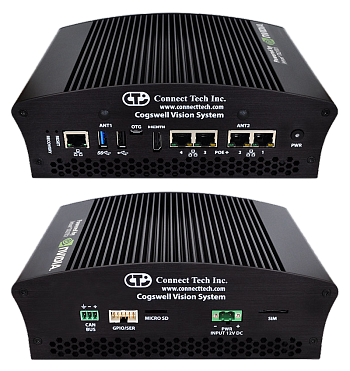

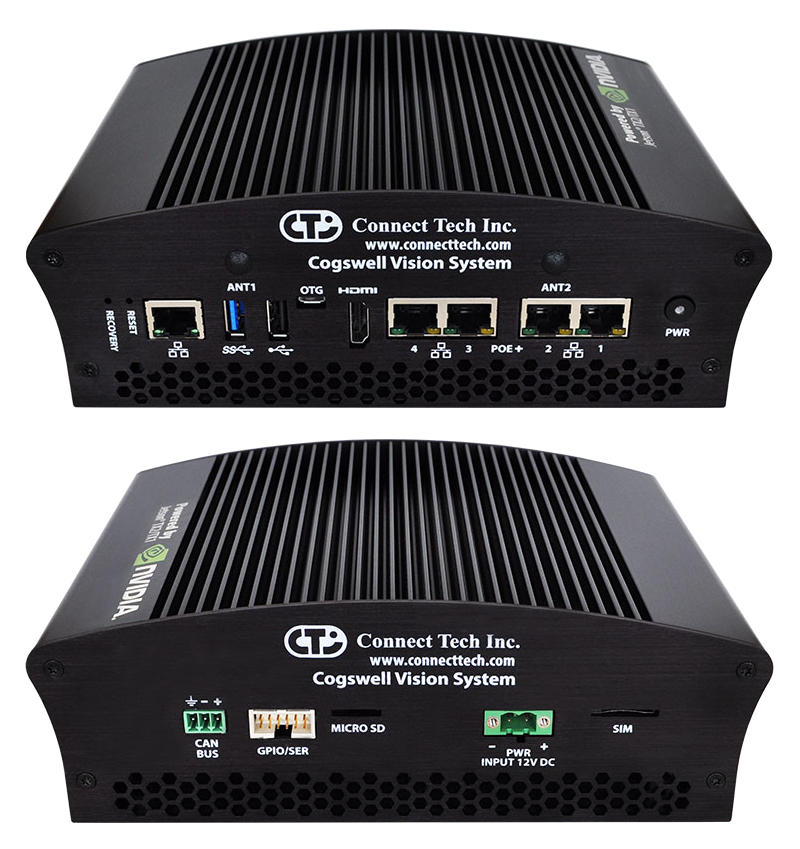

Connect Tech’s Cogswell Vision System is powered by NVIDIA® Jetson™. This system is pre-integrated with the NVIDIA® Jetson™ TX2/TX2i supercomputer-on-module, providing 256 CUDA® cores on NVIDIA® Pascal™ architecture. Cogswell Vision System comes in a black anodized metal enclosure and is both fanless and cable free.
This system is ideal for Machine Vision applications allowing up to 5 Gigabit Ethernet cameras to be connected, 4 of which can be powered by on board Power over Ethernet. This system also comes equipped with USB 3.0, USB 2.0, USB OTG, RS-232, miniPCIe and mSATA expansion.
| Technical specifications | |
| Compatibility | NVIDIA Jetson TX1/TX2/TX2i |
| GPU |
Jetson TX1: NVIDIA Maxwell™, 256 CUDA cores (998 MHz), Jetson TX2: NVIDIA Pascal™, 256 CUDA cores (Up to 1.3 GHz) |
| CPU |
Jetson TX1: 64-bit ARM® A57 CPUs, Jetson TX2: HMP Dual Denver 2/2MB L2 + Quad ARM® A57/2MB L2 (Up to 2 GHz) |
| Mechanical Enclosure Details | Black Anodized Aluminum Enclosure, Integrated Finned Passive Heatsink, Fanless Solution |
| Networking |
5x Gigabit Ethernet Ports: 1x Gigabit Ethernet (10/100/1000) • 4x IEEE 802.3af (POE) 15.4W PSE Gigabit Ethernet Ports OR • 2x IEEE 802.3at (POE+) 25.5W PSE Gigabit Ethernet Ports |
| Display | 1x HDMI 1.4a (Type-A vert RA), Supports up to HDMI 2.0 UHD 4K [2160p] at 60Hz |
| USB | 1x USB 3.0 Port (Type-A); 1x USB OTG (Micro-AB); 1x USB 2.0 (Type-A); 1x USB 2.0 to miniPCIe Slot |
| Storage | 1x microSD Card Slot, 1x mSATA Full Sized Slot |
| UART Type | 2x RS-232 |
| I2C | I2C Channel 1 @ 3.3V IO |
| CAN | 1x CAN 2.0b Port |
| GPIO | 4 bits of 3.3V (level shifted GPIO) |
| Antenna | 2x SMA Antennas |
| Expansion | 1x miniPCIe Slot with PCIe & USB |
| LEDs | GbE LEDs, PSU PGOOD, RESET#_OUT |
| Power Requirements | +12V DC Input Only, No external 48V is required, carrier creates its own PoE power |
| Dimensions | 215mm x 154mm x 72.2mm |
| Buttons | Power, Reset, Recovery |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Model | Description |
| CVS001‑21 | Cogswell Vision System with NVIDIA® Jetson™ TX2. (North America) |
| CVS001‑22 | Cogswell Vision System with NVIDIA® Jetson™ TX2 (Europe) |
| CVS001-23 | Cogswell Vision System with NVIDIA® Jetson™ TX2 (Israel) |
| CVS001-31 | Cogswell Vision System with NVIDIA® Jetson™ TX2i (North America) |
| CVS001-32 | Cogswell Vision System with NVIDIA® Jetson™ TX2i (Europe) |
| CVS001-33 | Cogswell Vision System with NVIDIA® Jetson™ TX2i (Israel) |
| MSG084 | Mounting brackets |
| CBG247 | Micro USB to USB Type-A Male |
| CBG258 | MISC I/O Cable: 2×6 Pin (0.100″ pitch) to Flying lead (12″ length) |
