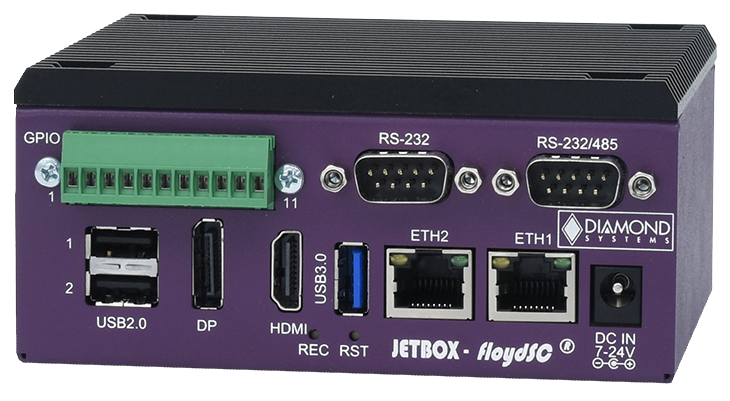

Jetbox-Floyd SC

Compact NVIDIA Jetson Nano / NX / TX2 NX AI‑at-the-edge computer system
  • Details
  • Specification
  • Order information
  • Based on Floyd SC carrier board
  • Choice of Nano, NX, or TX2 NX module
  • Size: 124x99x56mm / 4.9x3.9x2.2”
  • Operating Temperature: -25°C to +80°C

Jetbox-Floyd SC provides a complete deployable solution for AI at the edge utilizing the Nvidia XN / TX2 NX / Nano compact GPU modules. JetBox-Floyd SC includes the Floyd SC carrier board and the selected Jetson module with Linux OS loaded, integrated into a compact steel + aluminum enclosure ready for use. The integrated heat sink cover provides cooling — no fan is required. An internal M.2 socket supports up to 2TB additional storage beyond the flash included on the Jetson module. Shelf and DIN rail mounting are supported. A 12V AC adapter is included with the system.
With the NX module installed, one CAN port can be made available with an internal cable that replaces one of the serial ports on the front panel.

General Purpose Digital I/O

Jetbox Floyd-SC provide an 11-position screw terminal block for GPIO features. The terminal block supports 8 GPIO, 2 ground connections, and 1 power connection, which also selects the GPIO voltage levels. Power is selectable for 3.3V / 5V using a jumper on the main board (requires removing the top cover).

Base Unit for DIY Users

A «base unit» system kit is available for customers who want to buy and install their own Jetson modules. The kit includes the entire system except for the module. System assembly and operating system programming are required to utilize this base unit.

Technical specifications
Nvidia GPU modules Choice of Nano, NX, or TX2 NX module
Gigabit Ethernet Single/dual Gigabit Ethernet ports
HDMI/DisplayPort HDMI + DisplayPort
USB 1x USB 3.0, 2x USB 2.0
GPIO 8 GPIO lines with screw terminal connection
Serial 1 RS-232 and 1 RS-232/485
CAN 1 CAN port optional (replaces 1 serial port)
Power input 7-24VDC
Size 124x99x56mm / 4.9x3.9x2.2” WxDxH
Operating system JetPack-based Linux OS preprogrammed, ready to run

Environmental and physical specifications

Operating Temperature -25°C to +80°C (full temperature range of installed Jetson modules)
Model Description
JB-FLDSC-NAO-02 JetBox-FloydSC with Nano module, FLDSC-BB02 carrier board
JB-FLDSC-TNX-02 JetBox-FloydSC with TX2 NX module, FLDSC-BB02 carrier board
JB-FLDSC-XNX-02 JetBox-FloydSC with Xavier NX module, FLDSC-BB02 carrier board
JB‑FLDSC‑BASE‑01 JetBox Floyd-SC system kit with FLDSC-BB01 carrier board; includes all components except for Jetson module
JB‑FLDSC‑BASE‑02 JetBox Floyd-SC system kit with FLDSC-BB02 carrier board; includes all components except for Jetson module
