Rudi
Embedded System with NVIDIA Jetson TX1/TX2/TX2i
Vendor:Connect Tech
- Details
- Specification
- Order information
- NVIDIA Jetson TX1/TX2/TX2i
- 8GB RAM
- Weight: 0.703kg
- Operating temperature: -20°C to +80°C (-4°F to +176°F)

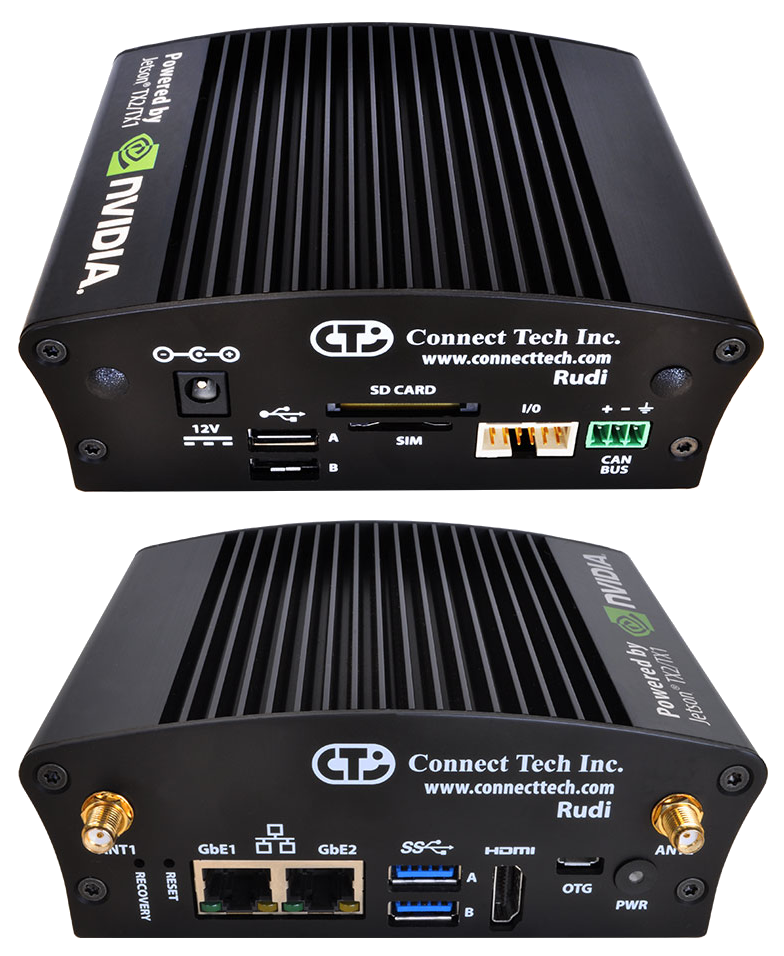

Connect Tech’s Rudi Embedded System holds a lot of power in a small package. Rudi is pre-integrated with the NVIDIA® Jetson™ TX1/TX2/TX2i supercomputer-on-module, providing 256 CUDA® Cores on the NVIDIA Pascal™ architecture.
The system has 8GB LPDDR4 memory, 4K video decode/encode, WiFi, Bluetooth, USB 3.0, CAN 2.0b, USB 2.0, and mSATA and miniPCIe expansion.
Contains 1 x miniPCIe slot with PCIe and USB connectivity (options for 3G/HD-SDI video capture, analog video capture, cellular module, GPS module, additional Ethernet, ADC, DAC, additional RS-232/485 ports, additional GPIO).
This small embedded system is ideal for deployable computer vision and deep learning applications.
| Technical specifications | |
| Compatibility | NVIDIA Jetson TX1/TX2/TX2i |
| GPU | 1.3 TFLOPS 256-core with NVIDIA Pascal™ architecture |
| CPU | 64-bit ARM® A57 CPUs |
| Operating System | Linux For Tegra R24.2 – Ubuntu 16.04 64-bit Preinstalled |
| Memory | 8GB RAM |
| WiFi | IEEE 802.11ac |
| Bluetooth | Bluetooth 4.0 (24Mbls) |
| Storage | 32GB eMMC, mSATA Expansion Capability |
| Ethernet | 2x Gigabit Ethernet (10/100/1000) RJ-45s |
| Display | 1x HDMI, Supports up to HDMI 2.0 UHD 4K [2160p] at 60Hz |
| USB | 1x USB OTG, 2x USB 2.0, 2x USB 3.0 |
| Serial | 2x 3-Wire UART Ports @ RS-232 levels |
| CAN | 1x CAN 2.0b Port |
| GPIO | 4-bit GPIO |
| Misc | I2C |
| User Expansion |
1 x miniPCIe Slot with PCIe & USB Connectivity (Options for 3G/HD-SDI Video Capture, Analog Video Capture, Cellular Module, GPS Module, Additional Ethernet, ADC, DAC, Additional RS-232/485 Ports, Additional GPIO) |
| Power Requirements | +12V DC Input Only (DC Barrel) |
| Dimensions | 135mm x 50mm x 105mm (5.31" x 1.97" x 4.13") |
| Mounting Option | Surface Edge Bracket Mounting Option |
| Weight | 0.703kg |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Model | Description |
| ESG503-01 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with DC Barrel Power Connector (North America) |
| ESG503-02 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with DC Barrel Power Connector (Europe) |
| ESG503-03 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with DC Barrel Power Connector (Israel) |
| ESG504‑01 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with DC Barrel Power Connector (North America) |
| ESG504-02 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with DC Barrel Power Connector (Europe) |
| ESG504-03 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with DC Barrel Power Connector (Israel) |
| ESG505-01 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG505-02 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Europe) |
| ESG505-03 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Israel) |
| ESG506‑01 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG506‑02 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Europe) |
| ESG506-03 | Rudi Embedded System with NVIDIA® Jetson™ TX1. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Israel) |
| ESG503-21 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with DC Barrel Power Connector (North America) |
| ESG503-22 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with DC Barrel Power Connector (Europe) |
| ESG503-23 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with DC Barrel Power Connector (Israel) |
| ESG503-24 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with DC Barrel Power Connector (Korea) |
| ESG503-25 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with DC Barrel Power Connector (China) |
| ESG504-21 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with DC Barrel Power Connector (North America) |
| ESG504-22 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with DC Barrel Power Connector (Europe) |
| ESG504-23 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with DC Barrel Power Connector (Israel) |
| ESG504-24 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with DC Barrel Power Connector (Korea) |
| ESG504-25 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with DC Barrel Power Connector (China) |
| ESG505-21 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG505-22 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Europe) |
| ESG505-23 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Israel) |
| ESG505-24 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Korea) |
| ESG505-25 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (China) |
| ESG506-21 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG506-22 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Europe) |
| ESG506-23 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Israel) |
| ESG506-24 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Korea) |
| ESG506-25 | Rudi Embedded System with NVIDIA® Jetson™ TX2. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (China) |
| ESG503-31 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Manual Power On/Off Switch, with DC Barrel Power Connector (North America) |
| ESG503-32 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Manual Power On/Off Switch, with DC Barrel Power Connector (Europe) |
| ESG504-31 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Auto-Power On Mode, with DC Barrel Power Connector (North America) |
| ESG504-32 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Auto-Power On Mode, with DC Barrel Power Connector (Europe) |
| ESG505-31 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG505-32 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Manual Power On/Off Switch, with 2 Pin Locking Terminal Power Connector (Europe) |
| ESG506-31 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (North America) |
| ESG506‑32 | Rudi Embedded System with NVIDIA® Jetson™ TX2i. Auto-Power On Mode, with 2 Pin Locking Terminal Power Connector (Europe) |
| MSG066 | Dual Band Antenna |
| MSG067 | Mounting Edge Bracket |
| CBG258 | MISC I/O Cable: 2×6 Pin (0.100″ pitch) to Flying lead (12″ length) |
| CBG219 | Rosie External Power Cable |
| CBG220 | Console Cable |
