The EPS-24G4X is a managed Ethernet switch based on Diamond’s EPSM-10GX4 switch module. The switch implements all features of the EPSM-10GX4 Ethernet switch module, including 24x 10/100/1000Mbps copper ports and 4x 10Gbps SFI ports accessed via SFP+ sockets. Depending on the ordering configuration, the switch contains embedded software supporting Layer 2 switching, Layer 3 routing/switching, and optional IEEE1588 PTP operation.
Two software packages are available, Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to support an external precision clock circuit and 1pps signal source provided by the carrier board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

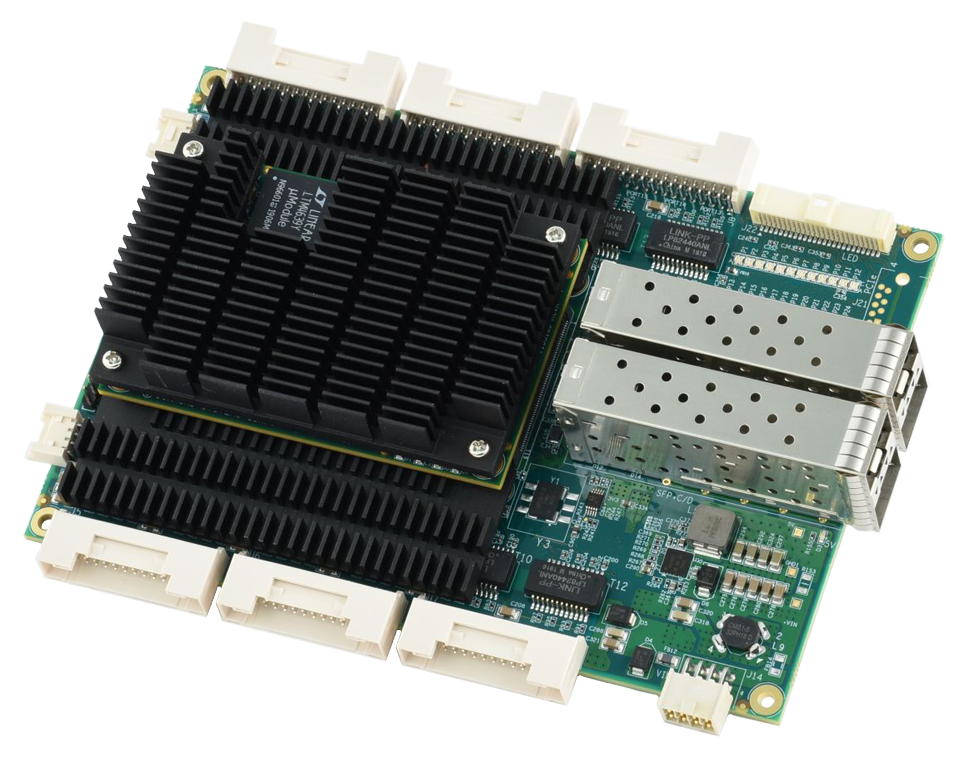

EPS-24G4X is designed specifically to meet the challenges of vehicle and other rugged environments, with its −40/+85°C operating temperature range, 50% thicker PCB, latching I/O connectors, and its MIL-STD-202G shock/vibration resistance. A wide-range input power supply with built-in transient protection provides compatibility with a range of industrial and vehicle power supplies. The board also forms the heart of Diamond’s SabreNet-24000 rugged Ethernet switch. Cooling for EPS-24G4X is provided via two heat sinks: a low-profile heat sink between the carrier board and the EPSM module and a taller heat sink for the EPSM module.
The EPS-24G4X is included as part of the EPSM-10GX4 development kit. Schematics and bill of materials are included to simplify the development of custom advanced Ethernet switching solutions based on the EPSM‑10GX4 module.
|Number of Ports||
24x 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance
4x 10G SFP+ ports
|Implementation||2-board solution: EPSM-10GX4 switch module provides core switch function and 12 PHYs; additional 12 PHYs and remaining circuitry implemented on carrier board|
|On-board Memory||4MB packet memory|
|Network Management||SNMP v1/v2c/v3; Web GUI and command line interface (CLI)|
|Serial Port||1 RS-232 port for host interface, 38400/N/8/1|
|Indicator lights||LEDs for each port indicate link status and speed|
|Dimensions||107 x 156mm / 4.213 x 6.142"|
Vin = 24VDC:
13W, all ports idle
20W, all 24 1G ports active
26W, all 24G ports and all 4 10G ports active
|Power Management||ActiPHY and PerfectReach power management reduce power for shorter cable lengths and shut down power to disconnected ports|
|Weight||389g / 13.7oz|
Environmental and physical specifications
|Operating Temperature||-40 to +80°C|
|EPS-24G4X||Epsilon Ethernet Switch, 24 10/100/1000 Copper Ports, 4 10G SFP+ ports, WebStaX Layer 2+ Software|
|EPS-24G4X-L3||Epsilon Ethernet Switch, 24 10/100/1000 Copper Ports, 4 10G SFP+ ports, IStaX Layer 3 Software|
|EPS‑24G4X‑1588||Epsilon Ethernet Switch, 24 10/100/1000 Copper Ports, 4 10G SFP+ ports, IStaX Layer 3 Software, IEEE1588 PTP|
|CK‑EPS24G2X‑01||Cable Kit, EPS24G2X|
