Stevie carrier for NVIDIA Jetson AGX Xavier
  • Details
  • Specification
  • Order information
  • Use together with Ziggy or Jethro
  • Adds M.2 and camera module mount
  • Dimensions: 100 x 87mm (same as Xavier)

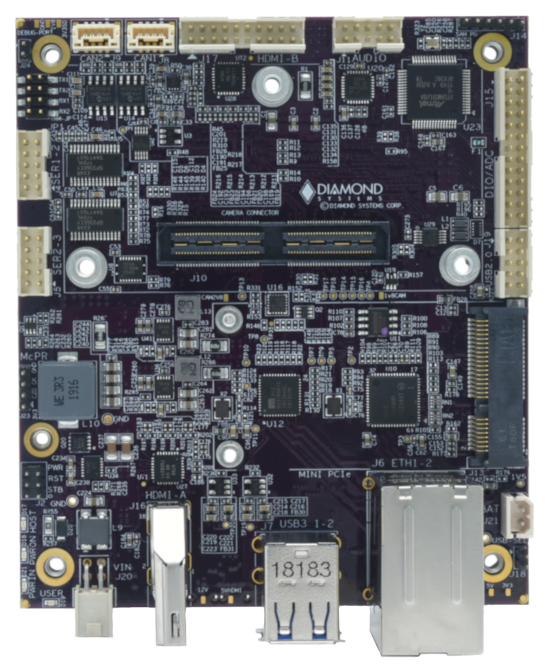

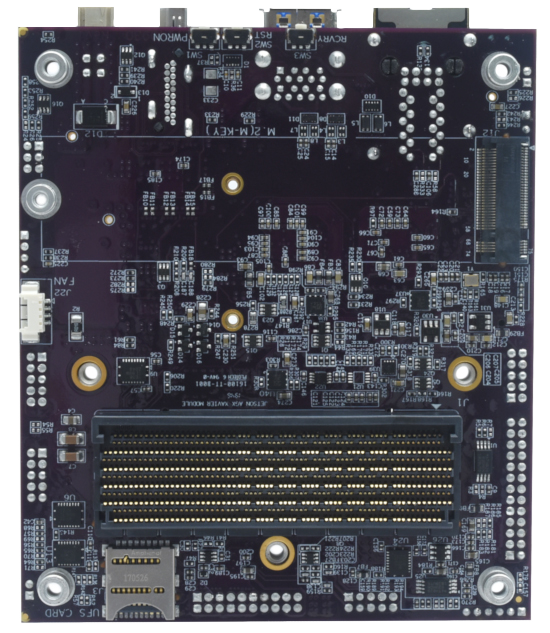

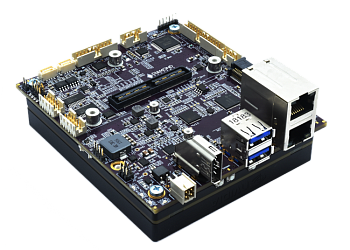

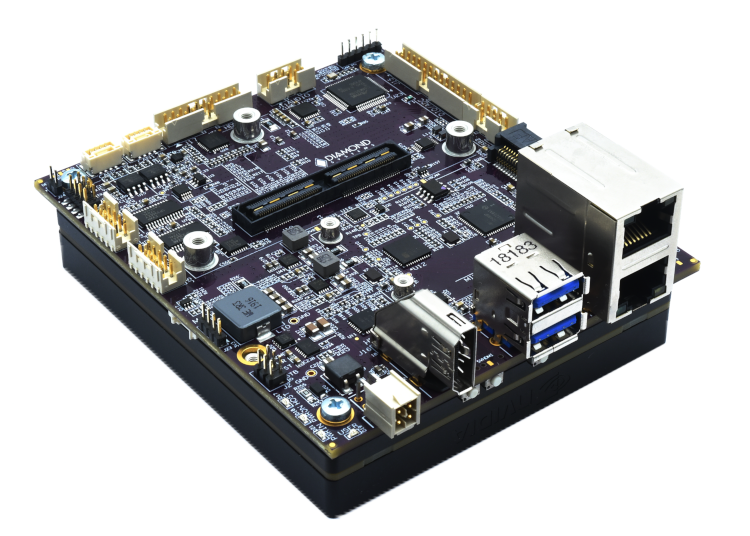

Stevie offers a compact, low-cost, feature-packed carrier board solution for the NVIDIA Jetson AGX Xavier computer module. STEVIE measures 92×105mm (~ 3.5×4.0″), just slightly larger than the AGX Xavier module (87×100mm). This small outline enables Stevie to provide the maximum amount of I/O and support full-size 2280 M.2 modules in the smallest possible size.

Stevie utilizes the NVIDIA Jetson AGX Xavier embedded computer module to deliver unmatched performance for AI, machine learning, image processing, and other compute-intensive tasks. The Xavier module delivers up to 30 TeraOps in performance (3×1013 operations per second) at a maximum power dissipation of 30 watts. Xavier also offers scalable performance for applications requiring lower overall power consumption of 10 or 15 watts. The module runs at 32 TOPs on a 512-core Volta GPU with Tensor Cores and accelerators, enabling high-performance AI-powered autonomous machines like never before. At 87×100mm (3.4×3.9″) it is slightly bigger than the other Jetson modules.

The most popular I/O is located along the front edge of the board using commercial style panel I/O connectors. This facilitates installation in an enclosure with fewer internal cables, helping to further reduce overall system cost and size.

PCIe Minicard and M.2 sockets enable the installation of flashdisk and I/O expansion module to customize Stevie to your particular application requirements.

Stevie is ideal for NVIDIA Jetson Xavier applications in typical commercial / industrial environments requiring low cost and compact size. For mobile and outdoor applications requiring a higher degree of ruggedness or more advanced I/O, see Elton carrier with PCIe/104 I/O expansion.

Data Acquisition

A built-in data acquisition circuit provides 12-bit A/D up to 1MSPS, 12-bit D/A, and 3.3V GPIO. Diamond’s free C-language programming library simplifies application development, while a GUI control panel offers convenient control and monitoring of real-world processes as well as ready-to-run data logging capability.

Technical specifications
Size: 3.5" x 4.00" / 92mm x 105mm
Input voltage 9-20VDC

On-board features

I/O breakout from Xavier board: 2x USB 3.1
2x USB 2.0
2x Gigabit Ethernet
4x RS-232/RS485/RS422
2x CAN
SAM DAQ circuit: 6xADC input to SAM controller and 2x DAC via SAM controller
Digital IOs: 13 Digital IO via SAM controller

Socketed features

Socketed I/O Camera module connector with 4x4 CSI lanes supporting up to 8x 2-lane CSI cameras
UFS flash socket + Micro SD
M.2 PCIe x4 socket (2280 size)
1mPCIe socket
Model Description
STV-BB01 Stevie carrier board for Jetson AGX Xavier computer module
CK-STV-01 CK-STV-01 cable kit
